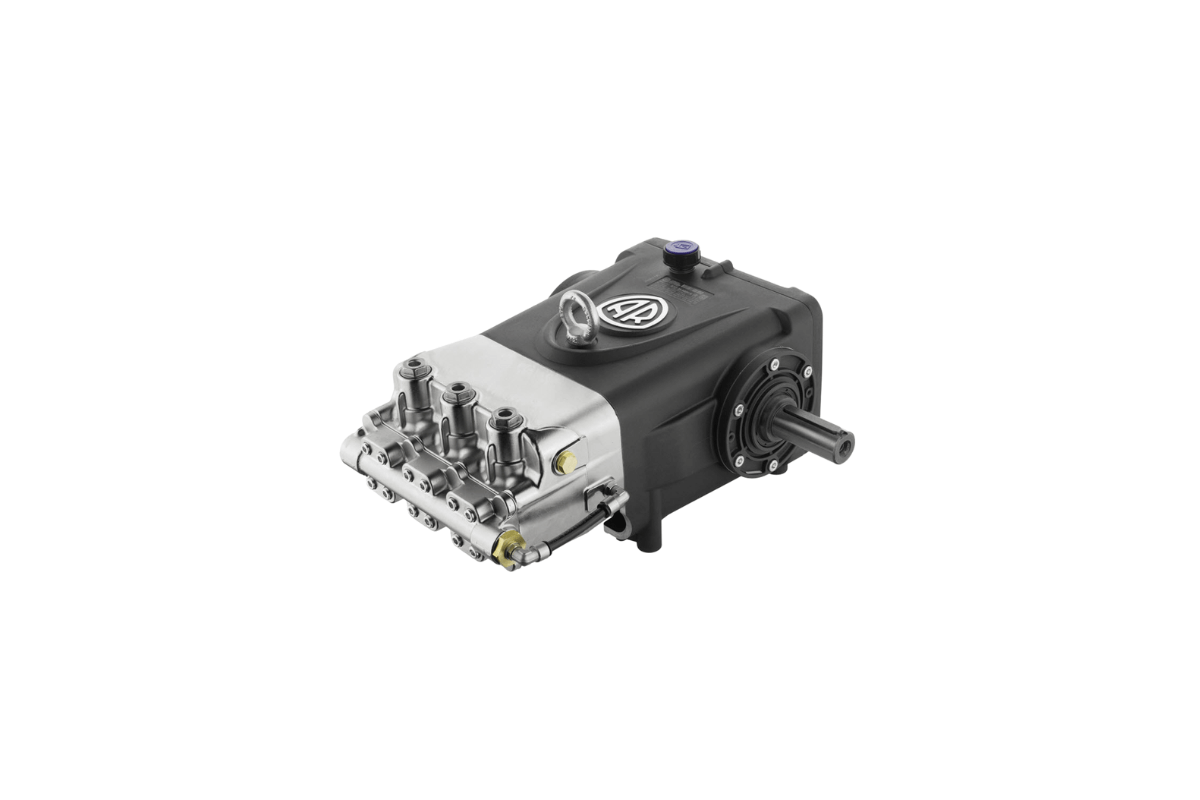

AR RTD Series by Annovi Reverberi

AR RTD Series is built for industrial power on a monumental scale. Designed to push the boundaries of PSI and GPM performance, these pumps combine raw power, oversized construction, and engineering precision to meet the demands of the most extreme applications in the world.
With a 35 mm solid shaft, 7+ liters of oil capacity, and oversized piston/valve systems, the RTD is capable of producing flows up to 200 L/min (52.6 GPM) and pressures as high as 4350 PSI. The result is a pump family engineered for hydro-demolition, steel cutting, mining, power plant service, and municipal water jetting.
Where reliability, serviceability, and absolute uptime matter most, the RTD is trusted worldwide.

Performance at a Glance

Understanding the AR RTD Series

• Flow Range: 21 – 52.6 GPM (79.5 – 200 L/min)
• Pressure Range: 1,300 – 4,350 PSI
• Power Range: 80 – 200 HP (depending on model)
• RPM: 1000
• Bore Diameter: 32–44 mm
• Stroke: 32–44 mm
• Oil Capacity: 110 oz (SAE30)
• List Price: $7,400.79 – $7,731.28

AR RTD Series Key Features

• Choice of Brass or Nickel-Plated Brass Head → Excellent durability, corrosion resistance, and long-term strength.
• Massive Oil Capacity (110 oz) → Provides cooling and lubrication for sustained industrial operation.
• Bronze Connecting Rods → Reinforced for extreme torque and load handling.
• Oversized Pistons & Valves → Designed for massive volumes and pressures.
• Service-Friendly Modularity → Full support with AR’s industrial repair kits.
• SX 180° Rotated Shaft Options → Flexible integration into custom systems.
• Nickel-Plated Cast Iron Head (Optional) → For the most aggressive operating environments.

Model Breakdown

RTD80-300N

• Flow: 21.0 GPM (79.5 L/min)
• Pressure: 4,350 PSI
• Power: ~65 HP
• Stroke: 35 mm
• Price: $7,400.79

RTD100-200N

• Flow: 25.0 GPM (94.6 L/min)
• Pressure: 3,000 PSI
• Power: ~49 HP
• Stroke: 32 mm
• Price: $7,400.79

RTD100-200SX

• Same as above, but with 180° rotated shaft configuration for easier system integration.
• Price: $7,400.79

Exploring the AR RTD Series Features

RTD130-160N

• Flow: 32.1 GPM (121.1 L/min)
• Pressure: 2,300 PSI
• Stroke: 42 mm
• Price: $7,400.79

RTD130-200N

• Flow: 34.3 GPM (130.5 L/min)
• Pressure: 2,000 PSI
• Stroke: 42 mm
• Price: $7,731.28

RTD160-130N

• Flow: 40.0 GPM (151.4 L/min)
• Pressure: 1,300 PSI
• Stroke: 44 mm
• Price: $7,400.79

RTD200-100N

• Flow: 52.6 GPM (200 L/min)
• Pressure: 1,450 PSI
• Stroke: 48 mm
• Nickel-plated cast iron head option.
• Price: $7,366.66

Applications

The RTD Series AR RTD Series is designed for global industries that need extreme durability and maximum throughput.

• Hydro-Demolition & Concrete Cutting → Removing concrete surfaces with ultra-high-pressure water jets.
• Mining & Quarrying → Heavy-duty cleaning and processing.
• Steel Production & Foundries → Furnace cleaning, slag removal, and descaling.
• Oil & Gas → Rig sanitation, hydrostatic testing, and wellhead cleaning.
• Municipal Systems → Bridge maintenance, dam cleaning, graffiti removal, and wastewater treatment.
• Shipyards & Marine → Hull cleaning, barnacle blasting, and dock sanitation.
• Power Generation → Boiler tube cleaning, cooling tower maintenance, turbine support.
• Construction & Infrastructure → Dust suppression, tank cleaning, and industrial washdown.

Service & Maintenance
Repair Kits:

• AR43614 – Valves (x6) – $501.42
• AR43623 – Pistons Ø 36 (x3) – $424.79
• AR43624 – Pistons Ø 40 (x3) – $472.38
• AR43797 – Pistons Ø 32 (x3) – $538.00
• AR43625 – Water Seals Ø 36 (x3) – $395.50
• AR43626 – Water Seals Ø 40 (x3) – $451.56
• AR43798 – Water Seals Ø 32 (x3) – $559.28
• AR43799 – Piston Guides Ø 32 (x3) – $457.60
• AR43627 – Piston Guide Kit Ø 36 – $644.91
• AR43628 – Piston Guide Kit Ø 40 – $644.91
• AR43616 – Oil Seals (x6) – $119.98
• AR46519 – Hot Water Seals Ø 32 (x3) – $1,744.24
• AR47434 – Hot Water Seals Ø 40 (x3) – $1,584.39

AR RTD Series – Special Parts / Kits:

• AR46108 – Plug Kit (Inlet/Outlet) – $141.43
• AR645107 – Oil SAE30 (1.07 gal) – $183.60
• AR3662430 – Grease Zerk for shaft – $8.00
• AR46110 – Inlet/Outlet Plug Kit – $141.43
• AR43621 – Rail Kit 3.576” – $164.76

Benefits to Operators

• Handles Massive Flow → Up to 52.6 GPM.
• Wide PSI Range → From 1,300 to 4,350 PSI.
• Long Service Life → Built with oversized bearings, pistons, and cooling oil systems.
• Flexible Integration → 180° shaft rotation available (SX models).
• Fully Supported → With AR repair kits and global parts availability.
• Confidence in Extreme Duty → Suitable for operations where pump failure is not an option.

Why Choose the RTD Series?

The RTD https://www.annovireverberi.it/en/industry/series418/rtd-130160-cod-26105 is for operators who demand the maximum from their equipment. While other pumps may stall, overheat, or break down, the RTD is built to deliver thousands of hours of reliable service under brutal conditions.

• Perfect for global contractors, industrial plants, and municipal systems.
• Designed to integrate into rigid skid frames, trailers, and fixed installations.
• Engineered to outlast competing pumps with oversized construction and premium materials.

Conclusion

The AR RTD Series is the industrial titan in AR’s lineup — bigger, heavier, stronger, and designed to perform where other pumps fail.

With flows over 50 GPM and pressures up to 4,350 PSI, this AR RTD Series is the solution for industries that rely on maximum cleaning power and long-term uptime.

If you need industrial-grade durability and extreme flow capacity, the RTD is the pump of choice.

For additional industry standards and technical resources, visit: https://www.pumps.org/
