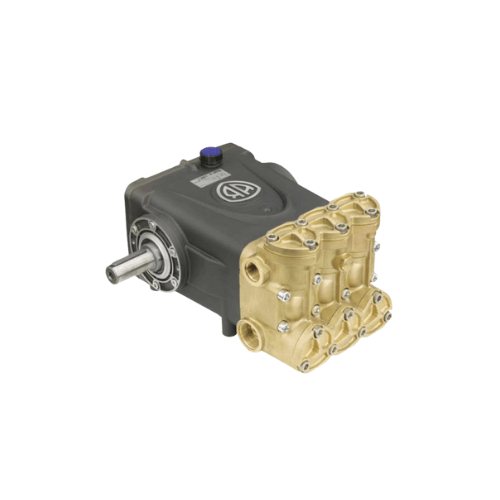

RTD100-200SX | 26.4 GPM 2900 PSI Pump 1000 RPM 35mm Left-Hand

RTD100-200SX Annovi Reverberi Industrial Plunger Pump | 25 GPM | 2900 PSI | 1000 RPM | 180° Rotated Shaft

The RTD100-200SX is the 180° rotated-shaft configuration of Annovi Reverberi’s RTD100-200 industrial triplex pump, engineered for reverse-drive and mirrored installations in custom skids, trailer rigs, and dual-pump systems. Rated at 25 GPM and 2900 PSI at a slow 1000 RPM, the SX shares the base pump’s heavy-duty internals — forged brass manifold, ceramic plungers, and stainless valves — while its 35mm rotated shaft (commonly called a left-hand shaft) enables layouts a standard-orientation pump cannot serve.

RTD100-200SX Key Specifications

Flow, Pressure & Power at a Glance

• Flow Rate: 25 GPM (94.6 l/min)
• Pressure Rating: 2900 PSI (200 bar)
• Speed: 1000 RPM — slow-speed operation for extended service life
• Rated Power: 49.8 EBHP at the rated duty point
• Shaft Type: 35mm solid keyed shaft, 180° rotated (left-hand) orientation
• Head / Manifold: Forged brass
• Valves: Stainless-steel inlet and discharge valves
• Plungers: Ceramic plungers for wear and thermal resistance
• Rods & Bearings: Oversized bronze connecting rods with reinforced bearings
• Max Water Temp: 140°F inlet
• Inlet / Discharge: 1-1/2″ inlet thread, 1″ discharge thread
• Oil Capacity: 110 oz

What the 180° Rotated Shaft Does

Reverse-Drive and Mirrored Mounting

• The 180° rotated shaft — also known in the field as a left-hand shaft — reverses the drive orientation relative to the standard RTD100-200.
• This lets integrators build mirrored skids, position two pumps back-to-back in dual-pump rigs, and match reverse-drive couplings or belt/pulley layouts without re-plumbing around a fixed shaft side.
• Flow, pressure, and internals are identical to the base pump — only the shaft orientation changes, so performance and parts remain fully cross-compatible.

What’s Included

• Factory pre-filled break-in oil
• Oil sight glass and vented dipstick
• Factory test report and performance verification
• User manual and exploded schematic
• Commercial warranty with U.S.-based parts and support

Design & Materials

Rugged Industrial Construction

• Forged brass manifold for strength and corrosion resistance
• Ceramic plungers to resist wear, heat, and chemical exposure
• Stainless-steel valves for reliable sealing under heavy duty
• Oversized bronze connecting rods and reinforced bearings for continuous operation
• 35mm rotated (left-hand) keyed shaft for reverse-drive and mirrored mounting

How It Works

• The triplex plunger arrangement delivers steady, low-pulsation flow at 25 GPM.
• Slow 1000 RPM operation reduces heat, vibration, and component stress for longer service life.
• When the trigger wand is released, the matched unloader or regulator and bypass plumbing protect the pump from overpressure and heat buildup.

Benefits

• Reverse-drive compatibility: the 180° rotated shaft enables mirrored and dual-pump layouts a standard pump cannot serve.
• High-volume cleaning: 25 GPM supports large-scale washdown and rapid rinsing across big surfaces.
• Continuous-duty reliability: the slow-speed 1000 RPM design and heavy-duty internals extend service life under long shifts.
• Thermal and chemical resilience: ceramic plungers and stainless valves handle elevated inlet temperatures and aggressive detergents.
• Parts cross-compatibility: identical internals to the base RTD100-200 keep rebuild kits and spares common across both orientations.

Typical Applications

• Custom skid and trailer systems requiring mirrored pump orientation
• Dual-pump rigs positioning two pumps back-to-back
• Municipal sanitation fleets and depot wash stations
• Mining and heavy equipment washdown
• Waste management and transfer station cleaning
• Industrial plant and tank-farm washdown

Installation & Integration

• Mount the 35mm rotated (left-hand) keyed shaft to suit reverse-drive couplings or belt/pulley drives.
• Use properly rated thermal relief and bypass plumbing for continuous-duty applications.
• Provide adequate inlet supply and filtration to prevent cavitation and prolong seal life.
• Follow factory torque and alignment specs when coupling to drives or motors.

Service & Reliability

• Factory-tested and shipped with break-in oil for immediate commissioning.
• Routine inspection points: inlet screens, valve condition, plunger wear, and oil level and quality.
• Rebuild kits, replacement valves, and parts are available through the AR North America service network and are shared with the standard-shaft pump.

The RTD100-200SX is a specialty industrial plunger pump for operators who need reverse-drive flexibility with high-volume washdown capability. With 25 GPM at 2900 PSI, a 35mm 180° rotated shaft, and heavy-duty internals, it is engineered for continuous-duty, custom-skid, and mirrored installations where durability and uptime are critical.
