RTD100-200 | 26.4 GPM 2900 PSI Pump 1000 RPM 35mm Industrial

RTD100-200 Annovi Reverberi Industrial Plunger Pump | 25 GPM | 2900 PSI | 1000 RPM

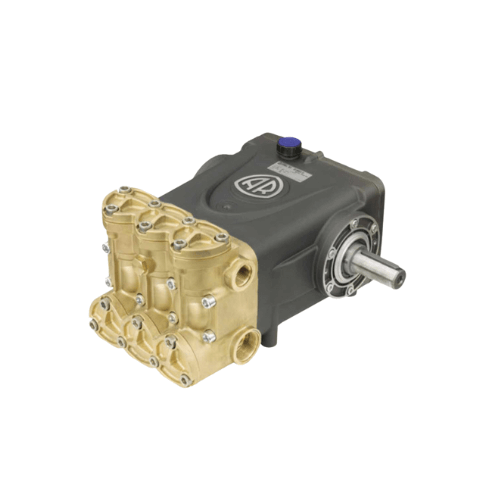

The RTD100-200 is a heavy-duty Annovi Reverberi triplex plunger pump engineered for continuous-duty industrial cleaning systems. Rated at 25 GPM and 2900 PSI at a slow 1000 RPM, the RTD100-200 pairs high-volume output with the low-speed longevity that skid builders, fleet wash operations, and municipal sanitation crews depend on. A 35mm solid keyed shaft, forged brass manifold, and ceramic plungers make the RTD100-200 a proven workhorse for demanding washdown duty.

RTD100-200 Key Specifications

Flow, Pressure & Power at a Glance

• Flow Rate: 25 GPM (94.6 l/min)
• Pressure Rating: 2900 PSI (200 bar)
• Speed: 1000 RPM — slow-speed operation for extended service life
• Rated Power: 49.8 EBHP at the rated duty point
• Shaft Type: 35mm solid keyed shaft
• Head / Manifold: Forged brass
• Valves: Stainless-steel inlet and discharge valves
• Plungers: Ceramic plungers for wear and thermal resistance
• Rods & Bearings: Oversized bronze connecting rods with reinforced bearings
• Max Water Temp: 140°F inlet
• Inlet / Discharge: 1-1/2″ inlet thread, 1″ discharge thread
• Oil Capacity: 110 oz

What’s Included

• Factory pre-filled break-in oil
• Oil sight glass and vented dipstick
• Factory test report and performance verification
• User manual and exploded schematic
• Commercial warranty with U.S.-based parts and support

RTD100-200 Design & Materials

Rugged Industrial Construction

• Forged brass manifold for strength and corrosion resistance
• Ceramic plungers to resist wear, heat, and chemical exposure
• Stainless-steel valves for reliable sealing under heavy duty
• Oversized bronze connecting rods and reinforced bearings for continuous operation
• 35mm solid keyed shaft for direct-drive coupling or belt/pulley drives

How the RTD100-200 Works

• The triplex plunger arrangement delivers steady, low-pulsation flow at 25 GPM.
• Slow 1000 RPM operation reduces heat, vibration, and component stress for longer service life.
• When the trigger wand is released, the matched unloader or regulator and bypass plumbing protect the RTD100-200 from overpressure and heat buildup.

Benefits

• High-volume cleaning: 25 GPM supports large-scale washdown and rapid rinsing across big surfaces.
• Continuous-duty reliability: the slow-speed 1000 RPM design and heavy-duty internals extend service life under long shifts.
• Thermal and chemical resilience: ceramic plungers and stainless valves handle elevated inlet temperatures and aggressive detergents.
• Easy maintenance: the oil sight glass and vented dipstick simplify routine checks and servicing.
• Flexible integration: the 35mm solid shaft suits direct-drive couplings and belt/pulley drives in custom skids.

Typical Applications

• Custom skid and trailer-mounted pressure washing systems
• Municipal sanitation fleets and depot wash stations
• Mining and heavy equipment washdown
• Waste management and transfer station cleaning
• Industrial plant and tank-farm washdown
• Food and beverage processing areas requiring heavy-duty wash cycles

RTD100-200 Installation & Integration

• Mount the 35mm keyed shaft to suit direct-drive couplings or belt/pulley drives.
• Use properly rated thermal relief and bypass plumbing for continuous-duty applications.
• Provide adequate inlet supply and filtration to prevent cavitation and prolong seal life.
• Follow factory torque and alignment specs when coupling to drives or motors.

Service & Reliability

• Factory-tested and shipped with break-in oil for immediate commissioning.
• Routine inspection points: inlet screens, valve condition, plunger wear, and oil level and quality.
• Rebuild kits, replacement valves, and parts are available through the AR North America service network.

The RTD100-200 is an industrial-grade triplex plunger pump for operators who need high-volume washdown capability with continuous-duty durability. With 25 GPM at 2900 PSI, a 35mm solid shaft, and heavy-duty internals, the RTD100-200 is engineered for custom-skid, fleet, and municipal installations where uptime and reliability are critical.
