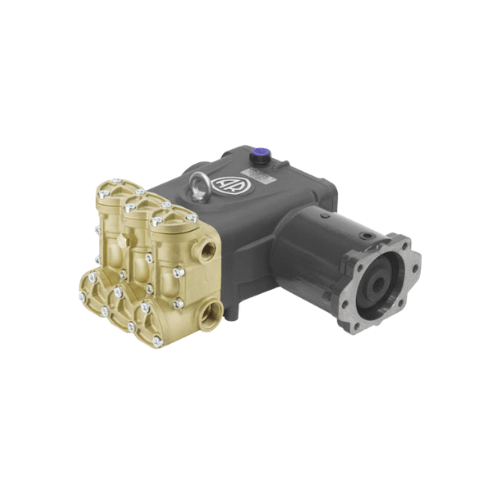

• HYD-RTD130.200HNB-DD is a ready-to-integrate hydraulic drive package that couples a
  low-speed/high-torque (LSHT) hydraulic motor directly to an Annovi Reverberi
  RTD130.200HNB triplex plunger pump on a rigid, alignment-stable base.
• Direct spline drive eliminates belts and bulky guards while keeping shaft centerlines true,
  protecting bearings and seal packs and shrinking footprint for skids, plant carts, and work trucks.
• Sized for demanding industrial cleaning and process washdown, the RTD130.200 platform is commonly
  selected for about 130 L/min (≈34 GPM) at 200 bar (≈2900 PSI) at 1000 RPM—always
  select nozzle orifices for the exact working point and never overspeed the pump.
• Manufactured in Modena, Italy by Annovi Reverberi, global leader in
  high-pressure pump quality since 1958.
• HNB nickel-plated brass head adds elevated corrosion resistance in wet, salty,
  or chemically aggressive environments.

Hydraulic Motor & Drive Details

• HYD-RTD130.200HNB-DD Accepts a displacement-matched LSHT hydraulic motor (brand varies) with splined
  output shaft and industry-standard pilot—verify spline and pilot dimensions
  (e.g., SAE-B or SAE-C) to match the pump adapter.
• Typical pressure/return ports are SAE-12 ORB (3/4″) with an auxiliary
  SAE-8 ORB (1/2″) case drain when required by the motor build.
• Observe A/B port orientation for correct rotation; route the case drain above reservoir oil level
  to prevent aeration; size hoses generously and respect bend radii to avoid restriction.
• Protect the circuit with upstream reliefs rated for at least 200 bar service and
  return filtration in the 10–25 μm range with an adequate β-rating.
• Size the reservoir for heat rejection using the rule of thumb
  2–3× total system flow, and add an oil cooler for hot climates, prolonged bypass,
  or continuous-duty operation.

Water-Side Connections

• HYD-RTD130.200HNB-DD RTD series manifolds use generous high-flow ports: typical configuration is a
  1-1/2″ F-BSPP inlet and 1″ F-BSPP discharge
  (adapters to NPT are readily available).
• Keep the suction run short, straight, and oversize from a flooded feed; use a coarse inlet
  strainer and anti-collapse suction hose to preserve volumetric efficiency and prevent cavitation.
• Use a correctly sized unloader valve to hold working pressure while safely
  bypassing flow to tank.
• Add a high-pressure relief valve and a glycerin-filled gauge for
  commissioning and diagnostics.
• Include a thermal relief on the bypass loop to protect seals during extended
  gun-closed or recirculation periods.

HYD-RTD130.200HNB-DD Integration Checklist

• Verify that motor spline and pilot match the pump adapter before assembly.
• Size motor displacement so the pump reaches the required RPM under load at the chosen pressure and
  hydraulic flow.
• Confirm that the prime mover and valve stack can supply hydraulic flow with margin for other
  actuators on the circuit.
• Set upstream reliefs accurately, verify filtration and cooling capacity, and provide a case drain
  if the motor specifies one (route above tank oil level).
• Select nozzle orifices for the desired flow/pressure and plan a low-pressure recirculation path
  for prolonged bypass conditions.
• Schedule periodic torque checks on head, manifold, base, and coupling fasteners to maintain
  alignment and clamp load.

HYD-RTD130.200HNB-DD Typical Applications

• Mobile wash skids on service trucks and trailers where hydraulic power is already available.
• Municipal fleet and sanitation vehicles, wastewater and public works equipment.
• Marine and tug-boat washdown, aquaculture, and dock-side cleaning.
• Food & beverage plant sanitation and packaging lines
  (always observe local hygienic standards).
• Conveyor and parts-cleaning cells, plant carts, and process washdown duty.
• Heavy-equipment yards, rental fleets, agriculture and ranch equipment wash, and contractor rigs.

Ownership, Warranty & At-a-Glance Specs

• HYD-RTD130.200HNB-DD Pump ships from the factory with crankcase oil installed plus an easy-to-read sight glass and
  vented dipstick for proper fill and breathing under thermal expansion.
• Follow Annovi Reverberi lubricant recommendations and service intervals for the best results and
  longest life.
• Warranty: AR pump covered by a 5-year limited, conditional warranty;
  proper hydraulic and water-side installation, correct filtration and lubrication, and operation
  within published limits are required (seals and valves are consumables).
• Manufacturer & origin: Annovi Reverberi, Modena, Italy—high-pressure pump
  leader since 1958.
• Hydraulic motor: LSHT, splined direct-drive, brand varies; pressure/return
  typically SAE-12 ORB, case drain typically SAE-8 ORB (verify selected motor).
• Pump ports: 1-1/2″ F-BSPP inlet and 1″ F-BSPP outlet; adapters to NPT available.
• Core advantages: compact spline direct drive, no belt dust, reduced alignment
  drift, predictable hose routing, and fast single-tech service access.
