RTDSS80-300N | 21 GPM 4350 PSI Pump Food-Grade 420 SS Head

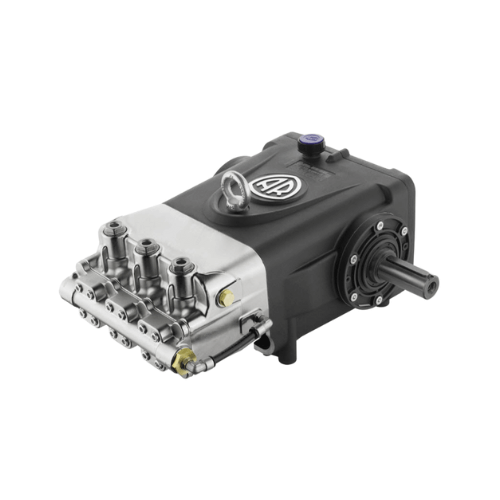

RTDSS80-300N – 21 GPM, 4,350 PSI Sanitary-Grade Stainless Steel Plunger Pump

Overview

• The RTDSS80-300N Annovi Reverberi pump is a sanitary-grade, industrial-duty triplex plunger pump
  engineered for high-pressure, continuous-duty cleaning in the harshest environments.
• Delivers 21 GPM at 4,350 PSI while running at 1,000 RPM, combining high pressure,
  reliable flow, and slow-speed operation to reduce wear, heat, and vibration.
• Built around an AISI 316 stainless-steel head, it meets the strict requirements of
  food processing, pharmaceutical, and chemical industries where hygiene and corrosion resistance are essential.
• High-density ceramic plungers, stainless-steel valves, oversized bearings, and bronze connecting rods
  are paired for maximum durability in nonstop, chemically aggressive environments.
• Every pump is factory-tested and shipped with pre-filled break-in oil, an oil sight glass,
  vented dipstick, schematic, and user manual, and is backed by a 5-year commercial-use warranty
  with U.S.-based service support.

Key Specifications of RTDSS80-300N

• Flow Rate: 21 GPM
• Pressure Rating: 4,350 PSI
• Speed: 1,000 RPM (slow-speed design reduces wear, heat, and vibration)
• Shaft Type: 35 mm solid keyed shaft for industrial integration
• Head / Manifold: AISI 316 stainless steel for sanitary and chemical environments
• Plungers: High-density ceramic plungers for durability and thermal stability
• Bearings & Rods: Oversized bearings with bronze connecting rods for continuous-duty operation
• Design: Sanitary-grade construction for high-corrosion and high-chloride applications
• Maintenance Features: Oil sight glass, vented dipstick, and pre-filled break-in oil included
• Warranty: 5-year commercial-use warranty with U.S.-based technical support

What’s Included with the Pump RTDSS80-300N

• Pre-filled break-in oil for safe and immediate startup.
• Oil sight glass for fast, reliable monitoring of crankcase oil level and condition.
• Vented dipstick to regulate crankcase pressure and simplify oil changes and maintenance.
• User manual and schematic for installation guidance and long-term service reference.
• Factory test report verifying flow and pressure performance to rated specifications.
• 5-year commercial-use warranty backed by U.S.-based service centers and parts support.

How the RTDSS80-300N Works

• Utilizes a triplex plunger design to produce 21 GPM at 4,350 PSI with smooth,
  consistent output for demanding sanitation and washdown applications.
• Operates at 1,000 RPM, a slower speed than many conventional pumps, which
  reduces mechanical stress, heat generation, and vibration for extended component life.
• The AISI 316 stainless-steel head provides advanced protection against aggressive detergents,
  caustic chemicals, saltwater, and sanitizing agents in hygiene-critical environments.
• Ceramic plungers minimize wear during continuous duty, while
  oversized bearings and bronze connecting rods maintain stability under heavy load cycles.
• Hygienic, corrosion-resistant construction makes the RTDSS80-300N ideal where contamination control,
  chemical resistance, and cleaning efficiency are paramount.

Benefits of the RTDSS80-300N

• Sanitary-grade design: AISI 316 stainless-steel head supports hygienic standards in food,
  pharma, and high-purity chemical environments.
• High-pressure performance: 21 GPM at 4,350 PSI delivers the power required for industrial sanitation and heavy washdown.
• Slow-speed longevity: 1,000 RPM operation reduces wear, heat, and vibration to maximize service life.
• Chemical and caustic resistance: engineered to withstand harsh detergents, caustic cleaners,
  and high-chloride washdowns.
• Durable internals: ceramic plungers, stainless valves, oversized bearings, and bronze rods
  extend pump lifespan under continuous duty.
• Continuous-duty capable: rated for nonstop operation in high-cycle facilities where uptime is critical.
• Peace of mind: 5-year commercial-use warranty with U.S.-based support helps protect your investment.

Typical Use Cases

• Food processing plants: USDA-compliant washdowns, grease removal, and sanitation of equipment and production areas.
• Pharmaceutical facilities: contamination-sensitive cleaning cycles where hygiene and material compatibility are essential.
• Chemical manufacturing plants: systems exposed to caustic and aggressive cleaning agents.
• Meatpacking & poultry operations: high-pressure hot-water and chemical sanitation for kill floors, conveyors, and workspaces.
• Tank storage & CIP systems: ideal for automated clean-in-place of tanks, piping, and vessels.
• Municipal & industrial washdown: sanitation, degreasing, and heavy cleaning in high-use facilities.
• Specialized cleaning: fire department vehicles, pipe flushing, chemical transfer-related cleaning, and more.

Why Choose the RTDSS80-300N

• Premium choice for operators who require maximum chemical resistance, hygienic construction,
  and high-pressure cleaning power in a single pump package.
• 21 GPM at 4,350 PSI provides the flow and force needed for demanding sanitation and
  high-pressure washdown across large facilities.
• AISI 316 stainless-steel head supports compliance in industries with strict cleanliness and corrosion-resistance requirements.
• Slow-speed 1,000 RPM design reduces stress on components, extending service life and improving uptime.
• Ceramic plungers, stainless valves, bronze rods, and oversized bearings are engineered to withstand
  the most challenging industrial environments and high-cycle duty.
• Shipped factory-tested, pre-filled with oil, and supported by a 5-year commercial-use warranty,
  the RTDSS80-300N delivers a dependable, long-term solution for hygiene-critical operations.

 Summary

• The RTDSS80-300N Annovi Reverberi pump delivers 21 GPM at 4,350 PSI with a
  1,000 RPM slow-speed design and an AISI 316 stainless-steel head, making it a
  top-tier sanitary-grade solution for food processing, pharmaceutical, and chemical plants.
• With ceramic plungers, stainless-steel valves, oversized bearings, and bronze connecting rods,
  it is engineered for continuous-duty, high-pressure washdown in caustic and high-chloride environments.
• Factory-tested and shipped with pre-filled oil, sight glass, vented dipstick, manual, and schematic,
  and backed by a 5-year commercial-use warranty, the RTDSS80-300N is the ideal sanitary-grade
  industrial plunger pump for operators who demand hygienic, chemical-resistant, and long-lasting performance.
