RTD-HW80-300H | 21 GPM 4350 PSI Hot Water Pump Nickel Head

RTD-HW80-300H Hot-Water Industrial Plunger Pump Overview

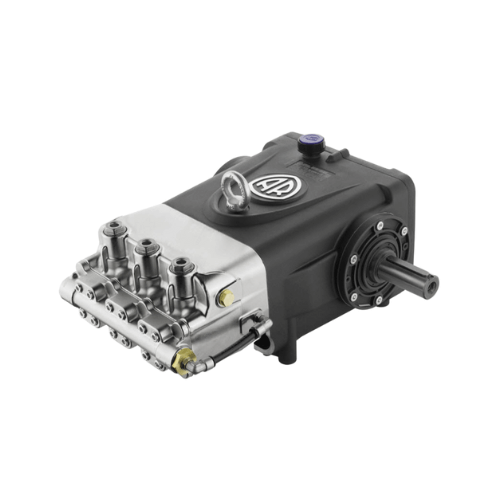

The RTD-HW80-300H Annovi Reverberi pump is a hot-water-rated, industrial-duty plunger pump
engineered for high-demand cleaning applications. Delivering 21 GPM at
4,350 PSI and operating at 1,000 RPM, it is purpose-built
for systems requiring both high pressure and elevated water temperatures to remove grease, oil,
and heavy contaminants.

Key Performance Features

• Hot-water capability up to 180°F inlet temperature
• Slow-speed 1,000 RPM for reduced wear and longer lifespan
• Nickel-plated head for corrosion and scale resistance
• High-temperature industrial-grade seals
• Ceramic plungers for thermal durability
• Heavy-duty 35mm solid keyed shaft
• Stainless steel valves for long-term reliability

Key Specifications

• Flow Rate: 21 GPM
• Pressure Rating: 4,350 PSI
• Speed: 1,000 RPM
• Temperature Rating: 180°F max inlet
• Head / Manifold: Nickel-plated
• Shaft Type: 35mm solid keyed shaft
• Plungers: Ceramic
• Seals & Valves: High-temp seals, stainless valves
• Maintenance Features: Oil sight glass, vented dipstick, pre-filled break-in oil
• Warranty: 5-year commercial-use coverage

What’s Included

• Pre-filled break-in oil
• Oil sight glass
• Vented dipstick
• High-temperature seals
• Factory pressure/flow test report
• User manual & installation schematic
• 5-year commercial warranty

How the RTD-HW80-300H Works

The pump uses a triplex plunger design, driven at a slow and efficient
1,000 RPM. Three precision ceramic plungers generate 21 GPM at 4,350 PSI,
ensuring consistent high-pressure output during continuous-duty cycles.

Engineering Advantages

• Nickel-plated head resists corrosion, scale, and chemical wear—especially
  important in hot-water systems.
• High-temp seals and stainless steel valves ensure long-term durability under
  180°F inlet temperatures.
• Ceramic plungers maintain structural integrity under thermal stress.

Hot-Water Cleaning Benefits

• Faster removal of grease, oils, and fats
• Improved sanitation for food-processing facilities
• More effective penetration of industrial contaminants

Benefits of the RTD-HW80-300H

• High-pressure hot-water performance for demanding cleaning tasks
• Durable construction designed for harsh industrial environments
• Continuous-duty operation ideal for 24/7 systems
• User-friendly maintenance features
• 5-year commercial warranty for long-term confidence

Typical Use Cases

• Food & beverage sanitation washdowns
• Poultry and meat processing facilities
• Industrial and refinery cleaning operations
• Boiler-fed hot-water mobile wash rigs
• Dairy and agricultural sanitation systems
• Heavy equipment, machinery, and fleet degreasing

Why Choose the RTD-HW80-300H?

This pump is the preferred solution for operators who require both high pressure and hot-water
capability. With 21 GPM at 4,350 PSI and a 180°F temperature rating,
it excels in environments that involve grease-heavy materials, sanitation requirements, or
demanding industrial cleaning cycles.

Core Advantages

• Nickel-plated manifold extends service life
• Thermally stable ceramic plungers
• High-temp industrial seals for durability
• Slow-speed 1,000 RPM operation reduces vibration and heat
• Factory-tested for verified performance

RTD-HW80-300H | 21 GPM 4350 PSI Hot Water Pump Nickel Head

The RTD-HW80-300H delivers unmatched high-pressure hot-water performance for industrial cleaning systems.
With 21 GPM, 4,350 PSI, thermal stability up to 180°F, and a nickel-plated manifold, it is engineered
for reliability, longevity, and superior cleaning results. Shipped fully tested and backed by a
5-year commercial-use warranty, this pump is built for demanding continuous-duty
environments where hot-water performance is essential.
