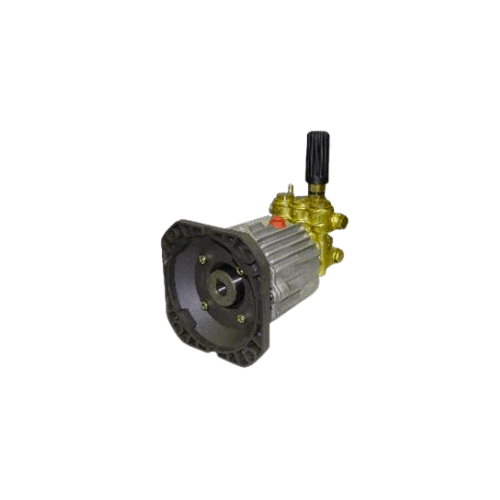

XJV2G15E-F8 Electric Pump | 2.0 GPM 1500 PSI 3400 RPM

Annovi Reverberi XJV2G15E-F8 Axial Cam Electric Pump | 2.0 GPM 1500 PSI NEMA 56C F8 Flange

The XJV2G15E-F8 from Annovi Reverberi is a compact direct-drive
axial cam electric pressure washer pump delivering 2.0 GPM at 1,500 PSI
at 3,400 RPM — engineered for HVAC coil cleaning, vehicle
and equipment detailing, residential surface cleaning, small equipment washdown,
and light commercial mobile service operations where a compact, feature-complete,
maintenance-free pump mounted directly to a NEMA 56C electric motor delivers
dependable daily performance. The XJV2G15E-F8 features an
F8 hollow shaft mount for 5/8-inch NEMA 56C face electric motors,
an integrated unloader valve with manual pressure adjustment, a built-in chemical
soap injector, and a maintenance-free crankcase pre-filled with premium synthetic
lifetime oil — no oil changes required over the pump’s entire service life —
backed by a 5-year manufacturer warranty.

The XJV2G15E-F8 stands apart from competing axial cam pumps in
this class through the combination of three integrated features that buyers
typically source separately: the unloader valve with manual pressure adjustment
knob, the built-in chemical injector, and the synthetic lifetime oil crankcase.
Together these three features eliminate the most common installation complications,
maintenance requirements, and mid-cleaning workflow interruptions that residential
and light commercial operators encounter with bare pump configurations — delivering
a genuinely complete solution in a single compact package built on
Annovi Reverberi’s precision-machined brass manifold, ceramic plungers,
and stainless steel valve internals.

XJV2G15E-F8 Key Specifications

Performance, Drive & Integrated Features

• Model: Annovi Reverberi XJV2G15E-F8
• Flow Rate: 2.0 GPM — consistent output for
  HVAC coil cleaning, vehicle detailing, residential surface
  cleaning, and light commercial
  service applications
• Maximum Pressure: 1,500 PSI — effective cleaning
  force for vehicles, residential surfaces, equipment washdown,
  and light commercial tasks without surface risk
  on sensitive finishes
• Operating Speed: 3,400 RPM — direct-drive speed
  matched to NEMA 56C electric motor output for seamless
  flange mounting
• Pump Type: Axial cam, direct-drive — compact
  design with smooth, consistent water delivery and reduced
  vibration versus wobble-plate alternatives

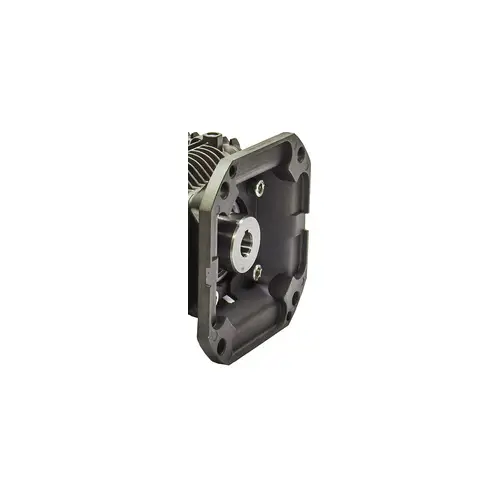

• Mount Type: F8 hollow shaft — engineered for
  5/8-inch NEMA 56C face electric motors; secure,
  energy-efficient, vibration-reduced
  drive connection

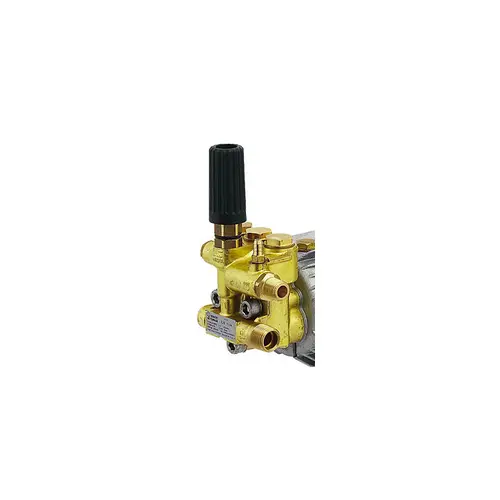

• Manifold: Precision-machined brass — corrosion
  resistant for reliable service life across residential and
  light commercial cleaning chemistries
• Plungers: Ceramic — heat and wear resistant
  for extended seal life in frequent-use
  cleaning applications
• Valves: Stainless steel — consistent sealing
  performance across variable demand and chemical
  cleaning applications
• Seals: Heavy-duty — engineered for frequent
  start/stop cycles in residential and light
  commercial use

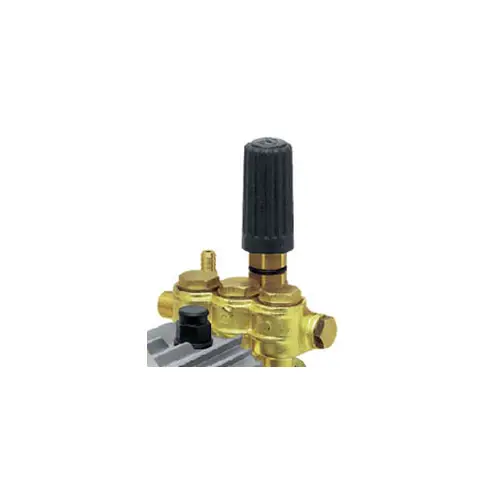

• Unloader Valve: Integrated with manual pressure
  adjustment knob — automatic bypass on trigger release with
  operator-adjustable output pressure
• Chemical Injector: Built-in soap injection —
  pulls detergent directly into the water stream for enhanced
  grease, grime, and stain removal
• Crankcase Oil: Pre-filled premium synthetic
  lifetime oil — maintenance-free; no oil changes required
  over the XJV2G15E-F8’s entire service life
• Warranty: 5-year manufacturer warranty

What’s Included with the XJV2G15E-F8

A Complete Package — Integrated Features That Others Sell Separately

• Factory pre-filled synthetic lifetime oil —
  maintenance-free crankcase; no oil changes required over
  the XJV2G15E-F8’s service life
• Integrated unloader valve with manual pressure
  adjustment knob — automatic bypass protection
  and operator-adjustable output pressure in
  one integrated component
• Built-in chemical soap injector — pulls
  detergent directly into the water stream without
  separate downstream injection hardware
• Bolts and fasteners for secure NEMA 56C
  motor mounting
• Instruction manual for setup, operation,
  and maintenance reference
• Parts schematic and exploded diagram —
  component identification for service and
  replacement ordering
• 5-year manufacturer warranty documentation

How the XJV2G15E-F8 Works

Axial Cam Direct-Drive — Compact, Smooth, and Maintenance-Free

The XJV2G15E-F8 uses an axial cam mechanism where pistons are
driven directly by the camshaft — the camshaft’s angled face converts rotational
motor output into smooth, consistent reciprocating piston motion that produces
steady 1,500 PSI water delivery with reduced vibration compared to wobble-plate
designs at equivalent output. The F8 hollow shaft mount couples
directly to the 5/8-inch output shaft of compatible NEMA 56C face electric motors,
providing a stable, energy-efficient drive connection without belts, pulleys, or
separate coupling hardware.

The integrated unloader valve automatically redirects water flow
into bypass when the spray trigger is released — preventing over-pressurization
and component stress at every trigger-release event throughout the operating
session. The manual pressure adjustment knob allows operators to
fine-tune output pressure for specific cleaning tasks without nozzle changes —
dial down for sensitive surfaces like HVAC coil fins or vehicle paint, dial up
for concrete and equipment washdown, all from the same
XJV2G15E-F8 installation.

The built-in chemical injector pulls detergent directly into the
water stream during low-pressure operation — operators switch to the soap setting
to apply detergent across the surface, then switch back to high pressure to rinse.
No separate downstream injector hardware, no additional connection points, and no
mid-job plumbing changes. For HVAC coil cleaning and vehicle detailing where
detergent dwell time before rinse is part of the effective cleaning workflow,
the XJV2G15E-F8’s integrated injector makes the process faster and
more consistent.

The synthetic lifetime oil crankcase is the most operationally
significant maintenance feature of the XJV2G15E-F8 — premium
synthetic oil pre-filled at the factory maintains lubrication quality across the
pump’s service life without periodic drain and refill cycles. For residential users
and light commercial operators who want to focus on cleaning rather than pump
maintenance, this eliminates the most commonly neglected service interval in
axial cam pump ownership — and the bearing and seal failures that
neglected oil changes cause.

XJV2G15E-F8 Key Benefits

Three Integrated Features That Competing Bare Pumps Don’t Include

• Lifetime synthetic oil — zero oil changes ever:
  the most meaningful maintenance differentiator in the axial
  cam pump class — no drain intervals to track, no oil to
  source, no bearing failures from missed changes; the
  XJV2G15E-F8 crankcase is maintenance-free
  for its entire service life
• Integrated unloader with manual pressure adjustment:
  automatic bypass protection at every trigger release combined
  with operator-adjustable output pressure — two features
  that bare pump competitors require separate sourcing to
  achieve in a single
  integrated component
• Built-in chemical injector for complete cleaning
  workflow: apply detergent and rinse from the same
  pump without separate downstream injection hardware —
  particularly valuable for HVAC coil cleaning and
  vehicle detailing where detergent application
  is part of every job
• F8 NEMA 56C direct mount — the standard electric
  motor interface: the most common face mount
  configuration for residential and light commercial
  electric pressure washer motors — the XJV2G15E-F8 fits
  compatible motors without adapter plates or
  custom hardware
• Ceramic plungers and stainless valves in a compact
  package: the internal material standards of
  commercial-grade pump construction delivered in a
  compact axial cam configuration appropriate for
  residential and light commercial
  mounting requirements
• Precision-machined brass manifold: corrosion-resistant
  construction for consistent sealing performance across
  residential cleaning chemistries, vehicle detergents,
  and HVAC coil cleaning solutions
• 5-year warranty — exceptional for this pump class:
  most competing axial cam pumps at this price point carry
  1–2 year warranties — the XJV2G15E-F8’s 5-year coverage
  reflects Annovi Reverberi’s confidence in
  the platform’s long-term durability

XJV2G15E-F8 Typical Applications

Where 2.0 GPM at 1,500 PSI With Integrated Features Delivers Results

• HVAC coil cleaning: the XJV2G15E-F8’s manual
  pressure adjustment and built-in chemical injector make it
  purpose-appropriate for HVAC coil cleaning where controlled
  low pressure, detergent application, and clean rinse
  are all part of the standard
  service workflow
• Vehicle and equipment detailing: cars, boats,
  motorcycles, and recreational vehicles where 1,500 PSI
  delivers thorough cleaning without paint and
  clear coat risk, and the chemical injector speeds
  soap application across vehicle surfaces
• Residential surface cleaning: siding, patios,
  decks, driveways, and fences where 2.0 GPM at 1,500 PSI
  provides effective cleaning without damaging treated wood,
  composite materials,
  or painted surfaces
• Small equipment washdown: lawn mowers, hand
  tools, shop equipment, and garden machinery where the
  XJV2G15E-F8’s compact direct-drive design handles
  routine maintenance cleaning efficiently with
  minimal setup
• Light commercial and mobile service operations:
  compact NEMA 56C motor-mounted systems for mobile detailing,
  light contractor cleaning, and commercial property
  maintenance where the XJV2G15E-F8’s integrated features
  reduce setup complexity and
  component count
• Replacement pump for NEMA 56C electric pressure
  washer systems: the F8 NEMA 56C compatibility
  makes the XJV2G15E-F8 a direct-fit replacement for worn
  axial cam pumps on compatible electric pressure
  washer frames without motor changes
  or adapter hardware

XJV2G15E-F8 Installation & Maintenance

Simple Setup — The Integrated Design Handles the Rest

• Verify NEMA 56C motor compatibility before
  installation: confirm the electric motor has a
  5/8-inch output shaft and NEMA 56C face configuration —
  incorrect shaft diameter or face pattern prevents proper
  F8 flange engagement and voids
  warranty coverage
• Confirm motor rotation direction: verify the
  motor rotates in the correct direction for the XJV2G15E-F8’s
  axial cam mechanism — reverse rotation damages
  internal components on first startup
• Use clean, filtered inlet water: install an
  upstream mesh strainer to protect ceramic plungers,
  stainless valve seats, and internal seals from
  particulate contamination
• Set pressure using the manual adjustment knob:
  with the correct nozzle installed and the trigger gun open
  at operating flow, adjust the knob to the desired output
  pressure — setting without flow produces
  inaccurate regulation
• Use the chemical injector at low-pressure setting:
  the built-in soap injector operates in low-pressure mode —
  switch to the soap/detergent setting to apply chemical,
  then return to high pressure for rinse; do not attempt
  to inject chemical at full
  1,500 PSI output
• No oil changes required: the XJV2G15E-F8
  synthetic lifetime oil crankcase is maintenance-free —
  do not drain or refill the crankcase oil; the factory
  fill is engineered to last the full
  service life of the pump
• Never run dry: always confirm water supply
  is connected and flowing before starting the motor —
  dry operation damages internal seals and voids
  the 5-year warranty
• Flush after chemical applications: always run
  clean water through the XJV2G15E-F8 after every detergent
  or coil cleaning chemical application to prevent residue
  buildup in the brass manifold passages and
  stainless valve seats
• Winterize before cold storage: drain all water
  from the pump or use pump-safe antifreeze before freezing
  temperatures — freeze damage is not covered under the
  5-year warranty; the lifetime oil crankcase
  does not require antifreeze treatment

Why Choose the Annovi Reverberi XJV2G15E-F8

Maintenance-Free Lifetime Oil, Integrated Unloader, and Built-In Chemical Injection

• The most complete axial cam pump package in its
  class: lifetime synthetic oil, integrated unloader
  with manual adjustment, and built-in chemical injector
  together in a single NEMA 56C direct-mount package —
  three features that competing bare pumps require
  separate sourcing to match
• Lifetime oil is a genuine ownership advantage:
  oil change neglect is the most common preventable failure
  mode in axial cam pump ownership — the XJV2G15E-F8
  eliminates this failure mode entirely with its
  factory-filled synthetic
  lifetime crankcase
• HVAC coil cleaning purpose-fit: manual pressure
  control plus chemical injection plus 1,500 PSI output is
  the specification combination that HVAC service technicians
  need — the XJV2G15E-F8 delivers all three in
  one integrated package
• Annovi Reverberi quality since 1958: over 60
  years of pump engineering manufacturing expertise —
  the XJV2G15E-F8 carries that heritage into a compact
  axial cam platform built with ceramic plungers, stainless
  valves, and precision brass manifold construction
  appropriate for the residential and light
  commercial market
• 5-year warranty where competitors offer 1–2 years:
  the most meaningful differentiator in the axial cam pump
  class — exceptional coverage that signals genuine
  confidence in the XJV2G15E-F8’s
  long-term durability
• Backed by WSHPWR: application support, motor
  compatibility guidance, and full parts availability for
  the XJV2G15E-F8 and the complete Annovi
  Reverberi XJV pump family

The Annovi Reverberi XJV2G15E-F8 delivers 2.0 GPM at
1,500 PSI at 3,400 RPM through an F8 hollow shaft
NEMA 56C direct-drive mount — a maintenance-free axial cam electric pump
with integrated unloader, manual pressure adjustment, built-in chemical injector,
and synthetic lifetime oil that eliminates the sourcing complexity and maintenance
requirements of bare pump alternatives for HVAC coil cleaning, vehicle detailing,
residential cleaning, and light commercial service applications. Contact WSHPWR
for current pricing, availability, motor compatibility confirmation, and
application support.
