XTV3G22D-F8M2I Electric Pump | 3.0 GPM 2200 PSI 3400 RPM

Overview

Powerful, Durable Triplex Pump for Electric Motor Applications

The Annovi Reverberi XTV3G16D-F8M2I Triplex Pump delivers the power, durability, and efficiency needed for residential, light commercial, and industrial cleaning systems. Designed for electric motor applications with an F8 NEMA 56C mount, this pump produces 3.0 GPM at 1600 PSI while operating smoothly at 3400 RPM. Whether used as a replacement pump or part of a new system, it combines premium construction with user-friendly features for dependable daily performance.

Built with a forged brass manifold, stainless steel valves, and ceramic plungers, the XTV3G16D-F8M2I withstands heavy use while maintaining consistent water flow. The triplex plunger design reduces pulsation, while the included AR20890 unloader provides safe pressure regulation. With a maintenance-friendly layout and a 5-year manufacturer’s warranty, this pump is a reliable choice for long-term cleaning power.

Key Specifications

Technical Details

• Model: XTV3G16D-F8M2I
• Flow Rate: 3.0 GPM
• Maximum Pressure: 1600 PSI
• Operating Speed: 3400 RPM
• Pump Type: Triplex ceramic plunger pump

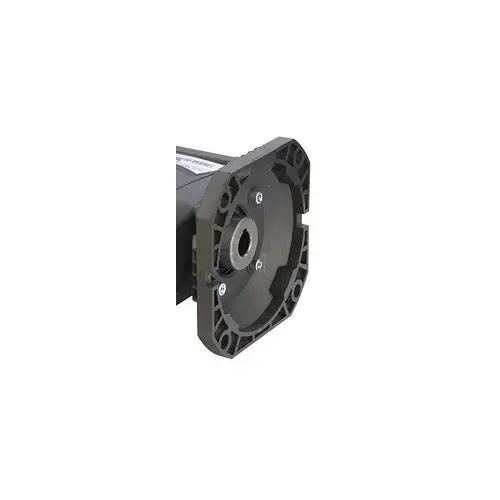

• Mounting Style: F8 NEMA 56C electric motor mount

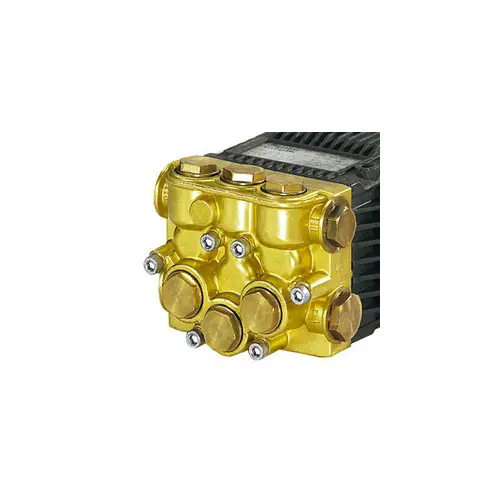

• Construction: Brass manifold, stainless steel valves, ceramic plungers
• Unloader: AR20890 unloader included
• Warranty: 5-year manufacturer’s warranty

What’s Included

Factory-Tested and Ready for Installation

• Pre-filled break-in pump oil
• AR20890 unloader for adjustable pressure control
• Vented oil cap/dipstick for monitoring and ventilation
• Instruction manual and schematic
• 5-year warranty coverage

How the Pump Works

Triplex Plunger System with Integrated Pressure Regulation

The triplex plunger system uses three ceramic plungers driven by a precision crankshaft to draw water in and push it out under high pressure. This design minimizes pulsation, ensuring consistent, reliable cleaning performance.

The AR20890 unloader serves as a built-in safety and control feature by regulating pressure and allowing safe system bypass. The F8 NEMA 56C mount ensures strong compatibility and secure connection to electric motors, simplifying installation.

Benefits of the XTV3G16D-F8M2I

Performance, Durability & Easy Maintenance

• Dependable Performance: 3.0 GPM at 1600 PSI covers a broad range of cleaning needs.
• Durable Components: Brass manifold, stainless steel valves, and ceramic plungers ensure long service life.
• Electric Motor Ready: F8 NEMA 56C mount enables straightforward installation.
• Built-In Safety: AR20890 unloader protects the pump and regulates pressure.
• Maintenance-Friendly: Pre-filled oil and vented dipstick simplify servicing.
• Warranty Protection: Backed by a 5-year manufacturer’s warranty.

Typical Applications

Suitable for Residential, Commercial & Industrial Use

• Residential Cleaning: Decks, patios, siding, fences, driveways, outdoor furniture.
• Vehicle Washing: Cars, trucks, RVs, motorcycles, trailers.
• Commercial Cleaning: Storefronts, parking areas, sidewalks, small business properties.
• Equipment Maintenance: Farm equipment, construction tools, landscaping machinery.
• Industrial Cleaning: Facilities requiring dependable water pressure for regular cleaning tasks.

Maintenance Tips

Maximize Pump Longevity

• Replace oil after the first 50 hours, then every 500 hours of operation.
• Ensure water flow is established before starting the pump.
• Use clean, filtered water to protect internal components.
• Inspect seals, plungers, and the unloader regularly.
• Store pump in a clean, dry environment when not in use.

Final Overview

Reliable, High-Performance Pump for Long-Term Use

The Annovi Reverberi XTV3G16D-F8M2I Triplex Pump provides 3.0 GPM at 1600 PSI with a smooth-running 3400 RPM operating speed, making it ideal for a wide range of electric motor-driven cleaning systems. The F8 NEMA 56C mount ensures hassle-free compatibility, while the AR20890 unloader adds safe, efficient pressure control.

Featuring premium materials, pre-filled oil, and a service-friendly design, this pump is engineered for long-term reliability and peak performance. Backed by a 5-year warranty, the XTV3G16D-F8M2I is an excellent choice for homeowners, contractors, and businesses seeking dependable pressure washing power.
