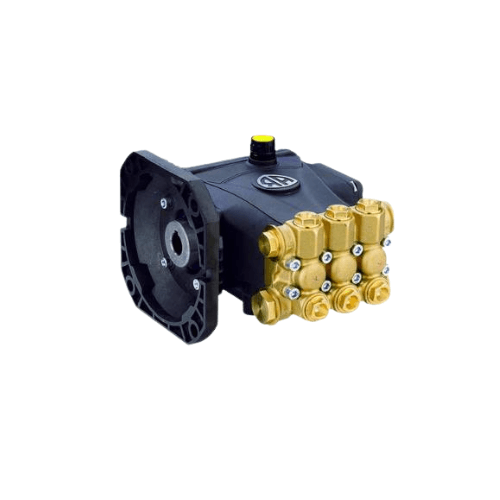

RCA2G22E-F8SX LH Electric Pump | 2.0 GPM 2200 PSI

RCA2G22E-F8SX Pump – 2.0 GPM, 2200 PSI, 1750 RPM, Left-Hand F8SX

• Left-hand (SX) configuration triplex plunger pump for electric builds requiring reverse-orientation drive layout.
• Delivers 2.0 GPM at 2200 PSI at 1750 RPM for smooth, quiet operation and extended component life.

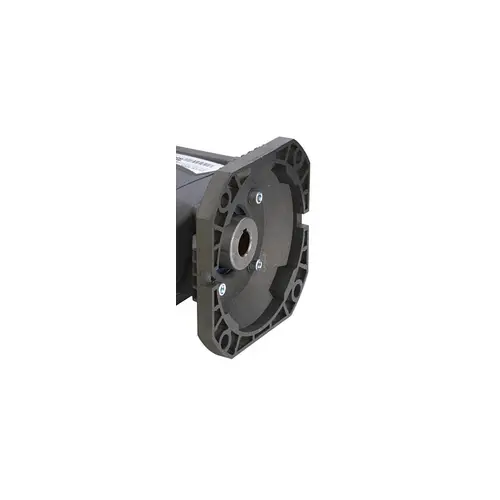

• F8 electric motor flange interface supports direct coupling to compatible NEMA 56C face electric motors.
• Purpose-built for OEM replacement and specialty equipment layouts where standard rotation packages will not fit.

Performance Specifications of RCA2G22E-F8SX

• Flow Rate: 2.0 GPM.
• Maximum Pressure: 2200 PSI.
• Operating Speed: 1750 RPM (low-speed design).
• Configuration: Left-hand (SX).
• Mount Type: F8 electric motor flange for direct coupling.
• Pump Type: Triplex ceramic plunger pump.
• Warranty: 5-year manufacturer warranty with nationwide support.

Mounting & Integration

• Left-hand SX configuration supports equipment designs where plumbing orientation and drive layout require reverse positioning.
• Direct-drive motor coupling reduces installation time and minimizes alignment variables compared to belt-driven packages.
• Compact assembly supports portable electric units, cabinet systems, and small wash stations.
• Ideal for retrofit and replacement scenarios where the existing frame and hose routing require left-hand orientation.

Included Components with RCA2G22E-F8SX

• RCA2G22E-F8SX pump assembly, factory pre-filled with break-in oil.
• Vented dipstick and oil sight glass for quick inspection and maintenance planning.
• Operator’s manual with installation and maintenance guidance.
• Warranty documentation and service support details.

Materials & Construction

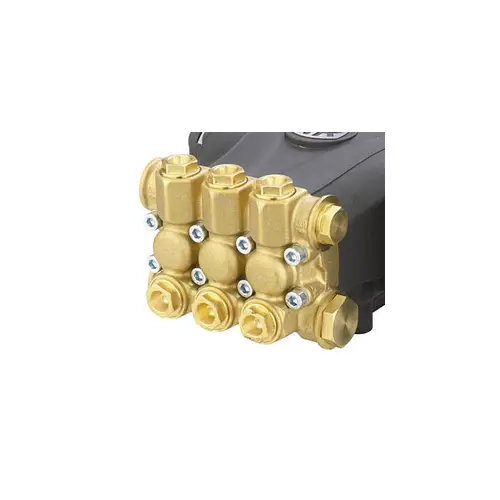

• Precision-machined brass manifold engineered for pressure stability and corrosion resistance.
• Ceramic plungers selected for wear resistance and consistent sealing performance.
• Stainless steel valve set designed for durability under frequent pressure cycling.
• Heavy-duty seal system built to support low-speed operation and extended service intervals.
• Industrial-grade bearings and internal components to maintain long-term tolerances.

Quality Control & Validation

• Factory pressure-tested prior to packaging.
• Sealing integrity and output verification performed during final inspection.
• Critical assembly checks completed to confirm consistent performance and reliability.
• Packaged to protect mounting surfaces and internal components during shipment.

Operating Guidance

• Use clean, filtered water supply within manufacturer requirements.
• Match electric motor horsepower to the intended operating pressure and flow.
• Confirm correct rotation requirements for SX applications before start-up.
• Limit extended bypass operation per best practice to reduce heat buildup in the pump and plumbing.
• Monitor oil level and condition routinely, and follow scheduled maintenance intervals.

Key Features & Benefits

• Triplex plunger architecture supports consistent pressure and smooth output at 1750 RPM.
• Left-hand F8SX layout expands fitment options for specialty electric pressure washer frames.
• Brass manifold and stainless steel valves provide long-term durability in wash and rinse duty cycles.
• Low-RPM operation reduces heat, noise, and wear for longer pump life and stable performance.
• Sight glass and vented dipstick simplify service checks and reduce maintenance downtime.

Typical Applications for RCA2G22E-F8SX

• Residential cleaning: driveways, patios, decks, fences, siding, and vehicles.
• Commercial tasks: storefront exteriors, outdoor furniture, equipment washdown, and property maintenance.
• Light industrial cleaning for workshops, maintenance bays, and facility upkeep.
• Retrofit or replacement builds where a left-hand F8 electric pump configuration is required.
