RCV2G25E-F8M2I Electric Triplex Pump | 2.0 GPM 2500 PSI

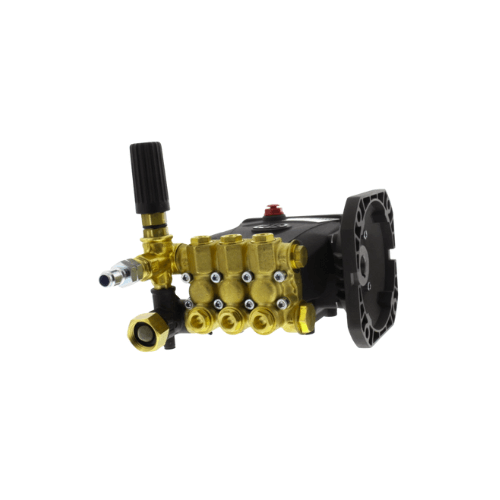

RCV2G25E-F8M2I by Annovi Reverberi — RC Series Electric Triplex Plunger Pump with Mini-Matic M2I Unloader and Chemical Injector | 2.0 GPM | 2,500 PSI | Brass Manifold | 5/8″ Hollow Shaft | NEMA 56C F8 Electric Motor Mount | 3,400 RPM

The RCV2G25E-F8M2I by Annovi Reverberi is a professional-grade RC Series triplex ceramic plunger pump engineered for NEMA 56C electric motor-driven pressure washing systems requiring 2.0 GPM at 2,500 PSI with factory-integrated downstream chemical injection capability. Rated at 2.0 GPM and 2,500 PSI at 3,400 RPM, the RCV2G25E-F8M2I delivers 5,000 cleaning units — combining 2.0 GPM focused output with 2,500 PSI cleaning force for residential and commercial vehicle washing, decks, patios, siding, equipment rinse-down, and agricultural cleaning — through a precision-machined brass manifold, solid ceramic plungers, stainless steel valves, and an F8 NEMA 56C flange with 5/8″ hollow shaft for direct coupling to compatible electric motors. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RCV2G25E-F8M2I arrives factory-configured and factory-tested, ready to deliver from the first startup.

The RCV2G25E-F8M2I carries the factory-installed Mini-Matic M2I integrated unloader assembly (AR20890) — delivering factory pre-set and field-adjustable pressure regulation with downstream chemical injection from a single factory-configured, factory-approved assembly. Electric motor operation at 1,750 RPM or 3,400 RPM on the NEMA 56C platform delivers consistent, voltage-regulated output without the noise or exhaust of gas engine alternatives — making the RCV2G25E-F8M2I well suited for enclosed shop environments, cabinet washers, and indoor-friendly electric cleaning systems. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated technical support — this pump arrives pre-filled with factory break-in oil, factory-tested, and ready for installation. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, the RCV2G25E-F8M2I is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The RCV2G25E-F8M2I Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every RCV2G25E-F8M2I ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched M2I for 2,500 PSI — the Mini-Matic M2I integrated unloader (AR20890) and chemical injector are factory-calibrated for this pump’s 2.0 GPM / 2,500 PSI duty point. Pressure regulation and chemical draw characteristics are factory-set as a complete system.
• Factory-approved configuration — the complete assembly is Annovi Reverberi’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every RCV2G25E-F8M2I exits the manufacturing facility with the M2I assembly mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader or injector specification — the most common source of pump system returns — before the pump leaves the box.
• Installation-ready — confirm NEMA 56C motor compatibility, mount via the F8 flange, connect system hoses, connect the detergent supply line to the injector port, and start. The RCV2G25E-F8M2I arrives engineered, assembled, and ready.

Decoding the RCV2G25E-F8M2I Model Number

What Every Segment of This Annovi Reverberi Pump Designation Tells You

• RCV — Pump series: RC Series triplex plunger pump — Annovi Reverberi’s compact commercial electric motor pump platform
• 2G — Flow rate: 2.0 GPM
• 25 — Maximum pressure: 2,500 PSI — 2.0 × 2,500 = 5,000 cleaning units
• E — Shaft type: Electric shaft — hollow shaft configuration for direct electric motor coupling per Annovi Reverberi model designation convention
• F8 — Flange type: NEMA 56C flange — direct coupling to NEMA 56C electric motors with 5/8″ hollow shaft (Annovi Reverberi part AR1584)
• M2 — Unloader family: Mini-Matic (AR20890) — factory-installed integrated unloader assembly with adjustable pressure regulation
• I — Chemical injector: Included — downstream soap injector factory-integrated into the Mini-Matic M2 assembly for chemical pre-soak and rinse capability

The RCV F8 Electric Family — 2.0 GPM vs 3.0 GPM

Both models share the same NEMA 56C electric platform and Mini-Matic M2I assembly. Flow rate and pressure are the key differences:

• RCV2G25E-F8M2I (this model) — 2.0 GPM / 2,500 PSI / 5,000 CU. Compact electric platform for cabinet washers, skid systems, and residential and commercial cleaning where a smaller motor footprint is appropriate.
• RCV3G27D-F8M2I — 3.0 GPM / 2,700 PSI / 8,100 CU. Higher flow and pressure for more demanding commercial and industrial electric cleaning applications.

Key Specifications

RCV2G25E-F8M2I Technical Details at a Glance

• Flow Rate: 2.0 GPM (gallons per minute)
• Maximum Pressure: 2,500 PSI
• Cleaning Units: 5,000 (GPM × PSI)
• Operating Speed: 3,400 RPM
• Pump Type: RC Series triplex ceramic plunger pump — smooth, low-pulsation output

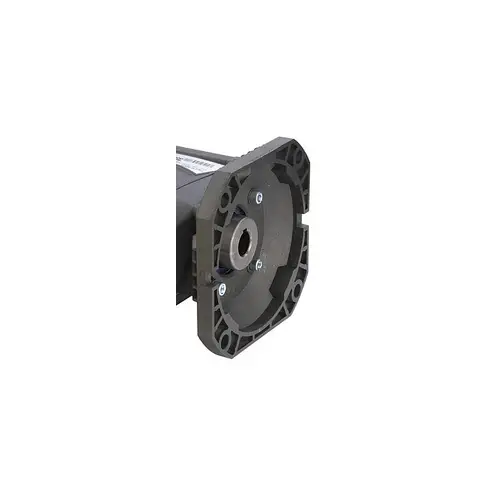

• Flange: F8 — NEMA 56C electric motor flange, 5/8″ hollow shaft (Annovi Reverberi part AR1584)

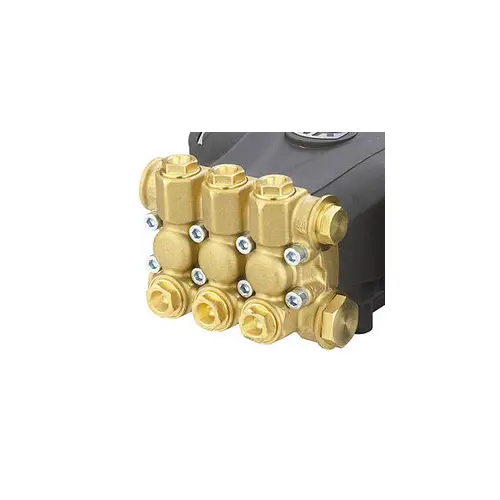

• Manifold Material: Precision-machined brass — corrosion resistance and pressure stability
• Plungers: Solid ceramic — wear resistance and consistent sealing performance
• Valves: Stainless steel — durability under frequent pressure cycling
• Bearings: Industrial-grade — long-term tolerances under continuous operation
• Serviceability: Oil sight glass and vented dipstick for simplified routine maintenance
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Unloader System: Mini-Matic M2I (AR20890) — factory pre-set and field-adjustable; integrated downstream chemical injector; factory-matched and factory-installed
• Connections: Banjo bolts and sealing O-rings — standard M2 family hardware supplied for secure, leak-resistant installation
• Chemical Injector: Included — downstream venturi injector factory-integrated into M2I Mini-Matic assembly
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

What’s Included in the Box

A Complete, Factory-Configured RCV2G25E-F8M2I Assembly Ready for Installation

• Factory-matched Mini-Matic M2I integrated unloader with active chemical injector (AR20890) — factory pre-set and installed for the 2.0 GPM / 2,500 PSI operating point; field-adjustable; injector port ready for detergent supply line connection
• Banjo bolts and sealing O-rings — standard M2 family hardware for secure, leak-resistant unloader connections
• Factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting hardware — for F8 NEMA 56C electric motor installation
• Operator’s manual — complete installation, startup, operating, and maintenance procedures including oil change intervals, chemical injector care, and winterization protocol
• Parts schematic — exploded-view diagram with Annovi Reverberi part numbers for every serviceable component

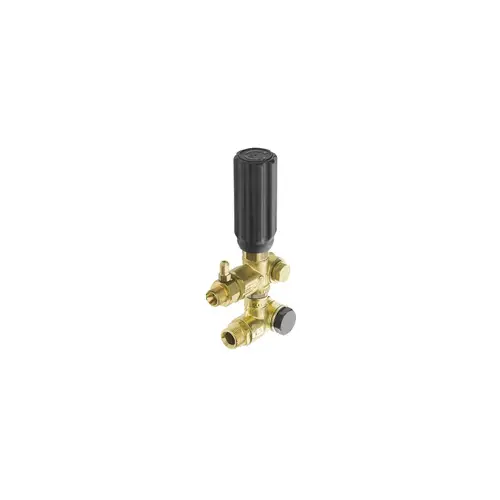

Mini-Matic M2I Unloader (AR20890) — Chemical Pre-Soak and Rinse at 2,500 PSI

Factory Pre-Set. Field-Adjustable. Integrated Chemical Feed. Compact Electric Platform.

• Factory pre-set and field-adjustable pressure regulation — the AR20890 unloader on the RCV2G25E-F8M2I arrives calibrated for immediate 2,500 PSI operation with on-pump manual adjustment available for fine-tuning to match nozzle size, hose length, and surface requirements
• Integrated downstream injection — draws detergent or pre-soak solution when the operator applies chemical. No separate injector hardware or additional plumbing required on the RCV2G25E-F8M2I.
• Chemical pre-soak and rinse at 2.0 GPM / 2,500 PSI — chemical application breaks down contamination; full 2,500 PSI / 2.0 GPM rinse removes loosened material at 5,000 cleaning units. Switch between application and rinse without changing tools.
• Bypass protection at trigger release — the M2I unloader diverts flow when the trigger gun is released on the RCV2G25E-F8M2I, protecting the pump from pressure spikes and allowing pause-and-resume operation
• Compact manifold-integrated design — reduces fitting count, simplifies system layout, and supports clean OEM packaging in cabinet washers and compact electric skid builds using the RCV2G25E-F8M2I
• Injector maintenance — flush the M2I injector circuit with clean water after every detergent session to preserve long-term venturi function on the RCV2G25E-F8M2I

Typical Applications

Where the RCV2G25E-F8M2I Delivers Best Results

• Residential and commercial vehicle washing — cars, motorcycles, boats, and recreational vehicles where 2,500 PSI output and integrated detergent injection handle surface contamination efficiently on quiet, exhaust-free electric systems
• Patio, deck, siding, and driveway cleaning — the RCV2G25E-F8M2I’s electric operation and integrated chemical capability deliver clean, controlled results on residential surfaces without gas engine noise or fumes
• Equipment and machinery rinse-down in shops and facilities — compact electric wash systems in enclosed environments where the RCV2G25E-F8M2I’s NEMA 56C platform supports safe, low-emission indoor operation
• Agricultural and construction equipment cleaning — on-demand chemical application and 2,500 PSI rinsing handle surface contamination in electric-powered stationary and semi-portable wash installations
• Cabinet washers and compact electric skid systems — the RCV2G25E-F8M2I’s F8 NEMA 56C direct mount, compact M2I assembly, and 2.0 GPM output make it a practical specification for cabinet-style electric pressure washers and space-constrained OEM builds

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

RC Series Electric Performance Backed by Domestic Support

The RCV2G25E-F8M2I is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network. Every internal wear component — solid ceramic plungers, brass manifold seals and o-rings, stainless valve seats and springs, Mini-Matic M2I unloader service parts (AR20890), piston packing kits, and crankcase bearings — is stocked domestically through authorized distribution channels. Contractors, facility managers, fleet operators, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RCV2G25E-F8M2I and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

5,000 Cleaning Units. 2,500 PSI. 2.0 GPM. F8 NEMA 56C. Mini-Matic M2I. Integrated Chemical Injection.

Italian Engineering. Compact Electric Platform. Factory-Approved Mini-Matic Assembly. US Warranty Coverage.

For residential users, commercial contractors, facility managers, and OEM equipment builders who need 2.0 GPM at 2,500 PSI on a NEMA 56C electric motor platform — with F8 flange direct coupling for cabinet washers, skids, and compact systems, factory-matched Mini-Matic M2I integrated unloader with downstream chemical injection, low-noise electric operation for indoor-friendly applications, and a completely rebuildable platform backed by a 5-year US warranty — the RCV2G25E-F8M2I delivers a purpose-engineered compact electric solution from one of the global pressure pump industry’s most trusted manufacturers. Five thousand cleaning units. NEMA 56C direct couple. Integrated chemical injection. Five years of US warranty. A decade of service life.

Volume buyers can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing for quantity purchases across the complete Annovi Reverberi lineup.
