RCV25G27D-F7-SX LH Horizontal Pump | 2.5 GPM 2700 PSI

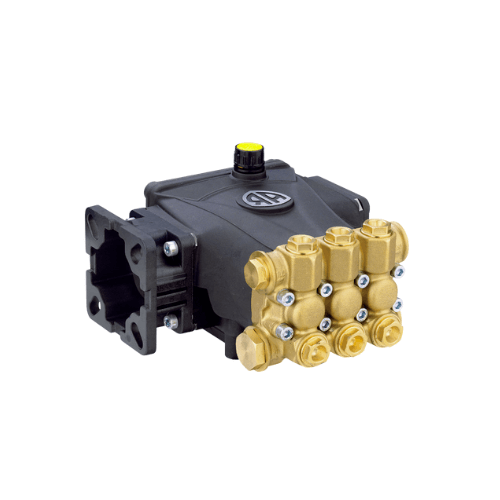

RCV25G27D-F7-SX — 2.5 GPM, 2700 PSI, 3400 RPM Triplex Pump, Left-Hand F7-SX Shaft

• Left-hand horizontal triplex plunger pump built for specialized engine, frame, and plumbing layouts.
• Delivers 2.5 GPM at 2700 PSI at 3400 RPM for rigorous residential and commercial cleaning duty.
• Left-hand F7-SX 3/4″ hollow-shaft flange supports mirrored installs and reverse-rotation engine applications.
• WSHPWR.com-ready upgrade or replacement where standard right-hand F7 packages will not fit.

Performance Specifications for RCV25G27D-F7-SX

• Flow Rate: 2.5 GPM.
• Maximum Pressure: 2700 PSI.
• Operating Speed: 3400 RPM.
• Shaft Type: 3/4″ left-hand F7-SX hollow shaft.
• Pump Type: Horizontal triplex plunger pump.
• Construction: Brass manifold, stainless steel valves, ceramic plungers.
• Warranty: 5-year manufacturer warranty.

Mounting & Integration

• Left-hand F7-SX configuration supports builds where frame geometry and hose routing require reverse orientation.

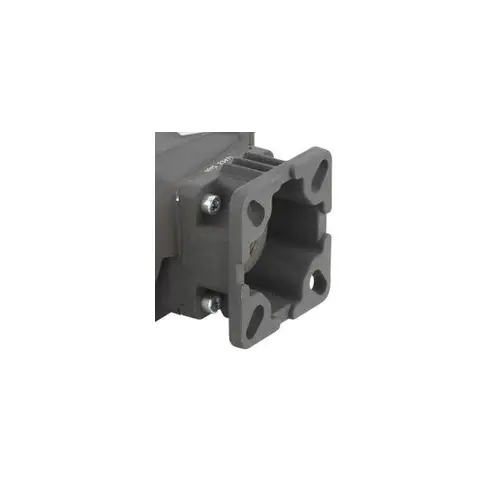

• Direct-drive flange installation simplifies engine coupling and reduces alignment variables.
• Designed for mirrored dual-pump assemblies and specialty equipment requiring left-hand shaft compatibility.
• Best suited for replacement installs where maintaining the existing mount pattern and pump position is critical.

Included Components

• RCV25G27D-F7-SX pump factory-tested and pre-oiled.
• Oil sight glass and vented dipstick for quick inspections.
• Mounting hardware and operator’s manual.

Materials & Construction

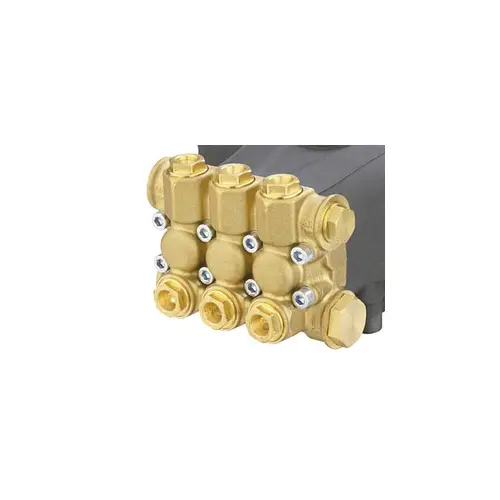

• Precision-machined brass manifold engineered for pressure stability and corrosion resistance.
• Ceramic plungers selected for wear resistance and consistent sealing performance.
• Stainless steel valves designed for durability under frequent pressure cycling.
• High-grade seals and internal components built to support extended service intervals.
• Industrial-grade bearings and hardened parts to maintain long-term tolerances.

Quality Control & Validation

• RCV25G27D-F7-SX factory pressure-tested prior to packaging.
• Sealing integrity and output verification performed during final inspection.
• Critical assembly checks completed to confirm consistent performance and reliability.
• Packaged to protect mounting surfaces and internal components during shipment.

Operating Guidance

• Use clean, filtered water supply within manufacturer requirements.
• Match engine horsepower and operating RPM to the intended pressure and flow.
• Confirm correct rotation requirements for SX applications before start-up.
• Limit extended bypass operation per best practice to reduce heat buildup in the pump and plumbing.
• Monitor oil level and condition routinely, and follow scheduled maintenance intervals.

Key Features & Benefits of RCV25G27D-F7-SX

• Left-hand shaft configuration solves hard-to-fit OEM and replacement scenarios.
• Triplex plunger architecture supports smooth output and stable pressure delivery.
• High-strength internal components support daily contractor and facility maintenance use.
• 3400 RPM design supports high productivity in compact, direct-drive pressure washer builds.
• Sight glass and vented dipstick simplify oil checks and reduce maintenance time.

Typical Applications

• Specialty pressure washer frames requiring left-hand drive.
• Dual-pump rigs using mirrored configurations.
• Contractor and fleet cleaning equipment with reverse-rotation engines.
• Industrial and municipal cleaning systems where layout flexibility is critical.
