RCV2G25E-F8VRC 2.0 GPM 2500 PSI Pump | 3400 RPM F8VRC

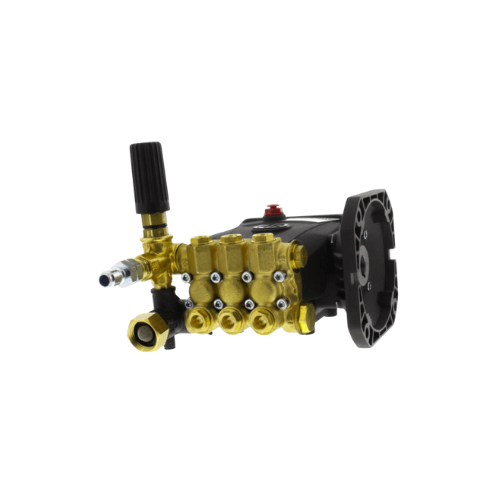

RCV2G25E-F8VRC — 2.0 GPM, 2500 PSI Electric Triplex Pump with VRC Unloader

• Durable triplex ceramic plunger pump built for residential and light commercial electric pressure washer systems.
• Delivers 2.0 GPM at 2500 PSI at 3400 RPM for strong everyday cleaning power in a compact direct-mount package.

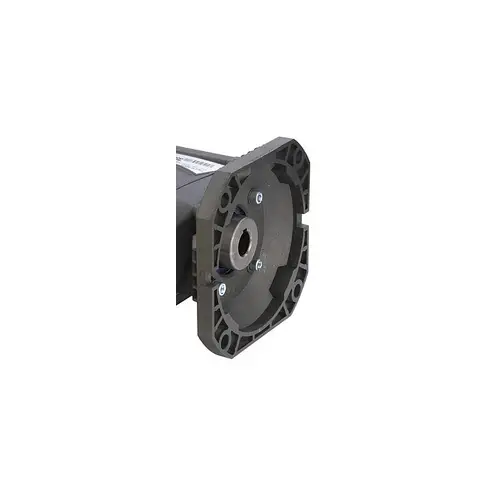

• F8 NEMA 56C flange supports direct coupling to compatible electric motor drive packages for clean alignment.
• Includes AR23504 VRC unloader for smooth, adjustable pressure control and dependable bypass protection.

Performance Specifications of RCV2G25E-F8VRC

• Flow Rate: 2.0 GPM.
• Maximum Pressure: 2500 PSI.
• Operating Speed: 3400 RPM.
• Pump Type: Triplex ceramic plunger pump.
• Flange Type: F8 NEMA 56C flange.
• Unloader: AR23504 VRC unloader.
• Construction: Forged brass manifold, ceramic plungers, stainless steel valves.
• Warranty: 5-year limited manufacturer warranty.

Mounting & Integration

• Direct-drive 56C mounting supports fast installation with repeatable alignment in high-speed electric systems.
• Factory-installed unloader reduces external plumbing complexity and keeps the assembly compact and serviceable.
• Built-in injector capability supports streamlined detergent integration in typical electric wash configurations.
• Ideal for replacement installs where preserving motor mount geometry and plumbing routing is required.

Included Components

• RCV2G25E-F8VRC pump, fully assembled.
• Factory pre-filled crankcase with break-in oil.
• AR23504 VRC unloader system installed.
• Built-in chemical injector, vented dipstick, and oil sight glass.
• Mounting hardware, operator’s manual, and parts schematic.

Materials & Construction

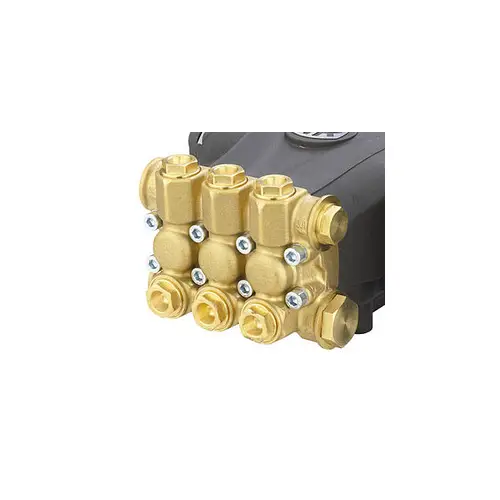

• Forged brass manifold engineered for pressure stability and corrosion resistance.
• Ceramic plungers selected for wear resistance and consistent sealing performance.
• Stainless steel valves designed for durability under frequent pressure cycling.
• High-grade seals and internal components built to support extended service intervals.
• Industrial-grade bearings and hardened parts to maintain long-term tolerances.

Quality Control & Validation

• Factory pressure-tested prior to packaging.
• Sealing integrity and output verification performed during final inspection.
• Critical assembly checks completed to confirm consistent performance and reliability.
• Packaged to protect mounting surfaces and internal components during shipment.

Operating Guidance

• Use clean, filtered water supply within manufacturer requirements.
• Match electric motor horsepower and operating RPM to the intended pressure and flow.
• Set working pressure with the AR23504 VRC unloader before placing the unit into continuous service.
• Use detergent injection only with compatible chemicals, and flush with clean water after use.
• Limit extended bypass operation per best practice to reduce heat buildup in the pump and plumbing.
• Monitor oil level and condition routinely, and follow scheduled maintenance intervals.

Key Features & Benefits of RCV2G25E-F8VRC

• Triplex design reduces pulsation and vibration for smoother operation and better control at the wand.
• VRC unloader supports precise pressure adjustment and dependable bypass control under trigger cycling.
• Built-in chemical injection supports detergent application for tougher jobs and faster results.
• Forged brass and stainless components support corrosion resistance and long service life in wet environments.
• Break-in oil, sight glass, and vented dipstick simplify startup checks and routine maintenance.

Typical Applications

• Residential pressure washing of cars, trucks, siding, decks, and patios.
• Outdoor furniture cleaning and light contractor work.
• Equipment and tool washing in small shops and garages.
• Detergent-assisted cleaning of oily or greasy surfaces.
