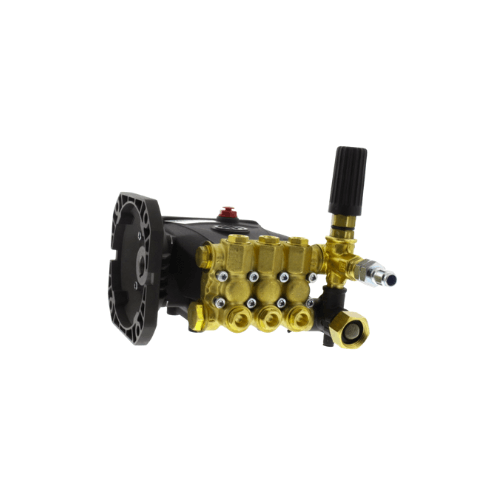

RCV25G27EF8SXVRCIDR Left-Hand Gas Triplex | 2.5 GPM 2700 PSI

RCV25G27EF8SXVRCIDR by Annovi Reverberi — RC Series Left-Hand Electric Triplex Plunger Pump with VRC Unloader, Chemical Injector, and Integrated Dump Regulator | 2.5 GPM | 2,700 PSI | Brass Manifold | 5/8″ Hollow Shaft | NEMA 56C F8 Electric Motor Mount | 3,400 RPM

The RCV25G27EF8SXVRCIDR by Annovi Reverberi is a commercial-grade RC Series triplex ceramic plunger pump built for NEMA 56C electric motor-driven pressure washing systems requiring 2.5 GPM at 2,700 PSI in a left-hand shaft configuration with factory-integrated chemical injection and an Integrated Dump Regulator for instant pressure release at trigger release. Rated at 2.5 GPM and 2,700 PSI at 3,400 RPM, the RCV25G27EF8SXVRCIDR delivers 6,750 cleaning units — combining 2.5 GPM output with 2,700 PSI cleaning force for fleet and equipment washing, commercial property cleaning, facility maintenance, and custom OEM electric pressure washer builds — through a precision-machined brass manifold, solid ceramic plungers, stainless steel valves, and an F8 NEMA 56C flange with 5/8″ hollow shaft. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RCV25G27EF8SXVRCIDR arrives factory-configured and factory-tested, ready to deliver from the first startup.

The RCV25G27EF8SXVRCIDR combines three factory-installed features that make it purpose-built for specialized electric system applications: the SX left-hand shaft configuration for frames and installations where the pump shaft must exit from the left side, the VRC adjustable unloader with integrated chemical injection for on-board pressure control and detergent capability, and the Integrated Dump Regulator (DR) for instant system pressure release at trigger release. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated technical support — this pump arrives pre-filled with factory break-in oil, factory-tested, and ready for installation. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, the RCV25G27EF8SXVRCIDR is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The RCV25G27EF8SXVRCIDR Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every RCV25G27EF8SXVRCIDR ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched VRC/DR assembly for 2,700 PSI — the VRC adjustable unloader, chemical injector, and Integrated Dump Regulator are factory-calibrated for this pump’s 2.5 GPM / 2,700 PSI duty point as a complete system.
• Factory-approved configuration — the complete assembly is Annovi Reverberi’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every RCV25G27EF8SXVRCIDR exits the manufacturing facility with the full assembly mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader or injector specification — the most common source of pump system returns — before the pump leaves the box.
• Installation-ready — confirm NEMA 56C motor compatibility and left-hand frame geometry, mount via the F8 flange, connect system hoses, connect the detergent supply line, and start. The RCV25G27EF8SXVRCIDR arrives engineered, assembled, and ready.

Decoding the RCV25G27EF8SXVRCIDR Model Number

What Every Segment of This Annovi Reverberi Pump Designation Tells You

• RCV — Pump series: RC Series triplex plunger pump — Annovi Reverberi’s compact commercial electric motor pump platform
• 25G — Pump series identifier for this RCV configuration
• 27 — Maximum pressure: 2,700 PSI — 2.5 × 2,700 = 6,750 cleaning units
• E — Shaft type: Electric shaft — hollow shaft configuration for direct electric motor coupling
• F8 — Flange type: NEMA 56C flange — direct coupling to NEMA 56C electric motors with 5/8″ hollow shaft (Annovi Reverberi part AR1584)
• SX — Shaft orientation: Left-hand configuration — pump shaft exits from the left side of the crankcase, engineered for frames, cabinets, and installations where left-hand motor-to-pump alignment is required
• VRC — Unloader family: VRC series adjustable unloader — factory-installed pressure regulation with integrated chemical injection port
• I — Chemical injector: Included — downstream soap injector factory-integrated into the VRC assembly
• DR — Integrated Dump Regulator: instant pressure release at trigger release — system pressure drops immediately when the spray gun trigger is released rather than holding in the bypass circuit

Left-Hand SX Family — RCV25G27EF8SXVRCIDR vs RCV2G25EF8SXVRCIDR

Both models share the SX left-hand configuration and F8 NEMA 56C electric platform. Output and unloader family differ:

• RCV25G27EF8SXVRCIDR (this model) — 2.5 GPM / 2,700 PSI / 6,750 CU. VRC unloader with integrated injector and Dump Regulator. Higher output for commercial and fleet cleaning applications.
• RCV2G25EF8SXVRCIDR — 2.0 GPM / 2,500 PSI / 5,000 CU. VR unloader with IDR. Compact output for residential and light commercial left-hand installations.

Key Specifications

RCV25G27EF8SXVRCIDR Technical Details at a Glance

• Flow Rate: 2.5 GPM (gallons per minute)
• Maximum Pressure: 2,700 PSI
• Cleaning Units: 6,750 (GPM × PSI)
• Operating Speed: 3,400 RPM
• Pump Type: RC Series triplex ceramic plunger pump — smooth, low-pulsation output
• Shaft Orientation: Left-hand configuration (SX) — left-side shaft exit for specialized frame and cabinet installations

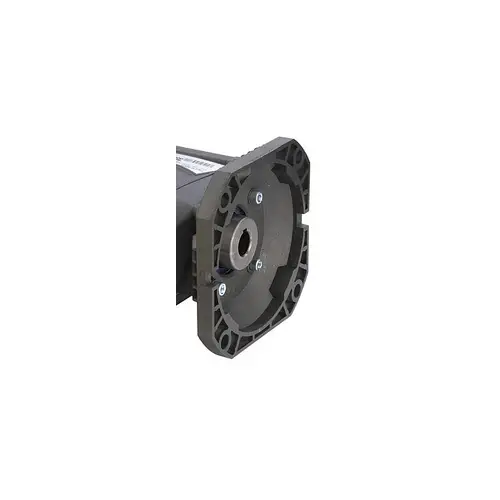

• Flange: F8 — NEMA 56C electric motor flange, 5/8″ hollow shaft (Annovi Reverberi part AR1584)

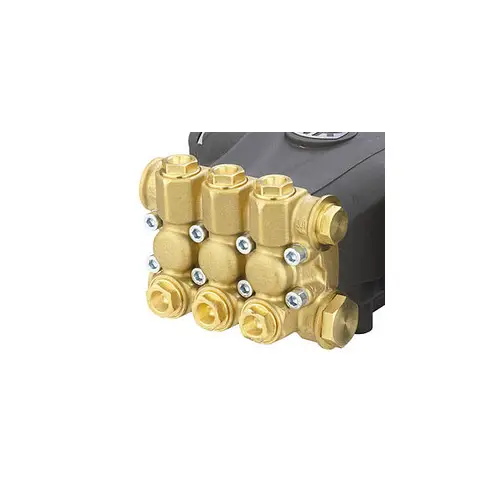

• Manifold Material: Precision-machined brass — pressure stability and corrosion resistance
• Plungers: Solid ceramic — wear resistance and consistent sealing performance
• Valves: Stainless steel — durability under frequent pressure cycling
• Bearings: Industrial-grade — long-term tolerances under continuous operation
• Serviceability: Oil sight glass and vented dipstick for simplified routine maintenance
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Unloader System: VRC series adjustable unloader with integrated chemical injector and Dump Regulator — factory-matched and factory-installed
• Connections: Banjo bolts and sealing O-rings — standard VR family hardware supplied for secure, leak-resistant installation
• Chemical Injector: Included — downstream venturi injector factory-integrated into VRC assembly
• Dump Regulator: Integrated — instant pressure release at trigger release
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

What’s Included in the Box

A Complete, Factory-Configured RCV25G27EF8SXVRCIDR Assembly Ready for Installation

• Factory-matched VRC adjustable unloader with active chemical injector and Integrated Dump Regulator — installed and calibrated for the 2.5 GPM / 2,700 PSI operating point; injector port ready for detergent supply line connection
• Banjo bolts and sealing O-rings — standard VR family hardware for secure, leak-resistant unloader connections
• Factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting hardware — for F8 NEMA 56C left-hand electric motor installation
• Instruction manual and parts diagram — complete installation, startup, operating, and maintenance procedures with Annovi Reverberi part numbers for every serviceable component

SX Left-Hand Configuration — Purpose-Built for Specialized Electric Installations

Left-Side Shaft. Correct Frame Geometry. OEM and Replacement Ready.

• Left-hand shaft for specific frame and cabinet geometry — the SX designation on the RCV25G27EF8SXVRCIDR confirms the pump shaft exits from the left side of the crankcase. Engineered for electric pressure washer frames, cabinets, and skid layouts where standard right-hand shaft orientation creates motor-to-pump alignment conflicts or plumbing routing interference.
• Correct for specialized OEM electric builds — custom OEM systems, compact cabinet washers, and specialty electric skid layouts where left-hand pump orientation is dictated by frame design, motor position, or cabinet door clearance. The RCV25G27EF8SXVRCIDR is the correct specification for these installations.
• Essential for left-hand replacement installs — direct drop-in replacement for existing left-hand pump configurations, preserving motor alignment and outlet port geometry without frame modifications or plumbing re-routing
• Same F8 NEMA 56C interface — left-hand configuration uses the same F8 flange and 5/8″ hollow shaft as standard orientation, supporting fast installation with repeatable alignment where left-hand geometry is required

Integrated Dump Regulator — Instant Pressure Release at Trigger Release

Pressure Drops Immediately. Reduced Bypass Stress. Enhanced Operator Safety.

• Instant pressure dump at trigger release — the Dump Regulator on the RCV25G27EF8SXVRCIDR releases system pressure immediately when the spray gun trigger is released, dropping pressure rather than holding 2,700 PSI in the bypass circuit during idle intervals
• Enhanced operator safety — instant pressure release means downstream hoses and accessories connected to the RCV25G27EF8SXVRCIDR are not holding full working pressure during pause intervals
• Reduced bypass circuit stress — dumping pressure at trigger release rather than holding it in bypass reduces sustained thermal and mechanical load on hoses and fittings during stop-start operation on the RCV25G27EF8SXVRCIDR
• VRC adjustable unloader base — the VRC unloader provides adjustable pressure control across the RCV25G27EF8SXVRCIDR operating range with the Dump Regulator delivering the instant release function at trigger release

Typical Applications

Where the RCV25G27EF8SXVRCIDR Delivers Best Results

• Electric pressure washer systems requiring left-hand shaft alignment — the RCV25G27EF8SXVRCIDR is the purpose-engineered specification for cabinet washers, compact skid systems, and specialty electric builds where left-hand shaft geometry is dictated by frame design or motor position
• Fleet, vehicle, and equipment washing — 2,700 PSI output and integrated chemical injection handle fleet vehicle contamination efficiently in left-hand electric wash bay installations
• Commercial property cleaning and facility maintenance — consistent 3,400 RPM electric output with on-board chemical capability supports scheduled commercial property cleaning programs from a compact left-hand electric assembly
• Custom OEM electric builds requiring compact, high-output left-hand pumps — the RCV25G27EF8SXVRCIDR’s factory-matched VRC/DR assembly, left-hand geometry, and 2.5 GPM / 2,700 PSI output support OEM builders designing specialized electric pressure washer platforms

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

RC Series Electric Performance Backed by Domestic Support

The RCV25G27EF8SXVRCIDR is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network. Every internal wear component — solid ceramic plungers, brass manifold seals and o-rings, stainless valve seats and springs, VRC unloader and Dump Regulator service parts, piston packing kits, and crankcase bearings — is stocked domestically through authorized distribution channels. Contractors, facility managers, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RCV25G27EF8SXVRCIDR and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

6,750 Cleaning Units. 2,700 PSI. 2.5 GPM. Left-Hand. F8 NEMA 56C. VRC. Instant Dump. Integrated Chemical Injection.

Italian Engineering. Left-Hand Electric Platform. Integrated Dump Regulator. US Warranty Coverage.

For OEM builders, facility managers, and contractors who need 2.5 GPM at 2,700 PSI in a left-hand NEMA 56C electric platform — with F8 flange direct coupling, SX left-hand shaft configuration for specialized frame and cabinet geometry, VRC adjustable unloader with integrated chemical injection, Integrated Dump Regulator for instant pressure release at trigger release, and a completely rebuildable platform backed by a 5-year US warranty — the RCV25G27EF8SXVRCIDR delivers the purpose-engineered left-hand electric solution from one of the global pressure pump industry’s most trusted manufacturers. Six thousand seven hundred fifty cleaning units. Left-hand configuration. Instant pressure dump. Integrated chemical injection. Five years of US warranty. A decade of service life.

Volume buyers can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing for quantity purchases across the complete Annovi Reverberi lineup.
