RCV25G27D-F8VRC Triplex Pump | 2.5 GPM 2700 PSI

RCV25G27D-F8VRC by Annovi Reverberi — RC Series Triplex Plunger Pump with VRC-B Unloader and Chemical Injector | 2.5 GPM | 2,700 PSI | Brass Manifold | 3/4″ Shaft | NEMA 56C F8 Gas Engine Drive

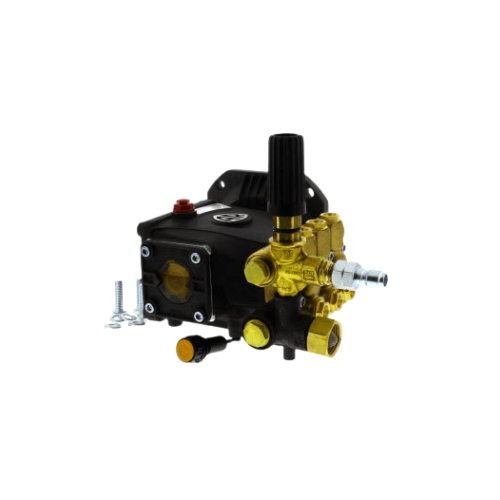

The RCV25G27D-F8VRC by Annovi Reverberi is a commercial-grade RC Series triplex ceramic plunger pump engineered for gas engine-driven pressure washing systems requiring 2.5 GPM at 2,700 PSI with factory-matched VRC-B pressure regulation and factory-integrated downstream chemical injection capability. Rated at 2.5 GPM and 2,700 PSI at 3,400 RPM, the RCV25G27D-F8VRC delivers 6,750 cleaning units — combining 2.5 GPM output with 2,700 PSI cleaning force for residential and commercial exterior cleaning, fleet and vehicle washing, construction equipment washdown, and general shop and facility cleaning — through a precision-machined brass manifold, solid ceramic plungers, stainless steel valves, and an F8 NEMA 56C face flange with 3/4″ shaft for direct gas engine coupling. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RCV25G27D-F8VRC arrives factory-configured and factory-tested, ready to deliver from the first startup.

The RCV25G27D-F8VRC carries the factory-installed AR23504 VRC-B series adjustable unloader — providing precise on-board pressure regulation and pump protection. The VRC-B unloader assembly integrates both adjustable pressure regulation and downstream chemical injection — delivering straight 2,700 PSI high-pressure rinsing and on-demand chemical pre-soak application from the same factory-configured assembly. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated technical support — the RCV25G27D-F8VRC arrives pre-filled with factory break-in oil, factory-tested, and ready for installation. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, this pump is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The RCV25G27D-F8VRC Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every RCV25G27D-F8VRC ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched AR23504 VRC-B unloader for 2,700 PSI — the VRC-B series adjustable unloader is factory-calibrated for this pump’s 2.5 GPM / 2,700 PSI duty point, ensuring predictable pressure behavior and stable bypass response from first startup.
• Factory-approved configuration — the complete assembly is Annovi Reverberi’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every RCV25G27D-F8VRC exits the manufacturing facility with the AR23504 unloader mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader specification — the most common source of pump system returns — before the pump leaves the box.
• Stress-free installation — mount to the engine, connect system hoses, add fuel, and start. The RCV25G27D-F8VRC arrives engineered, assembled, and ready.

Decoding the RCV25G27D-F8VRC Model Number

What Every Segment of This Annovi Reverberi Pump Designation Tells You

• RCV — Pump series: RC Series triplex plunger pump — Annovi Reverberi’s compact commercial gas engine pump platform
• 25G — Pump series identifier for this RCV configuration
• 27 — Maximum pressure: 2,700 PSI — 2.5 × 2,700 = 6,750 cleaning units
• D — Shaft version: Direct Drive — 3,400 RPM operating speed for direct gas engine coupling per Annovi Reverberi model designation convention
• F8 — Flange type: NEMA 56C face flange — 3/4″ shaft for direct gas engine coupling on the F8 series G configuration per Annovi Reverberi model designation
• VR — Unloader family: VR series adjustable unloader (AR23504) — RC Series VRC-B pressure regulation and bypass control; factory-installed and factory-calibrated
• C — Chemical injector: Included — downstream soap injector factory-integrated into the VRC-B assembly for chemical pre-soak and rinse capability

Key Specifications

RCV25G27D-F8VRC Technical Details at a Glance

• Flow Rate: 2.5 GPM (gallons per minute)
• Maximum Pressure: 2,700 PSI
• Cleaning Units: 6,750 (GPM × PSI)
• Operating Speed: 3,400 RPM
• Pump Type: RC Series triplex ceramic plunger pump — three-piston crankshaft-driven design for smooth, low-pulsation output

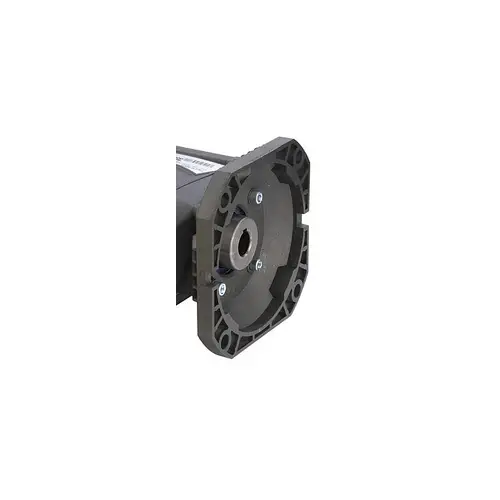

• Flange: F8 — NEMA 56C face, 3/4″ shaft, gas engine direct drive (F8 series G configuration per Annovi Reverberi model designation)

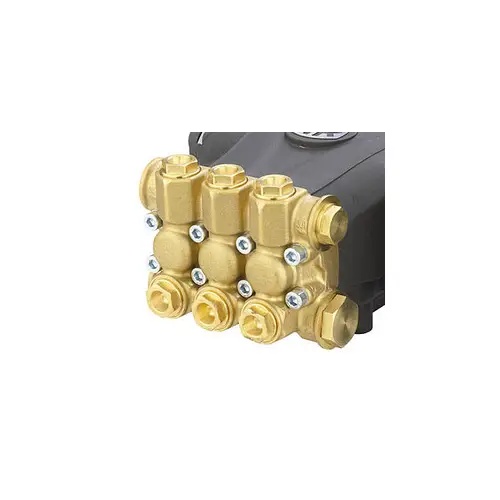

• Manifold Material: Precision-machined brass — pressure stability and corrosion resistance
• Plungers: Solid ceramic — wear resistance and consistent sealing performance
• Valves: Stainless steel — durability under frequent pressure cycling
• Bearings: Industrial-grade — long-term tolerances under continuous operation
• Serviceability: Oil sight glass and vented dipstick for simplified routine maintenance
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Unloader System: VRC-B series (AR23504) — factory-installed adjustable unloader; RC Series-specific pressure regulation
• Chemical Injector: Included — downstream venturi injector factory-integrated into VRC-B assembly (C designation)
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

What’s Included in the Box

A Complete, Factory-Configured RCV25G27D-F8VRC Assembly Ready for Installation

• Factory-matched AR23504 VRC-B adjustable unloader — installed and calibrated for the 2.5 GPM / 2,700 PSI operating point
• Banjo bolts and sealing O-rings — standard VRC family hardware for secure, leak-resistant unloader connections
• Factory-integrated chemical injector (C designation) — downstream venturi injector factory-installed in the VRC-B assembly; injector port ready for detergent supply line connection
• Factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting hardware — for F8 NEMA 56C face gas engine installation
• Instruction manual and parts breakdown — installation, startup, operating, and maintenance procedures with Annovi Reverberi part numbers for every serviceable component

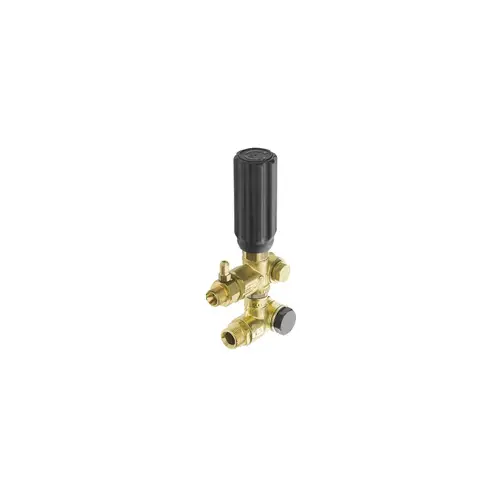

VRC-B Unloader (AR23504) — Adjustable Pressure Control and Chemical Injection at 2,700 PSI

RC Series-Specific. Factory-Set. Integrated Chemical Feed. Gas Engine Ready.

• RC Series-specific unloader design — the AR23504 VRC-B unloader on the RCV25G27D-F8VRC is engineered for the RC pump platform, providing factory-calibrated pressure regulation matched to this pump’s 2.5 GPM / 2,700 PSI output characteristics
• Adjustable pressure regulation — set operating pressure precisely for different nozzle sizes, surface types, and cleaning tasks. Compatible with contractor spray tips, surface cleaners, and turbo nozzles rated for 2,700 PSI.
• Bypass protection at trigger release — the AR23504 unloader diverts flow when the trigger gun is released on the RCV25G27D-F8VRC, protecting the pump from pressure spikes during pause-and-resume cleaning operations
• Integrated downstream chemical injection — the C designation in VRC confirms the factory-integrated downstream injector on the RCV25G27D-F8VRC draws detergent or pre-soak solution when the operator switches to low-pressure application mode. No separate injector hardware required.
• Chemical pre-soak and rinse at 2.5 GPM / 2,700 PSI — chemical application breaks down contamination; full 2,700 PSI / 2.5 GPM rinse removes loosened material at 6,750 cleaning units. Switch between application and rinse without changing tools.

Typical Applications

Where the RCV25G27D-F8VRC Delivers Best Results

• Residential and commercial exterior cleaning — driveways, siding, storefronts, and parking areas where the RCV25G27D-F8VRC’s 2,700 PSI gas engine output delivers consistent professional results with chemical managed through an external system or a user-installed injector
• Fleet and vehicle washing operations — trucks, vans, and service vehicles where 2.5 GPM output and 2,700 PSI cleaning force handle road film and surface contamination on portable gas engine-powered systems
• Construction and equipment washdown — jobsite equipment, tools, and concrete surfaces where the RCV25G27D-F8VRC’s reliable direct-drive output handles standard construction contamination
• General-purpose shop, warehouse, and small plant cleaning — compact gas engine builds where the RCV25G27D-F8VRC’s F8 direct-mount, factory-matched AR23504 unloader, and integrated VRC-B chemical injection support versatile installation across contractor and facility cleaning programs
• Retrofit and replacement installs — the RCV25G27D-F8VRC’s F8 NEMA 56C face geometry simplifies retrofit installations where maintaining original mount geometry and hose routing is required

For operators who prefer a fully configured direct-drive system rather than a bare pump assembly, WSHPWR also carries complete gas and diesel engine pump packages ready to mount on a frame or trailer.

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

RC Series Performance Backed by Domestic Support

The RCV25G27D-F8VRC is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network. Every internal wear component — solid ceramic plungers, brass manifold seals and o-rings, stainless valve seats and springs, AR23504 VRC-B unloader service parts, piston packing kits, and crankcase bearings — is stocked domestically through authorized distribution channels. Contractors, fleet operators, facility managers, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RCV25G27D-F8VRC and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

6,750 Cleaning Units. 2,700 PSI. 2.5 GPM. F8 Gas Engine. VRC-B AR23504. Integrated Chemical Injection.

Italian Engineering. Gas Engine Direct Drive. Factory-Approved VRC-B Assembly. US Warranty Coverage.

For residential users, commercial contractors, fleet operators, and OEM equipment builders who need 2.5 GPM at 2,700 PSI on a gas engine platform — with F8 NEMA 56C face flange and 3/4″ shaft for direct engine coupling, factory-matched AR23504 VRC-B adjustable unloader for precise pressure control, factory-integrated chemical injection via the VRC-B C-designation assembly, and a completely rebuildable platform backed by a 5-year US warranty — the RCV25G27D-F8VRC delivers a purpose-engineered compact commercial solution from one of the global pressure pump industry’s most trusted manufacturers. Six thousand seven hundred fifty cleaning units. Direct gas engine drive. Integrated chemical injection. Five years of US warranty. A decade of service life.

Volume buyers can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing for quantity purchases across the complete Annovi Reverberi lineup.
