RCV25G27D-F8 2.5 GPM 2700 PSI Pump | 3/4″ C

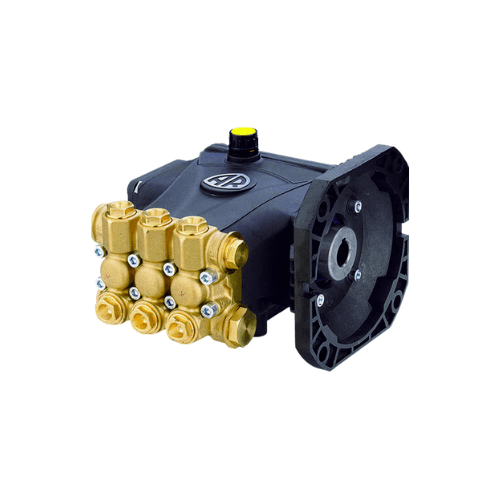

RCV25G27D-F8 — 2.5 GPM, 2700 PSI, 3400 RPM Horizontal Triplex Pump, F8 Mount

• Durable horizontal triplex ceramic plunger pump for medium-duty and contractor cleaning cycles.
• Delivers 2.5 GPM at 2700 PSI at 3400 RPM in a compact direct-drive package.
• F8 mount with 3/4″ shaft configuration supports common small-engine pressure washer frames.
• WSHPWR.com-ready upgrade or replacement where an F8-mounted gas pump is specified.

Performance Specifications

• Model: RCV25G27D-F8.
• Flow Rate: 2.5 GPM.
• Maximum Pressure: 2700 PSI.
• Operating Speed: 3400 RPM.
• Pump Type: Horizontal triplex ceramic plunger pump.
• Shaft: 3/4″ shaft with F8 mount.
• Construction: Forged brass manifold, solid ceramic plungers, stainless steel valves.
• Warranty: Manufacturer warranty included.

Mounting & Integration

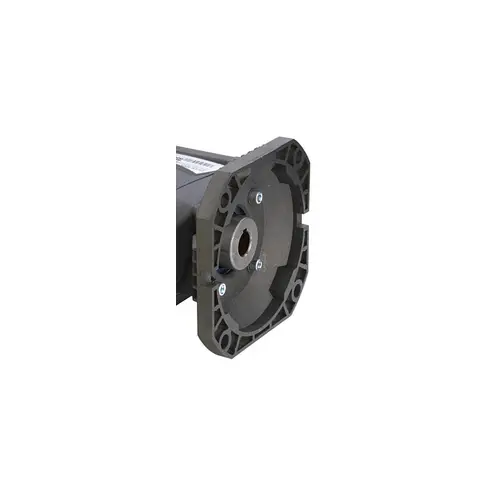

• F8 direct-mount configuration supports fast installation and consistent alignment for high-speed operation.
• Compact pump body integrates cleanly into portable carts, contractor frames, and OEM assemblies.
• Designed for replacement installs where maintaining original mount geometry and plumbing routing is critical.
• Well-suited for builders needing dependable 2.5 GPM output with higher working pressure in a compact footprint.

RCV25G27D-F8 — 2.5 GPM, 2700 PSI, 3400 RPM Horizontal Triplex Pump

Included Components

• Pre-assembled RCV25G27D-F8 pump.
• Factory-filled oil system for immediate use.
• Instruction manual and schematic.

Materials & Construction

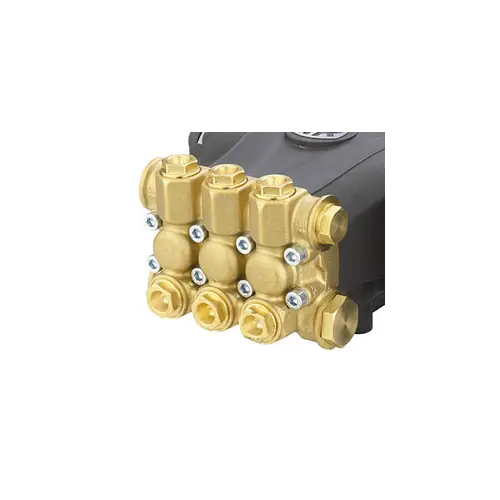

• Forged brass manifold engineered for pressure stability and corrosion resistance.
• Solid ceramic plungers selected for wear resistance and consistent sealing performance.
• Stainless steel valves designed for durability under frequent pressure cycling.
• High-grade seals and internal components built to support extended service intervals.
• Industrial-grade bearings and hardened parts to maintain long-term tolerances.

Quality Control & Validation

• Factory pressure-tested prior to packaging.
• Sealing integrity and output verification performed during final inspection.
• Critical assembly checks completed to confirm consistent performance and reliability.
• Packaged to protect mounting surfaces and internal components during shipment.

Operating Guidance

• Use clean, filtered water supply within manufacturer requirements.
• Match engine horsepower and operating RPM to the intended pressure and flow.
• Confirm secure mounting and proper drive engagement before initial start-up.
• Limit extended bypass operation per best practice to reduce heat buildup in the pump and plumbing.
• Monitor oil level and condition routinely, and follow scheduled maintenance intervals.

Key Features & Benefits

• Triplex design provides smooth, low-vibration flow for extended equipment life.
• Forged brass manifold resists corrosion and pressure fatigue in wash environments.
• Solid ceramic plungers support long service life in repeated duty cycles.
• Stainless valves provide reliable sealing performance and consistent output over time.
• Compact footprint integrates easily into portable and OEM frames.

Typical Applications

• Residential and light commercial exterior cleaning.
• Vehicle and equipment washing for contractors and homeowners.
• Property maintenance for schools, apartments, and small facilities.
• Replacement pump for F8-mounted gas pressure washer systems.
