RCV25G27DF8VRCIDR Triplex Pump | 2.5 GPM 2700 PSI

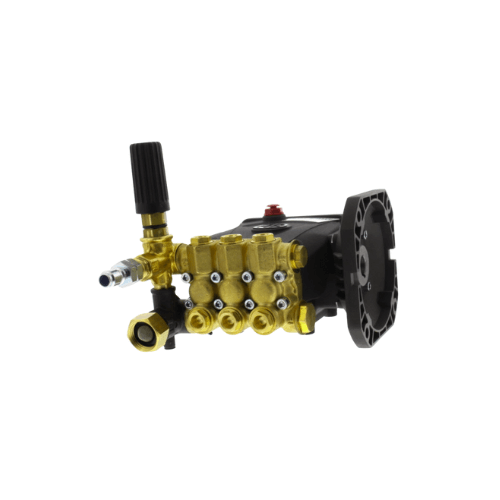

RCV25G27DF8VRCIDR by Annovi Reverberi — RC Series Triplex Plunger Pump with VRC Unloader, Chemical Injector, and Integrated Dump Regulator | 2.5 GPM | 2,700 PSI | Brass Manifold | F8 Gas Engine Drive | 3,400 RPM

The RCV25G27DF8VRCIDR by Annovi Reverberi is a high-performance RC Series triplex ceramic plunger pump engineered for direct gas engine-driven pressure washing systems requiring 2.5 GPM at 2,700 PSI with factory-integrated chemical injection and an Integrated Dump Regulator for instant pressure release at trigger release. Rated at 2.5 GPM and 2,700 PSI at 3,400 RPM, the RCV25G27DF8VRCIDR delivers 6,750 cleaning units — combining 2.5 GPM output with 2,700 PSI cleaning force for commercial pressure washing, fleet and equipment cleaning, industrial machinery, and heavy-duty residential applications — through a precision-machined brass manifold, solid ceramic plungers, stainless steel valves, and an F8 direct-drive flange for direct coupling to compatible gas engines. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RCV25G27DF8VRCIDR arrives factory-configured and factory-tested, ready to deliver from the first startup.

The RCV25G27DF8VRCIDR combines three factory-installed features in a single assembly: the VRC adjustable unloader for on-board pressure regulation, the C-designation chemical injector for downstream detergent application, and the Integrated Dump Regulator (IDR) for instant system pressure release the moment the trigger gun is released. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated technical support — this pump arrives pre-filled with factory break-in oil, factory-tested, and ready for installation. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, the RCV25G27DF8VRCIDR is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The RCV25G27DF8VRCIDR Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every RCV25G27DF8VRCIDR ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched VRC/IDR assembly for 2,700 PSI — the VRC adjustable unloader, integrated chemical injector, and Integrated Dump Regulator are factory-calibrated for this pump’s 2.5 GPM / 2,700 PSI duty point as a complete system.
• Factory-approved configuration — the complete assembly is Annovi Reverberi’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every RCV25G27DF8VRCIDR exits the manufacturing facility with the full VRC/IDR assembly mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader or injector specification — the most common source of pump system returns — before the pump leaves the box.
• Stress-free installation — mount to the engine, connect system hoses, connect the detergent supply line to the injector port, add fuel, and start. The RCV25G27DF8VRCIDR arrives engineered, assembled, and ready.

Decoding the RCV25G27DF8VRCIDR Model Number

What Every Segment of This Annovi Reverberi Pump Designation Tells You

• RCV — Pump series: RC Series triplex plunger pump — Annovi Reverberi’s compact commercial pump platform
• 25G — Pump series identifier for this RCV configuration
• 27 — Maximum pressure: 2,700 PSI — 2.5 × 2,700 = 6,750 cleaning units
• D — Shaft version: Direct Drive — 3,400 RPM operating speed for direct gas engine coupling per Annovi Reverberi model designation convention

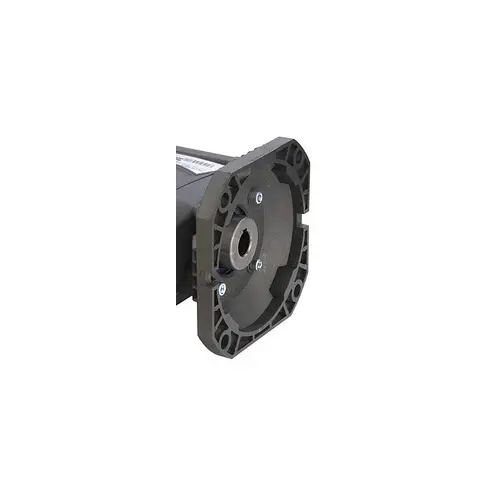

• F8 — Flange type: F8 direct-drive flange for compatible gas engine coupling
• VRC — Unloader with injector: VR series adjustable unloader (VR) plus factory-integrated chemical injector (C designation)
• IDR — Integrated Dump Regulator: instant pressure release at trigger release — system pressure drops immediately when the spray gun trigger is released rather than holding in the bypass circuit

Key Specifications

RCV25G27DF8VRCIDR Technical Details at a Glance

• Flow Rate: 2.5 GPM (gallons per minute)
• Maximum Pressure: 2,700 PSI
• Cleaning Units: 6,750 (GPM × PSI)
• Operating Speed: 3,400 RPM
• Pump Type: RC Series triplex ceramic plunger pump — smooth, low-pulsation output
• Flange: F8 — direct-drive gas engine flange

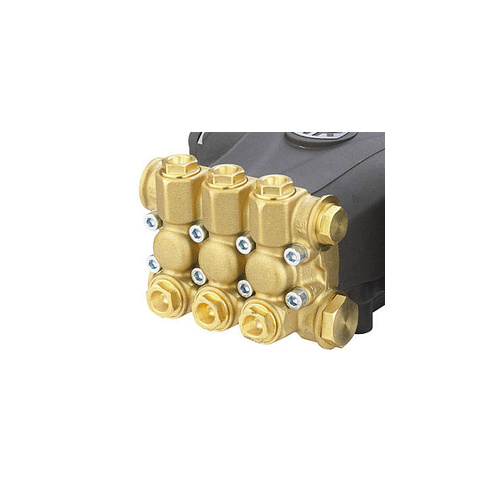

• Manifold Material: Precision-machined brass — pressure stability and corrosion resistance
• Plungers: Solid ceramic — wear resistance and consistent sealing performance
• Valves: Stainless steel — durability under frequent pressure cycling
• Bearings: Industrial-grade — long-term tolerances under continuous operation
• Serviceability: Oil sight glass and vented dipstick for simplified routine maintenance
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Unloader System: VRC — VR series adjustable unloader with factory-integrated chemical injector; factory-matched and factory-installed
• Dump Regulator: IDR — Integrated Dump Regulator for instant pressure release at trigger release
• Chemical Injector: Included — downstream venturi injector factory-integrated via C designation in VRC assembly
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

What’s Included in the Box

A Complete, Factory-Configured RCV25G27DF8VRCIDR Assembly Ready for Installation

• Factory-matched VRC adjustable unloader with active chemical injector and Integrated Dump Regulator — installed and calibrated for the 2.5 GPM / 2,700 PSI operating point; injector port ready for detergent supply line connection
• Banjo bolts and sealing O-rings — standard VR family hardware for secure, leak-resistant unloader connections
• Factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting hardware — for F8 direct-drive gas engine installation
• Instruction manual and exploded parts diagram — installation, startup, operating, and maintenance procedures with Annovi Reverberi part numbers for every serviceable component

Integrated Dump Regulator — Instant Pressure Release at Trigger Release

Pressure Drops Immediately. Reduced Bypass Stress. Safer Stop-Start Operation.

• Instant pressure dump at trigger release — the IDR on the RCV25G27DF8VRCIDR releases system pressure immediately when the spray gun trigger is released, dropping pressure rather than holding 2,700 PSI in the bypass circuit during idle intervals
• Enhanced operator safety — instant pressure release means downstream hoses, guns, and accessories connected to the RCV25G27DF8VRCIDR are not holding full working pressure during pause intervals between cleaning passes
• Reduced bypass circuit stress — dumping pressure at trigger release reduces sustained thermal and mechanical load on hoses and fittings during stop-start operation on the RCV25G27DF8VRCIDR
• VRC adjustable base — the VRC unloader provides full adjustable pressure control across the RCV25G27DF8VRCIDR operating range with the IDR delivering the instant dump function at trigger release

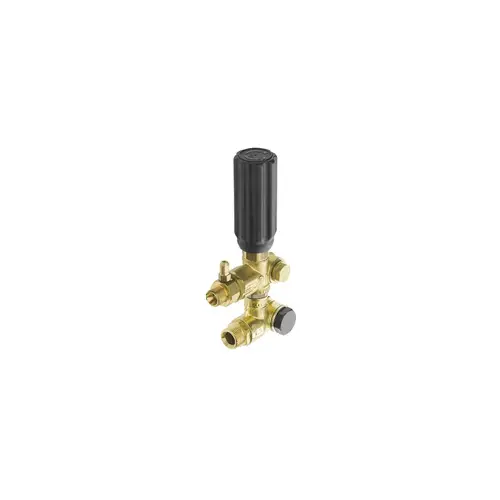

VRC — Adjustable Pressure Control and Chemical Injection at 2,700 PSI

Factory-Set. Adjustable. Integrated Chemical Feed. Gas Engine Rated.

• Adjustable pressure regulation — the VRC unloader on the RCV25G27DF8VRCIDR supports precise pressure tuning for different nozzle sizes, surface types, and cleaning tasks while protecting the pump from overload conditions at 3,400 RPM gas engine speed
• Integrated downstream chemical injection — the C-designation injector in the VRC assembly draws detergent or pre-soak solution when the operator switches to low-pressure application mode. No separate injector hardware required on the RCV25G27DF8VRCIDR.
• Chemical pre-soak and rinse at 2.5 GPM / 2,700 PSI — chemical application breaks down grease, heavy soil, and surface contamination; full 2,700 PSI / 2.5 GPM rinse removes loosened material at 6,750 cleaning units. Switch between application and rinse without changing tools.
• Compact integrated assembly — VRC/IDR construction on the RCV25G27DF8VRCIDR reduces external plumbing complexity and keeps the assembly clean and serviceable on portable carts, contractor frames, and OEM installations
• Injector maintenance — flush the injector circuit with clean water after every detergent session and limit extended bypass operation to reduce heat buildup

Typical Applications

Where the RCV25G27DF8VRCIDR Delivers Best Results

• Commercial pressure washing of sidewalks, buildings, and public spaces — the RCV25G27DF8VRCIDR’s 2,700 PSI output, integrated chemical injection, and IDR instant pressure release support safe, efficient stop-start commercial cleaning workflows
• Fleet and equipment cleaning for transportation and construction — 2.5 GPM output and integrated chemical capability handle fleet vehicle and heavy equipment contamination efficiently on gas engine-powered contractor systems
• Industrial cleaning of machinery, floors, and work areas — the RCV25G27DF8VRCIDR’s 6,750 cleaning unit output and on-demand chemical feed handle industrial surface contamination with IDR safety benefits during frequent trigger cycling
• Heavy-duty residential use requiring professional performance — the RCV25G27DF8VRCIDR delivers commercial-grade 2,700 PSI output with integrated chemical injection and IDR instant dump in a compact gas engine-driven assembly

For operators who prefer a fully configured direct-drive system rather than a bare pump assembly, WSHPWR also carries complete gas and diesel engine pump packages ready to mount on a frame or trailer.

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

RC Series Performance Backed by Domestic Support

The RCV25G27DF8VRCIDR is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network. Every internal wear component — solid ceramic plungers, brass manifold seals and o-rings, stainless valve seats and springs, VRC unloader and IDR service parts, piston packing kits, and crankcase bearings — is stocked domestically through authorized distribution channels. Contractors, fleet operators, facility managers, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RCV25G27DF8VRCIDR and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

6,750 Cleaning Units. 2,700 PSI. 2.5 GPM. VRC Unloader. Integrated Chemical Injection. Instant Dump Regulator.

Italian Engineering. Gas Engine Direct Drive. VRC Assembly. IDR Instant Pressure Release. US Warranty Coverage.

For residential users, commercial contractors, fleet operators, and OEM equipment builders who need 2.5 GPM at 2,700 PSI on a gas engine platform — with factory-matched VRC adjustable unloader and integrated chemical injection for on-demand detergent capability, Integrated Dump Regulator for instant pressure release at trigger release, and a completely rebuildable platform backed by a 5-year US warranty — the RCV25G27DF8VRCIDR delivers a purpose-engineered compact commercial solution from one of the global pressure pump industry’s most trusted manufacturers. Six thousand seven hundred fifty cleaning units. Direct gas engine drive. Integrated chemical injection. Instant pressure dump. Five years of US warranty. A decade of service life.
