RCV2G25EF8VRCID 2.0 GPM 2500 PSI | 3400 RPM pump with Unloader

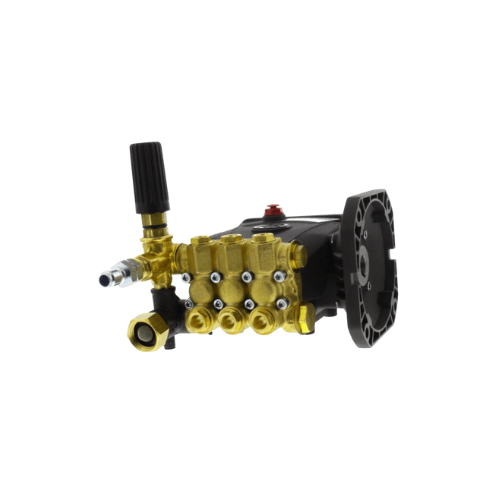

RCV2G25EF8VRCID — 2.0 GPM, 2500 PSI Electric Triplex Pump

with VRC Unloader & Right-Hand Shaft

• Professional-grade triplex plunger pump built for residential and light commercial electric pressure washer systems.
• Delivers 2.0 GPM at 2500 PSI at 3400 RPM in a compact footprint for high-output direct-drive builds.
• Right-hand shaft configuration with F8 NEMA 56C flange supports clean integration on compatible motor packages.
• VRC unloader provides smooth, adjustable pressure regulation and dependable bypass protection during trigger cycling.

Performance Specifications of RCV2G25EF8VRCID

• Flow Rate: 2.0 GPM.
• Maximum Pressure: 2500 PSI.
• Operating Speed: 3400 RPM.
• Shaft Type: Right-hand shaft, 5/8″ hollow keyway.

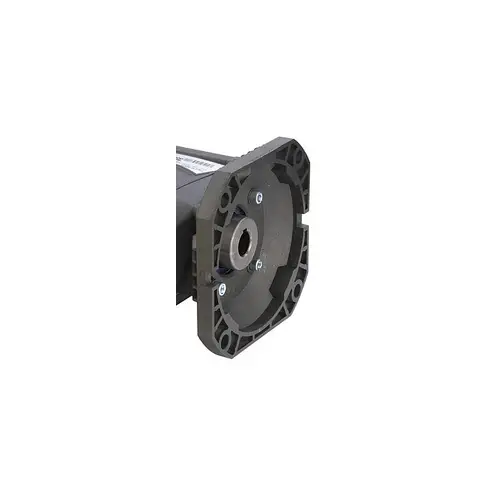

• Flange Type: F8 NEMA 56C flange mount.
• Unloader: VRC unloader.
• Pump Type: Triplex ceramic plunger pump.
• Construction: Brass manifold, stainless steel valves, ceramic plungers.
• Warranty: 5-year manufacturer warranty with nationwide support.

Mounting & Integration

• Right-hand shaft orientation supports specific equipment layouts where shaft direction and plumbing routing must match the original build.
• Direct-drive 56C mounting supports fast installation with repeatable alignment in high-speed electric systems.
• Factory-mounted unloader reduces external plumbing complexity and keeps the assembly compact and serviceable.
• Ideal for replacement installs where preserving motor mount geometry, shaft orientation, and hose routing is required.

Included Components

• RCV2G25EF8VRCID pump with pre-filled break-in oil.
• Installed VRC unloader assembly.
• Oil sight glass and vented dipstick.
• Operator’s manual and parts schematic.
• Professional packaging for safe transport.

Materials & Construction

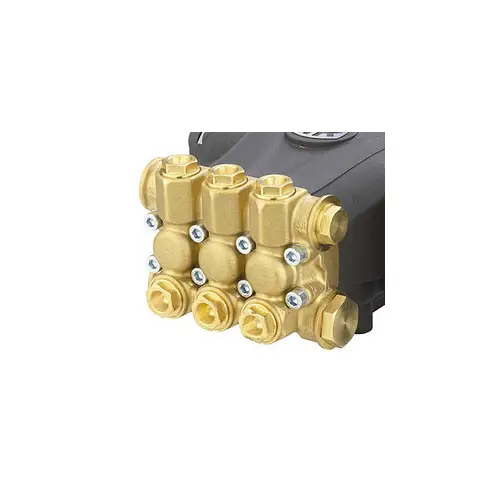

• Precision-machined brass manifold engineered for pressure stability and corrosion resistance.
• Ceramic plungers selected for wear resistance and consistent sealing performance.
• Stainless steel valves designed for durability under frequent pressure cycling.
• High-grade seals and internal components built to support extended service intervals.
• Industrial-grade bearings and hardened parts to maintain long-term tolerances.

Quality Control & Validation

• Factory pressure-tested prior to packaging.
• Sealing integrity and output verification performed during final inspection.
• Critical assembly checks completed to confirm consistent performance and reliability.
• Packaged to protect mounting surfaces and internal components during shipment.

Operating Guidance for RCV2G25EF8VRCID

• Use clean, filtered water supply within manufacturer requirements.
• Match electric motor horsepower and operating RPM to the intended pressure and flow.
• Set working pressure with the VRC unloader before placing the unit into continuous service.
• Limit extended bypass operation per best practice to reduce heat buildup in the pump and plumbing.
• Monitor oil level and condition routinely, and follow scheduled maintenance intervals.

Key Features & Benefits

• Triplex design minimizes pulsation and supports efficient pressure delivery versus typical axial designs.
• VRC unloader supports precise pressure adjustment and safe bypass operation under trigger cycling.
• Right-hand shaft layout matches specific engine and motor configurations for correct fitment.
• Oil sight glass and vented dipstick simplify fluid checks and service planning.
• Factory testing and pre-filled oil support reliable startup and consistent performance.

Typical Applications

• Vehicle washing for cars, RVs, motorcycles, and light commercial fleets.
• Residential cleaning: patios, decks, fences, driveways, and siding.
• Small storefront and walkway maintenance.
• Workshop and facility cleaning where a right-hand shaft is required.
