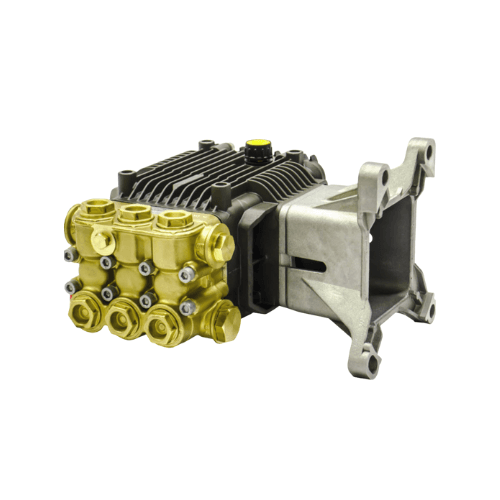

SXMV3G40D-F24 3.0 GPM 4000 PSI | 3400 RPM F24 Annovi Reverberi pump

Overview

The Annovi Reverberi SXMV3G40D-F24 is a commercial-grade triplex plunger pump designed
for demanding high-pressure cleaning applications. Delivering
3.0 GPM at 4,000 PSI while running at 3,400 RPM, this pump combines powerful
output with long-lasting durability, making it a trusted choice for contractors, fleet operators, facility
managers, and industrial users who require consistent cleaning performance.

Built with a forged brass manifold, solid ceramic plungers, and
stainless steel valves, the SXMV3G40D-F24 resists wear, heat, and chemical exposure in
demanding environments. Its direct-mount F24 flange and 1″ hollow keyway shaft
allow seamless coupling to gas or diesel engines, simplifying installation and ensuring maximum operational
efficiency.

Key Specifications

• Model: SXMV3G40D-F24
• Flow Rate: 3.0 GPM (gallons per minute)
• Maximum Pressure: 4,000 PSI
• Speed: 3,400 RPM
• Pump Type: Triplex plunger, direct-drive
• Flange: F24 engine flange for secure direct coupling
• Shaft Size: 1″ hollow keyway shaft
• Manifold: Forged brass for strength and corrosion resistance
• Plungers: Solid ceramic for long seal life and reduced wear
• Valves: Stainless steel for precise operation and extended service life
• Warranty: 5-year limited manufacturer’s warranty

What’s Included with SXMV3G40D-F24

• Factory break-in oil pre-filled in the crankcase for smooth startup and initial operation
• Vented dipstick for easy and accurate oil level checks
• Oil sight glass for quick visual monitoring of lubrication without disassembly
• Mounting hardware (bolts) for secure F24 engine attachment
• Detailed operation manual with installation guide, maintenance schedule, and parts schematic
• Each unit is factory-tested for pressure, flow, and operational reliability before shipment

How the SXMV3G40D-F24 Works

• Utilizes a triplex plunger system, where three ceramic plungers driven by a crankshaft
  create consistent water flow and even pressure output, reducing pulsation and improving cleaning efficiency.
• The direct-drive F24 flange and 1″ hollow shaft allow fast, secure
  mounting to compatible engines, minimizing setup time and mechanical losses.
• Operating at 3,400 RPM, the pump delivers high-speed, high-pressure cleaning power for
  applications that require rapid turnaround and maximum cleaning force.
• The integrated sight glass and vented dipstick simplify oil level
  monitoring, helping maintain proper lubrication and extend pump life.

Premium Features & Benefits

• 4,000 PSI max pressure: Tackles the toughest dirt, grease, and industrial buildup.
• 3.0 GPM flow: Optimized for high-pressure washing without wasting water.
• Forged brass manifold: Provides structural strength and corrosion resistance in harsh environments.
• Ceramic plungers: Extend seal life, reduce wear, and improve long-term reliability.
• Stainless steel valves: Ensure accurate water control and consistent performance.
• User-friendly maintenance: External dipstick and oil sight glass make checks quick and easy.
• Direct-mount design: F24 flange and 1″ hollow shaft simplify engine attachment and alignment.
• Commercial durability: Engineered for continuous-duty service in demanding applications.

Typical Applications

• Fleet maintenance: Trucks, buses, trailers, utility and delivery vehicles.
• Heavy equipment cleaning: Bulldozers, tractors, loaders, excavators, and construction machinery.
• Construction sites: Removing concrete residue, mud, paint, and industrial debris.
• Facility maintenance: Industrial wash bays, warehouse exteriors, docks, and loading areas.
• Agricultural use: Farm machinery, sprayers, livestock enclosures, and yard equipment.
• Commercial contractors: High-pressure surface cleaning and industrial wash services.

Warranty & Support

• 5-year limited warranty provides long-term protection and peace of mind.
• Backed by Annovi Reverberi’s nationwide parts and service network, making it easy to source
  seals, valves, and repair kits when needed.
• Factory testing and quality control help ensure consistent performance and reliability in the field.

Why Choose the Annovi Reverberi SXMV3G40D-F24?

• Ideal for users who demand maximum pressure, consistent flow, and industrial-grade reliability
  from their pressure washer pump.
• Combines a forged brass manifold, ceramic plungers, and
  stainless steel valves in a compact, direct-drive package.
• Designed to keep commercial and industrial operations running smoothly, even in tough
  environments and frequent-use applications.

 Summary

• The Annovi Reverberi SXMV3G40D-F24 triplex plunger pump delivers
  3.0 GPM at 4,000 PSI and 3,400 RPM, making it an excellent choice for high-pressure
  commercial and industrial cleaning.
• Featuring an F24 direct-mount flange, 1″ hollow shaft,
  forged brass manifold, ceramic plungers, and
  stainless steel valves, it is engineered for long-lasting durability and professional results.
• Backed by a 5-year warranty and nationwide service support, the SXMV3G40D-F24 provides
  maximum reliability, superior cleaning power, and long-term value for contractors, fleet operators, and
  industrial facilities.
