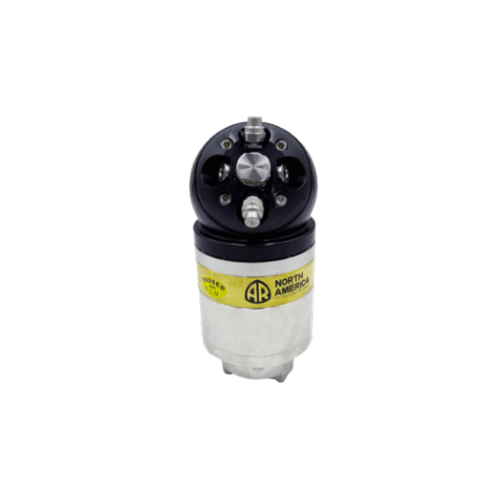

BISW060A-CF Bolondi Rotary Jet Head | 4-Nozzle

BISW060A-CF Bolondi Rotary Jet Head | 4-Nozzle

The Bolondi BISW060A-CF is a heavy-duty stainless steel rotary jet cleaning head designed for rigorous industrial and sanitary cleaning of tanks, containers, and vessels. Built in Reggio Emilia, Italy, this model is part of Bolondi’s professional SW series, delivering high-impact 360° cleaning at pressures up to 2,900 PSI (200 bar).

Engineered for CIP (Clean-in-Place) environments, the BISW060A-CF combines efficient hydraulic rotation, long service life, and full stainless-steel construction for maximum durability and hygiene.

How It Works

Self-Powered Water Turbine Drive

• Internal hydraulic turbine converts water pressure into rotation.
• No external motors, gearboxes, or electrical components required.
• Consistent rotational speed under load (approx. 100–150 RPM).

360° Rotary Spray Pattern

• Four precision-aligned nozzles create overlapping high-velocity jets.
• Ensures complete interior coverage with no blind spots.
• Scours surfaces, penetrates corners, and flushes debris efficiently.

Automated Cleaning Cycles

• Delivers repeatable, hands-free cleaning.
• Reduces operator involvement and manual scrubbing.
• Ideal for fixed CIP systems and mobile cleaning setups.

Construction & Materials

Full 316L Stainless Steel Body

• Superior corrosion resistance in caustic, acidic, and detergent environments.
• Food-grade and pharmaceutical safe construction.
• Maintains structural integrity under continuous high-pressure service.

Precision Machining

• Balanced, low-vibration rotation for consistent spray quality.
• Durable internal components withstand repeated high-velocity jet impact.
• Engineered for long service life with minimal wear.

Performance Specifications

Operating Parameters

• Maximum Pressure: 2,900 PSI (200 bar)
• Flow Range: 4–16 GPM depending on nozzle size
• Rotation: Self-spinning turbine drive
• Coverage: 360° full interior cleaning
• Nozzles: Four stainless steel jet nozzles
• Material: 316L stainless steel throughout
• Connection: Standard threaded inlet for CIP integration

Applications

Food & Beverage

• Dairy tanks and CIP wash vessels
• Brewing tanks, fermenters, and bright tanks
• Mixers, syrup tanks, and bottling equipment

Pharmaceutical & Biotechnology

• Reactors and batch vessels
• High-purity water tanks
• Stainless process containers

Chemical & Industrial

• Removal of scale and hardened residues
• Cleaning paint mixers, adhesive tanks, and coating vessels
• Surface treatment baths

Waste & Environmental Services

• Internal washing of collection tanks
• Wastewater process vessels

Benefits & Differentiators

High-Coverage Performance

• Four-nozzle layout eliminates blind spots.
• Full 360° cleaning ensures sanitary compliance.
• High-impact jet force reduces wash times.

Durability & Reliability

• 316L stainless steel construction maximizes service life.
• Balanced turbine reduces internal wear.
• Withstands continuous high-pressure operation.

BISW060A-CF Bolondi Rotary Jet Head | 4-Nozzle

Operational Efficiency

• No motors or gears—minimal maintenance.
• Reduces water, chemical, and energy consumption.
• Compact design fits through standard tank openings.

Integration & Delivery

System Compatibility

• Integrates with fixed CIP systems and portable wash carts.
• Standard threaded connection for quick installation.
• Suitable for small and large vessels.

Production & Lead Time

• Built to order in Reggio Emilia, Italy.
• Standard delivery: 8 weeks via air freight.
• Optional economy shipping: 14 weeks via ocean freight.

With its stainless steel design, four-nozzle 360° coverage, and self-powered turbine drive, the Bolondi BISW060A-CF delivers exceptional cleaning performance, durability, and efficiency for demanding industrial and sanitary applications.
