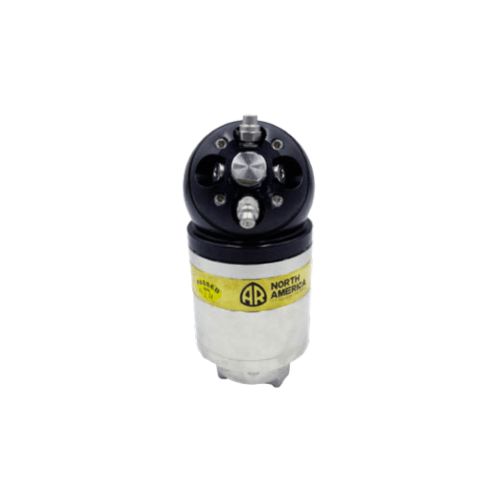

BISW060-2 Bolondi Rotary Cleaning Head | Dual Nozzle

BISW060-2 – Bolondi Dual Nozzle Rotary Cleaning Head – Stainless Steel, 240° Coverage

The Bolondi BISW060-2 is a compact, high-performance rotary cleaning head designed for industrial-grade partial coverage cleaning. Manufactured in Reggio Emilia, Italy, it provides a powerful 240° spray pattern ideal for targeted sanitation in tanks, bins, containers, and confined process equipment where full 360° coverage is unnecessary.

Built from OT58 brass, lightweight aluminum, and AISI 316L stainless steel, the BISW060-2 offers strength, corrosion resistance, and long service life. Rated up to 2,900 PSI (200 bar) and compatible with 4–16 GPM flow rates, it adapts easily to both light rinsing and heavy industrial cleaning.

How It Works

Water-Motor Powered Drive

• Self-contained drive system powered by incoming pressurized water.
• Internal turbine rotates dual spray arms at up to 150 RPM.
• No external motors, electronics, or gearboxes required.

Dual Nozzle Performance

• Two high-impact nozzles concentrate more force per jet than four-nozzle heads.
• Jets sweep a controlled 240° pattern for partial but complete surface coverage.
• Ideal for targeted zones and semi-enclosed vessels.

Construction & Materials

Engineered Material Mix

• 316L Stainless Steel – Superior corrosion resistance against chemicals, detergents, and high-temperature washdowns.
• OT58 Brass – Durable and precise, used in critical sealing and internal components.
• Aluminum Housing – Lightweight, strong, and easy to mount in mobile or fixed CIP systems.

This combination ensures reliable operation in harsh environments involving caustics, solvents, hot water, and wastewater.

BISW060-2 Bolondi Rotary Cleaning Head | Dual Nozzle

Performance Specifications

• Maximum Pressure: 2,900 PSI (200 bar)
• Flow Range: 4–16 GPM
• Rotation Speed: Up to 150 RPM
• Spray Pattern: 240° semi-coverage
• Nozzle Configuration: Two high-impact rotating nozzles
• Drive System: Water-motor powered

Applications & Use Cases

Industries

• Food & Beverage: Cleaning bins, totes, tanks, and mixers under sanitary compliance.
• Pharmaceuticals: Controlled-coverage CIP cleaning of process vessels and reactors.
• Chemicals: Targeted washdown of process containers and storage tanks.
• Automotive / Car Wash: Undercarriage cleaning requiring partial spray coverage.
• Waste Management: Cleaning bins, carts, and compactors in municipal & industrial facilities.
• General Industry: Semi-enclosed vessel cleaning in portable or fixed wash rigs.

Benefits & Differentiators

Performance Advantages

• Higher Jet Impact: Two nozzles produce stronger, more concentrated cleaning force.
• Water & Chemical Efficiency: 240° design minimizes consumption while maintaining coverage.
• Fast Cleaning Cycles: High RPM rotation shortens wash and rinse times.

Operational Benefits

• Compact Profile: Fits through small access points and tight installation spaces.
• Durable Build: Stainless steel and brass construction resists harsh chemicals and heat.
• Low Maintenance: Gear-free water-motor design reduces wear and service needs.

Integration & Availability

System Compatibility

• Easily integrates with CIP systems, mobile wash carts, and fixed industrial cleaning rigs.
• Standard threaded connections simplify installation.
• Reliable operation with no external drive components.

Ordering & Lead Times

• Built to order and configurable to system requirements.
• Standard lead times: 8 weeks (air freight) or 14 weeks (ocean).

With its dual-nozzle configuration, compact build, and efficient 240° spray zone, the Bolondi BISW060-2 is ideal for precise, reliable, cost-effective cleaning in confined or partial-coverage environments.
