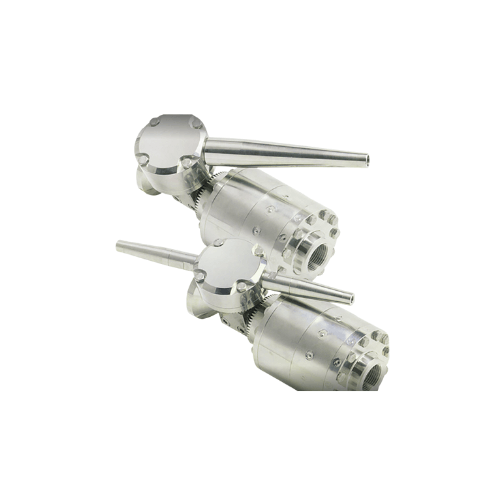

BIRC030P Bolondi Air Motor Tank Head | Rotary Cleaner

BIRC030P Bolondi Air Motor Tank Head | Rotary Cleaner

The Bolondi BIRC030P is a pneumatic-powered rotary cleaning head engineered specifically for use in hazardous, explosion-sensitive, or electrically restricted environments.
Where electrical sparking or static discharge poses a significant safety risk, this air motor–driven system provides a compliant, intrinsically safe solution for tank and vessel cleaning.
It is particularly effective in ATEX-rated zones, solvent storage tanks, flammable liquid processing facilities, refineries, and chemical plants.

By using compressed air instead of electrical or hydraulic drive systems, the BIRC030P eliminates ignition hazards while delivering high-pressure, high-impact cleaning performance.
Its stainless steel construction, reliable pneumatic motor, and precision-engineered spray nozzles make it indispensable for industries where safety and sanitation must coexist.

How It Works

A pneumatic motor powers the rotation of the spray head. When compressed air is supplied, the motor converts airflow into rotational motion, spinning the nozzle assembly at controlled speeds.
As pressurized water flows through the rotating nozzles, concentrated jet streams create a full 360° spray pattern for complete tank coverage.

Hybrid Cleaning Action

• Uniform spray coverage – consistent nozzle rotation even with water flow fluctuations.
• Aggressive impact force – high-velocity jets remove residues, films, and deposits with minimal chemical use.
• Safe in volatile atmospheres – no electrical components mean reduced explosion risks.

This design is highly valuable in facilities that process flammable liquids, volatile chemicals, or combustible dusts.

Performance Specifications

• Drive System: Pneumatic air motor (intrinsically safe, no electrical parts)
• Pressure Rating: Up to 200 bar (≈2,900 PSI)
• Flow Rate: 40–60 L/min (≈10–16 GPM), depending on nozzle configuration
• Spray Coverage: Full 360° internal tank coverage
• Materials: 316L stainless steel housing, spray arms, and internal components
• Safety Rating: Suitable for ATEX-classified environments

Materials & Construction

• 316L Stainless Steel: Superior corrosion resistance in chemically aggressive environments.
• Air Motor Drive: Industrial-grade pneumatic motor requiring minimal lubrication.
• Precision Nozzles: Balanced, high-velocity spray jets.
• Compact Profile: Fits small tank openings, IBCs, and vessel ports.
• Explosion-Safe Engineering: No wiring, no sparks, no heat generation.

BIRC030P Bolondi Air Motor Tank Head | Rotary Cleaner

Benefits & Differentiators

• Intrinsic Safety: No ignition risks in volatile areas.
• Full Coverage: 360° jet cleaning.
• Durability: Resilient to wear, solvents, and thermal cycling.
• Low Maintenance: Pneumatic system outlasts gear-driven units.
• Adaptability: Works in CIP systems, mobile rigs, and standalone setups.
• Regulatory Compliance: Supports ATEX, OSHA, and safety mandates.
• Built to Order: Engineered to specification; 8 weeks (air freight) or 14 weeks (standard).

Applications by Industry

• Chemical Processing: Reactors, solvent tanks, chemical mixers.
• Oil & Gas: Tank farms, offshore rigs, refineries.
• Pharmaceutical Manufacturing: ATEX-compliant solvent handling.
• Food & Beverage: Alcohol and combustible fluid applications.
• Paints & Coatings: Vessels containing flammable solvents or adhesives.
• Waste Management: Hazardous waste tanks with combustible residues.

Operational Advantages

• Explosion Protection: Safe in flammable vapor and liquid environments.
• Efficiency: Strong jet action reduces manual cleaning requirements.
• Safety First: Removes electrical hazards in ATEX zones.
• Compact Integration: Fits IBCs, reactors, and mid-size tanks.
• Reduced Downtime: Faster wash cycles than manual methods.

Why Choose the BIRC030P

The Bolondi BIRC030P is the ideal solution for safe, effective internal tank cleaning in hazardous or electrically restricted environments.
Its pneumatic drive ensures operator safety, while the stainless steel body guarantees longevity.
It provides the perfect combination of safety, cleaning power, and reliability for industries that cannot compromise on compliance or sanitation.
