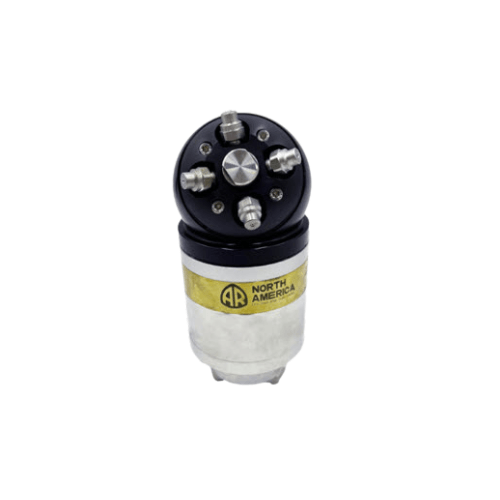

BISW060 Bolondi Rotary Cleaning Head | 4-Nozzle

BISW060 Bolondi Rotary Cleaning Head | 4-Nozzle

• BISW060 – Bolondi Rotary Cleaning Head – Stainless Steel 4-Nozzle Jet Tool is a compact yet powerful
  rotary cleaning head for specialized industrial cleaning applications.
• Designed for situations where partial spray coverage and high-impact force are required rather than
  full 360° coverage.
• Manufactured in Reggio Emilia, Italy, combining precision Italian engineering with rugged materials
  for long-lasting performance.
• Ideal for car wash undercarriage cleaning, waste bin sanitation, industrial wash bays, and confined container
  cleaning.

Construction & Durability

• Built from a combination of OT58 brass, lightweight aluminum, and 316L stainless steel to balance
  durability and cost-effectiveness.
• 316L stainless steel provides maximum resistance to chemical attack, corrosion, and high-temperature
  exposure.
• OT58 brass ensures strength, machinability, and reliable sealing for long service life.
• Aluminum housing reduces overall weight while maintaining structural integrity, making it easier to
  handle or integrate into mobile systems.
• Engineered to withstand frequent exposure to water, detergents, chemicals, and abrasive residues in industrial and
  automotive environments.

How It Works

• Powered by a self-contained water-motor drive, using the kinetic energy of incoming pressurized fluid
  to rotate the spray head.
• The hydraulic drive requires no external motors, gears, or power supplies, simplifying installation
  and reducing maintenance.
• Configured to deliver a 240° spray pattern, perfect for semi-enclosed environments or partial
  cleaning zones.
• Typical targets include the underside of vehicles, inside waste bins, or smaller process tanks where full 360°
  coverage is unnecessary.
• Operates at approximately 150 RPM, providing rapid coverage and consistent spray distribution for
  both mechanical scrubbing and flushing action.

Key Performance Features BISW060 Bolondi Rotary Cleaning Head

• Pressure Rating: Up to 2,900 PSI (200 bar) for high-impact cleaning performance.
• Flow Range: 4 to 16 GPM, offering flexibility across a wide range of system configurations.
• Nozzle Configuration: Four rotating nozzles deliver increased spray density and improved coverage.
• Spray Pattern: 240° partial-coverage pattern optimized for targeted cleaning zones.
• Rotation Speed: 150 RPM for fast, even cleaning cycles.
• Drive System: Water-motor powered, eliminating the need for external energy sources.

Applications & Use Cases

• Automotive & Car Wash Systems: Undercarriage cleaning for cars, trucks, and fleet vehicles to
  remove dirt, road salts, and grime.
• Waste Management: Internal cleaning of garbage bins, carts, and waste containers where a 240°
  pattern is ideal.
• Industrial Wash Bays: Cleaning smaller equipment housings, maintenance tools, and production vessels.
• Food & Beverage Facilities: Sanitation of bins, totes, and confined containers.
• Municipal & Public Works: Washdown of utility carts, bins, and transport containers.

Benefits & Differentiators BISW060 Bolondi Rotary Cleaning Head

• Targeted Cleaning: 240° spray pattern focuses cleaning power where it is needed, improving water and
  chemical efficiency.
• Enhanced Coverage: Four-nozzle design increases jet density and cleaning power per rotation.
• Durable Build: Stainless steel and brass components provide long life under demanding, daily use.
• Compact Form Factor: Fits into tight spaces and small openings, expanding its range of applications.
• Fast Cleaning Cycles: High rotation speed shortens cycle times while maintaining thoroughness.
• Maintenance-Friendly: Simple, gear-free water motor reduces servicing needs and potential failure
  points.

Integration & Compatibility

• Suitable for both fixed installations (e.g., automated underbody wash bays, industrial lines) and
  mobile wash rigs.
• Connects easily to standard high-pressure systems using common fittings.
• Designed to operate reliably in both continuous and intermittent cleaning cycles.
• Compact dimensions and versatile mounting options simplify integration into new or existing systems.

BISW060 Bolondi Rotary Cleaning Head | 4-Nozzle

• The BISW060 is built to order in Italy and can be engineered to meet precise system
  specifications.
• Typical lead times are 8 weeks by air freight or 14 weeks via ocean cargo, depending
  on logistics and customer preference.
