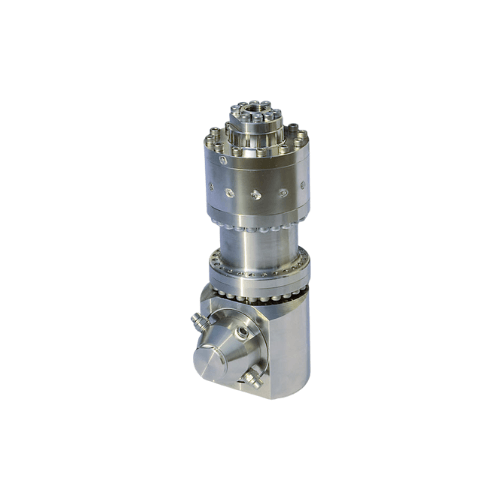

BIPW586A-SL Bolondi Tank Cleaning Head | High Volume

Bolondi BIPW586A-SL Rotary Cleaning Head Overview

The Bolondi BIPW586A-SL is a large-capacity rotary cleaning head built for demanding industrial applications requiring long cleaning cycles, large vessel volumes, and high durability. Constructed from all-stainless steel and equipped with a self-lubricating internal system, it is engineered for continuous-duty CIP operations.

Performance & Operation

High-Pressure Cleaning Power

• Operates up to 2,900 PSI (200 bar)
• Provides full 360° internal coverage
• Ideal for large tanks, silos, reactors, and storage systems
• Optimized for high flow rates and extended cleaning cycles

BIPW586A-SL Bolondi Tank Cleaning Head | High Volume

How It Works

The unit uses a water-motor drive mechanism that converts pressurized water into rotational energy, powering an internal turbine to spin the cleaning arms at a controlled speed.

• Self-lubricating design reduces internal wear
• No manual greasing or disassembly required
• Gear-free system with fewer failure points
• Produces a dense rotary spray pattern to eliminate residue, scale, and deposits

Materials & Construction

Rugged Industrial Build

• 316L Stainless Steel Body – resistant to acids, caustics, and sanitizers
• Self-Lubricating Internals – less friction and reduced maintenance
• Precision Nozzle Jets – optimized for flow rate and impact force
• Balanced Rotary System – minimizes vibration during long cycles

Technical Specifications

Performance Specs (Reference)

• Operating Pressure: up to 2,900 PSI (200 bar)
• Drive System: water-motor driven
• Coverage: 360° full internal cleaning
• Construction: 316L stainless steel, self-lubricating
• Flow Capacity: designed for high-volume cleaning

BIPW586A-SL Benefits & Advantages

Key Differentiators

• Self-lubricating internal system
• High-flow performance for large tanks
• Complete 360° cleaning without dead zones
• Water-driven — no external motors required
• Highly corrosion-resistant
• Long service life under continuous-duty conditions
• Built to order — 8 weeks (air freight) or 14 weeks (cargo)

Industry Applications

Compatible Industries

• Chemical & Petrochemical — polymers, solvents, resins
• Food & Beverage — fermenters, mixing vats, brewing vessels
• Pharmaceutical — sterile tanks and processing vessels
• Heavy Manufacturing — large-scale residue removal
• Municipal & Utility — wastewater and holding tanks

Operation & Integration

How to Use

• Connect to a high-pressure water supply
• Hydraulic power automatically turns the jet arms
• Run for a timed cleaning cycle
• Rinse with fresh water after chemical use

The BIPW586A-SL integrates easily into permanent CIP systems or mobile cleaning rigs.

Why Choose the BIPW586A-SL

• Designed for facilities that require dependable, continuous-duty cleaning
• Low maintenance with self-lubricating internals
• High-pressure, high-flow efficiency reduces water and chemical use
• Engineered for long-term reliability in harsh environments
