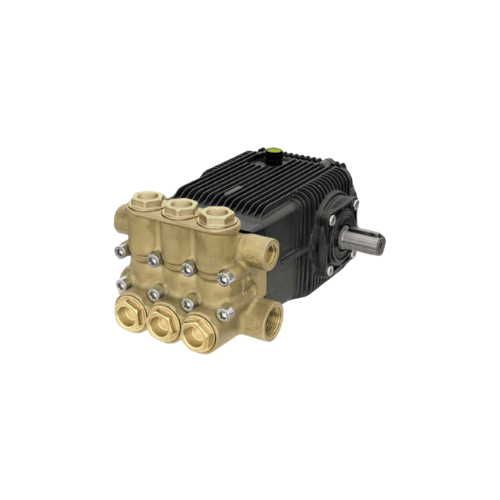

XWP70.12HN | 18.5 GPM 1740 PSI Pump 1450 RPM Nickel Plated Head

XWP70.12HN | 18.5 GPM 1740 PSI Pump 1450 RPM Nickel Plated Head

Key Specifications

• Flow Rate: 18.5 GPM
• Pressure: 1,740 PSI
• Operating Speed: 1,450 RPM
• Shaft: 24mm solid keyed shaft
• Pump Head: Nickel-plated brass (HN configuration)
• Valves: Stainless steel
• Plungers: Precision-ground solid ceramic
• Lubrication: Oil-bath crankcase with sight glass and vented dipstick
• Warranty: 5-Year Commercial Warranty

XWP70.12HN High-Volume Output for Industrial Applications

• High-flow performance: Produces 18.5 GPM to support rapid cleaning, rinsing, and flushing across large surface areas.
• Moderate-pressure profile: 1,740 PSI delivers effective industrial cleaning without excessive surface aggression.
• Throughput efficiency: High water volume reduces dwell time and total labor hours in repetitive wash programs.
• System compatibility: Well suited for fleet washing, tank cleaning, sanitation lines, and continuous washdown systems.
• Low-speed stability: 1,450 RPM operation minimizes heat buildup and promotes smooth output during extended run cycles.

Nickel-Plated Head for Corrosive Environments

• HN corrosion protection: Nickel-plated brass manifold provides enhanced resistance to chemicals, detergents, and saline exposure.
• Extended manifold life: Nickel barrier reduces oxidation, pitting, and surface degradation in wet environments.
• Harsh-environment readiness: Designed for coastal, marine, and chemical wash bays where standard brass may deteriorate.
• Sanitation alignment: Suitable for food-grade and USDA-regulated washdown processes requiring corrosion-resistant materials.
• Consistent performance: Plated surfaces maintain internal flow integrity under repeated chemical cycling.

Maintenance-Friendly Design

• Factory-filled with break-in oil for immediate installation and commissioning.
• Integrated oil sight glass enables quick visual inspection without disassembly.
• Vented dipstick simplifies oil changes and supports proper crankcase breathing.
• Externally accessible 24mm shaft allows straightforward pulley or coupling installation.
• Supplied with full documentation, parts diagrams, and service references.

Built for Continuous-Duty Operation

• Wear-resistant internals: Ceramic plungers and stainless steel valves resist abrasion, heat, and chemical exposure.
• Heavy-duty drive end: Oversized bearings and reinforced crankcase support sustained industrial runtimes.
• Low-RPM longevity: Reduced operating speed lowers mechanical stress compared to high-speed pump designs.
• Thermal stability: Oil-bath lubrication and balanced internals support cooler, quieter operation.
• Factory verification: Each pump is performance-tested to confirm flow accuracy and pressure stability.
• Integration-ready: 24mm solid shaft supports belt-driven, gearbox-driven, or electric motor systems.

Ideal Applications

• Fleet Services: Truck depots, bus wash facilities, transit authorities, and municipal fleets.
• Food & Beverage: USDA washdowns, meat and poultry processing plants, seafood handling facilities.
• Agriculture: Tank rinsing, greenhouse sanitation, livestock facilities, and equipment washdown.
• Marine: Dockside wash stations, shipyards, saltwater exposure zones.
• Waste Management: Refuse trucks, landfill equipment, and sanitation vehicle cleaning.
• Contractor Rigs: High-capacity trailer-mounted wash systems and industrial service skids.

XWP70.12HN | 18.5 GPM 1740 PSI Pump 1450 RPM Nickel Plated Head

What’s Included

• Factory-installed break-in oil
• Oil sight glass and vented dipstick pre-installed
• Owner’s manual, service documentation, and exploded schematics
• Factory performance and pressure test verification
• 5-year commercial warranty with U.S.-based technical support

Why Choose Annovi Reverberi

• Globally recognized manufacturer with decades of high-pressure pump engineering expertise.
• XWP70.12HN delivers industrial-scale flow combined with corrosion protection for demanding washdown environments.
• Designed for long service life, predictable maintenance, and continuous-duty commercial operation.
• Supported by strong warranty coverage and an established North American service network.
