RTX-HW85.150N | 22.5 GPM 3000 PSI Hot Water Pump 185°F Rated

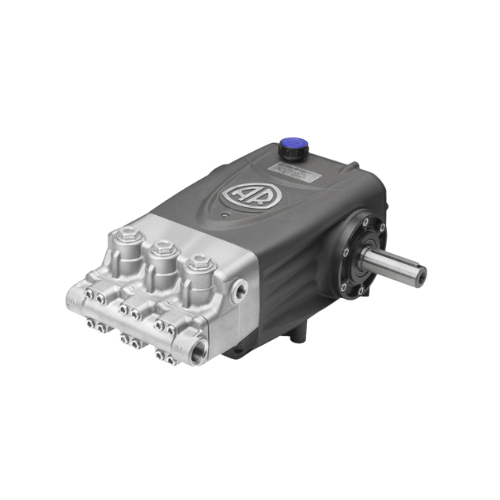

RTX-HW85.150N Hot Water Industrial Pump

The RTX-HW85.150N by Annovi Reverberi is a hot-water–rated industrial triplex plunger pump engineered for demanding, continuous-duty wash systems where temperature, flow volume, and reliability are critical. Delivering 22.5 GPM at 3,000 PSI while operating at a slow and stable 1,450 RPM, this pump is purpose-built for environments where grease, oils, fats, and heavy organic residues cannot be effectively removed with cold water alone. With a maximum inlet temperature rating of 185°F, it is ideally suited for food processing plants, sanitation facilities, oil & gas operations, fleet wash systems, and industrial cleaning bays that rely on hot-water cycles for productivity and hygiene compliance.

Unlike standard cold-water pumps, the RTX-HW85.150N is constructed with materials and tolerances designed to handle sustained thermal loading without accelerated wear. Its industrial-grade architecture allows it to maintain consistent pressure and flow during extended runtimes, making it a dependable core component in professional hot-water pressure washer systems.

Key Specifications

• Flow Rate: 22.5 GPM
• Maximum Pressure: 3,000 PSI
• Operating Speed: 1,450 RPM (low-speed industrial duty)
• Maximum Inlet Temperature: 185°F (hot-water rated)
• Shaft: 30mm solid keyed shaft
• Pump Type: Industrial triplex plunger pump
• Manifold: Forged brass for strength and corrosion resistance
• Connecting Rods: Bronze for durability under heat and load
• Plungers: Precision-ground ceramic
• Valves: Stainless steel for high-temperature and chemical resistance
• Lubrication: Oil bath with sight glass and vented dipstick
• Warranty: 5-year commercial warranty

What’s Included

• Factory pre-filled break-in oil, ready for installation
• Vented dipstick for proper crankcase breathing and oil servicing
• Integrated oil sight glass for quick visual oil-level checks
• Owner’s manual with detailed service instructions
• Complete parts schematic for maintenance and rebuild reference
• Factory performance test report verifying flow and pressure output
• 5-year commercial warranty backed by U.S.-based service support

How the RTX-HW85.150N Works

The RTX-HW85.150N employs a triplex plunger design, using three ceramic plungers driven by a precision-balanced crankshaft to produce smooth, consistent pressure with minimal pulsation. This design reduces stress on hoses, unloaders, seals, and downstream accessories, which is especially important in high-flow hot-water systems.

Operating at just 1,450 RPM, the pump runs significantly slower than high-speed alternatives, reducing frictional heat, vibration, and mechanical wear. This low-speed operation is a key contributor to long service life in continuous-duty environments. The forged brass manifold, bronze connecting rods, and stainless steel valves are selected specifically to withstand repeated exposure to elevated temperatures and aggressive detergents.

With an inlet temperature rating of 185°F, the pump excels in applications requiring hot-water cleaning to break down oils, grease, fats, and biological residues. The 30mm solid keyed shaft allows stable integration with belt-driven or direct-coupled drive systems commonly used in industrial hot-water skids and burner-equipped pressure washers.

RTX-HW85.150N | 22.5 GPM 3000 PSI Hot Water Pump 185°F Rated

• Hot-water rating up to 185°F enables effective grease and oil removal.
• High 22.5 GPM output supports fast cleaning of large sanitation areas.
• 3,000 PSI provides strong, consistent cleaning force without excessive surface damage.
• Forged brass, bronze, and stainless construction resists corrosion and thermal fatigue.
• Ceramic plungers deliver excellent thermal stability and long wear life.
• Low-speed 1,450 RPM operation significantly extends pump lifespan.
• Oil sight glass and vented dipstick simplify routine maintenance.
• Factory-tested performance reduces setup time and commissioning risk.
• Backed by a 5-year commercial warranty and U.S. service network.

Applications

• Food processing and packaging plants requiring hot-water sanitation.
• Commercial kitchens and institutional wash facilities.
• Oil & gas operations and industrial degreasing systems.
• Sanitation bays, wastewater treatment, and recycling facilities.
• Fleet, truck, and heavy-equipment wash stations.
• Agricultural washdowns involving fats, oils, and organic residue.

Why Choose the RTX-HW85.150N

• Purpose-built for hot-water use where standard pumps fail prematurely.
• Combines high flow, moderate pressure, and low RPM for optimal efficiency.
• Industrial materials package designed for thermal and chemical exposure.
• Service-friendly design minimizes downtime and maintenance labor.
• Supported by Annovi Reverberi’s long-standing reputation for industrial reliability.

RTX-HW85.150N | 22.5 GPM 3000 PSI Hot Water Pump 185°F Rated

• Delivers 22.5 GPM at 3,000 PSI with true 185°F hot-water capability.
• Engineered for grease-heavy, oil-contaminated, and sanitation-critical environments.
• Built with forged brass, bronze rods, ceramic plungers, and stainless valves.
• Optimized for continuous-duty industrial and commercial hot-water systems.
• Shipped ready to install, factory-tested, and protected by a 5-year warranty.
