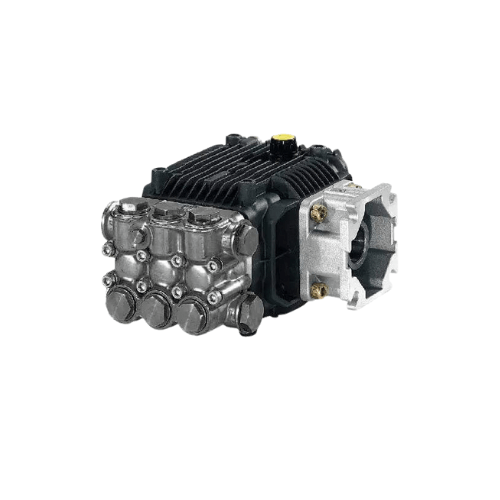

XMVSS3G25D-F25 | 3 GPM 2500 PSI Pump 3400 RPM SS 3/4 Shaft

Overview

The XMVSS3G25D-F25 stainless steel pump is built for high-demand environments where reliability,
corrosion resistance, and precision performance are essential. Delivering 3.0 gallons per minute at
2,500 PSI, this heavy-duty triplex plunger pump is engineered to handle continuous use in industries such as
food processing, chemical washdown, dairy, and marine cleaning applications. With its dual discharge ports, it can
supply pressure to two outlets simultaneously, making it the ideal solution for dual-zone cleaning systems or
high-purity installations.

Engineered for Performance and Durability

The XMVSS3G25D-F25 features a 316 stainless steel head that resists corrosion, scaling, and chemical
attack, even in the harshest conditions. Its ceramic plungers minimize wear and improve thermal stability, while
heavy-duty seals ensure consistent performance under demanding cycles. The pump’s oil-bath crankcase keeps internal
components properly lubricated, extending lifespan and reducing downtime. At 1,450 RPM with a
3/4″ hollow shaft, it supports belt-driven setups, pulley systems, or custom mounting frames.

Every unit is factory-tested for pressure, flow, and performance to guarantee reliability. Designed with both
maintenance efficiency and long-term durability in mind, the XMVSS3G25D-F25 is an investment that supports
operational uptime and lowers lifetime costs.

Key Specifications for XMVSS3G25D-F25

• Flow Rate: 3.0 GPM
• Pressure: 2,500 PSI
• Speed: 1,450 RPM
• Head Material: AISI 316 stainless steel
• Shaft Size: 3/4″ hollow shaft (F25 flange)
• Discharge Ports: Dual outlets for simultaneous cleaning circuits
• Plungers: High-strength ceramic plungers
• Crankcase: Oil-bath lubrication with sight glass and vented dipstick
• Bearings: Oversized, heavy-duty for smooth operation

What’s Included With XMVSS3G25D-F25

• Factory pre-filled with break-in oil
• Vented dipstick for quick and easy servicing
• Oil sight glass for real-time monitoring of lubrication levels
• Dual discharge configuration for multi-zone cleaning systems
• Detailed owner’s manual with installation and maintenance instructions
• 5-year warranty backed by U.S.-based service and support

How the Pump Works

This triplex plunger pump draws water through its stainless steel head, compresses it with ceramic plungers, and
delivers it at high pressure through its dual discharge outlets. The dual-port configuration allows operators to run
two separate cleaning or washdown circuits at once, increasing productivity without compromising performance. Its
low-RPM operation enhances efficiency, reduces wear on internal parts, and minimizes heat buildup for extended
service life.

Core Operating Features

• Triplex plunger design for smooth, consistent high-pressure output.
• Dual discharge ports to feed two cleaning circuits simultaneously.
• 316 stainless steel head and wetted components for maximum corrosion resistance.
• High-strength ceramic plungers for superior wear and thermal stability.
• Oil-bath crankcase with sight glass and vented dipstick for optimized lubrication.
• Low 1,450 RPM operation to reduce heat, vibration, and internal wear.
• 3/4″ hollow shaft with F25 flange for belt-driven and pulley-based installations.

Benefits of the XMVSS3G25D-F25

• Dual Output Efficiency: Run two cleaning zones simultaneously, saving time and maximizing coverage.
• Corrosion Resistance: 316 stainless steel construction ensures long-term durability in caustic or food-grade environments.
• Precision Engineering: Ceramic plungers and advanced seal technology minimize maintenance needs.
• Ease of Maintenance: Pre-filled oil, vented dipstick, and sight glass simplify servicing and monitoring.
• Versatility: Ideal for belt-driven and pulley-based systems thanks to its hollow shaft design.
• Peace of Mind: Each pump is factory-tested and backed by a 5-year warranty with U.S.-based support.

Typical Applications

The XMVSS3G25D-F25 is designed for industries that need both corrosion resistance and dual-zone capability. Typical
applications include:

• Food and Beverage Plants: Perfect for USDA-compliant washdowns, dairy equipment cleaning, and meat processing sanitation.
• Chemical Rinse Systems: Handles aggressive cleaning agents and caustic chemicals without corrosion.
• Dual-Zone CIP (Clean-In-Place) Systems: Supports simultaneous operation across two cleaning circuits.
• Marine and Dockside Facilities: Resists saltwater exposure and scaling for reliable long-term service.
• Industrial Washdown Stations: Provides consistent pressure in demanding environments.

Why Choose the XMVSS3G25D-F25?

This pump stands out because it combines industrial-grade durability with multi-zone cleaning capabilities. The dual
discharge ports eliminate the need for separate pumps, reducing equipment costs and simplifying system design. Its
stainless steel construction and ceramic plungers ensure it withstands harsh chemicals, hot water, and constant use,
making it a trusted choice for industries where reliability and compliance matter most.

With features like the vented dipstick, sight glass, and included break-in oil, maintaining this pump is
straightforward and efficient. Its low-RPM operation not only extends pump life but also reduces overall energy
consumption.

Backed by a 5-year warranty and supported by a network of U.S.-based service centers, the XMVSS3G25D-F25 is more than
just a pressure washer pump—it’s a long-term solution that delivers consistent, dependable results.
