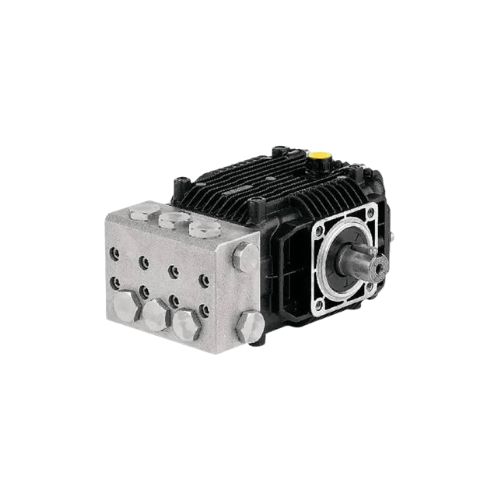

XMVSS3G25N-S | 0.5 GPM 1500 PSI Pump 480 RPM SS 24mm Shaft

Overview

The XMVSS3G25N-S stainless steel pump is a specialized, industrial-grade pressure washer pump
designed for environments where hygiene, chemical resistance, and compact installation flexibility are required.
Delivering 3.0 gallons per minute at 2,500 PSI, this pump is engineered for continuous-duty
operation in food-grade, marine, chemical, and pharmaceutical applications. Its left-hand
24mm solid shaft makes it ideal for reverse-mounting setups and installations where standard shaft
configurations do not fit.

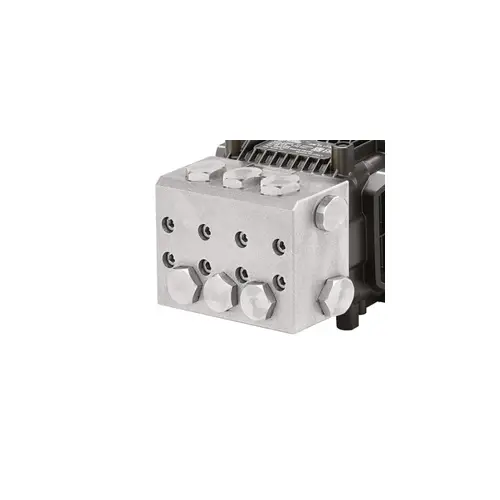

Built with an AISI 316 stainless steel head, ceramic plungers, and Viton seals, the XMVSS3G25N-S is specifically
designed to withstand caustic cleaning agents, high-pressure washdowns, and USDA-compliant sanitation environments.
Whether used in food processing plants, pharmaceutical facilities, or chemical rinse systems, this pump delivers
consistent, reliable performance while maintaining easy maintenance and long service life.

Engineered for Specialized Installations

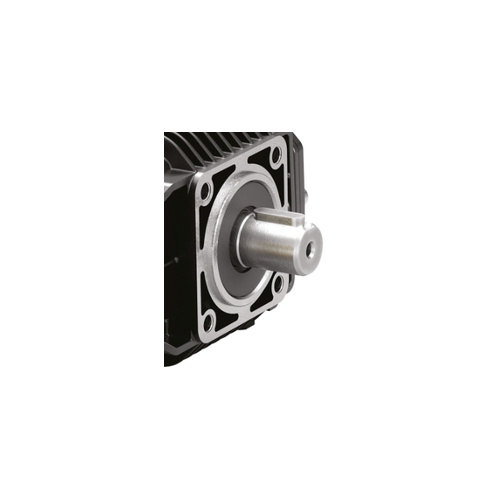

The XMVSS3G25N-S stands out because of its left-hand shaft design, which provides versatility in
compact or customized system configurations. This allows engineers and operators to install the pump in unique
orientations where space, drive direction, or system layout would otherwise prevent the use of a standard shaft.

In addition, its low-RPM operation at 1,450 RPM enhances thermal efficiency, reduces vibration, and
minimizes wear on internal parts, further extending pump life in high-frequency use environments. Its oil-bath
crankcase, equipped with both a vented dipstick and oil sight glass, ensures smooth lubrication monitoring and easy
servicing.

Key Specifications for XMVSS3G25N-S

• Flow Rate: 3.0 GPM
• Pressure Rating: 2,500 PSI
• Speed: 1,450 RPM
• Head Material: AISI 316 stainless steel
• Shaft: 24mm solid, left-hand design
• Plungers: Ceramic plungers for superior wear resistance
• Seals: Viton seals for chemical and heat durability
• Crankcase: Oil-bath lubrication with sight glass and dipstick
• Design: Triplex plunger pump for smooth, pulsation-free flow

What’s Included With the XMVSS3G25N-S Pump

• Factory pre-filled with break-in oil
• Vented dipstick for quick oil changes and maintenance
• Oil sight glass for real-time lubrication checks
• Detailed owner’s manual with installation and care guidelines
• Fully factory-tested pump for flow, pressure, and durability
• 5-year warranty supported by U.S.-based service centers

How the Pump Works

Like other pumps in the XMVSS line, the XMVSS3G25N-S uses a triplex plunger design, where three precision ceramic
plungers compress water and discharge it at high pressure. This design guarantees a steady, pulsation-free stream,
reducing system stress and improving cleaning efficiency.

The left-hand shaft orientation allows operators to mount the pump in non-standard configurations, making it a
preferred choice for custom skid systems, reverse-drive washdown rigs, and space-limited installations. By combining
stainless steel construction with advanced seals and plungers, this pump provides unmatched performance in
environments where hygiene, compliance, and chemical resistance are top priorities.

Core Design & Performance Highlights

• Triplex plunger design for smooth, pulsation-free high-pressure output.
• Left-hand 24mm solid shaft for reverse and compact mounting configurations.
• AISI 316 stainless steel head and wetted components for superior corrosion resistance.
• Ceramic plungers and Viton seals to withstand heat, chemicals, and high-duty cycles.
• Oil-bath crankcase with sight glass and vented dipstick for simplified lubrication management.
• Low-RPM operation (1,450 RPM) to reduce heat, vibration, and internal wear.

Benefits of the XMVSS3G25N-S

• Specialized Left-Hand Shaft: Supports reverse or compact mounting where standard pumps cannot fit.
• Corrosion Resistance: 316 stainless steel head resists caustic chemicals, sanitizers, and saltwater exposure.
• Durable Seals and Plungers: Viton seals and ceramic plungers extend service life in chemical-rich environments.
• Smooth Operation: Triplex plunger design minimizes vibration and pressure fluctuations.
• Low-RPM Efficiency: Reduces stress on components and improves thermal performance.
• Ease of Maintenance: Sight glass and dipstick simplify servicing and oil monitoring.
• Reliable Backing: Factory-tested and protected with a 5-year warranty.

Typical Applications

The XMVSS3G25N-S is designed for industries that require sanitary operation, corrosion resistance, and flexible
installation options. Typical applications include:

• USDA-regulated facilities – sanitary washdowns in meat, poultry, and dairy processing environments.
• Pharmaceutical sanitation – compact cleaning systems requiring chemical resistance and compliance.
• Beverage production lines – rinsing tanks, conveyors, and bottling systems with food-safe standards.
• Chemical rinse systems – designed for continuous operation with caustic cleaning agents.
• Marine and dockside cleaning – resists corrosion from saltwater and harsh marine environments.
• Emergency and decontamination units – suitable for fire departments or municipal cleaning rigs requiring reverse or compact mounting.

Why Choose the XMVSS3G25N-S?

The XMVSS3G25N-S is a solution for professionals who need a compact, flexible, and corrosion-resistant pump without
compromising on power or reliability. Its left-hand shaft design sets it apart, enabling custom mounting and
reverse-drive installations that standard pumps cannot accommodate.

With its stainless steel head, ceramic plungers, and Viton seals, the pump thrives in food, chemical,
pharmaceutical, and marine settings, delivering dependable service where compliance and reliability are essential.
Maintenance is simple thanks to pre-filled oil, a vented dipstick, and sight glass monitoring, reducing downtime and
ensuring long-term system performance.

Backed by a 5-year warranty and U.S.-based service support, the XMVSS3G25N-S is a pump built for long-term industrial
use, making it an investment that continues to deliver reliable results in even the harshest environments.
