XWF26.20N | 7 GPM 2900 PSI Pump Includes Oil 5 Yr Warranty

XWF26.20N — Industrial Triplex Pump, 7.0 GPM, 2,900 PSI, 1,450 RPM

The Annovi Reverberi XWF26.20N is a high-performance, industrial-grade pressure washer pump
engineered for demanding commercial and facility wash systems. Delivering 7.0 GPM at 2,900 PSI while
operating at a low-stress 1,450 RPM, it provides the high flow and moderate pressure needed for
parking garages, plants, municipal fleets, and contractor trailers. Oversized internal components, a forged brass
manifold, and precision ceramic plungers are combined with service-friendly features like an oil sight glass and
vented dipstick to deliver long life, smoother operation, and reduced downtime.

Key Specifications

• Flow Rate: 7.0 GPM (high-flow output for multi-gun and high-volume systems)
• Maximum Pressure: 2,900 PSI for heavy-duty but surface-safe cleaning
• Operating Speed: 1,450 RPM for cooler, quieter, and longer-lasting operation

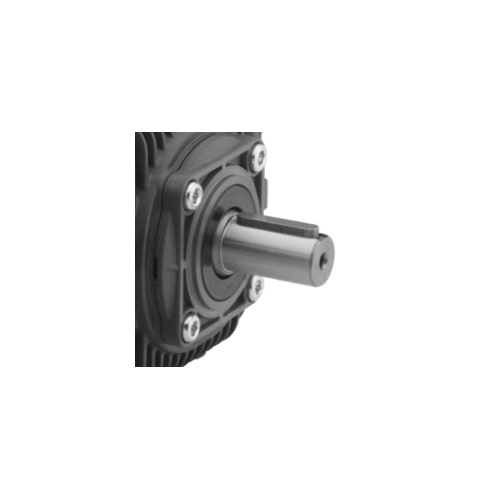

• Shaft Type: 24 mm solid keyed shaft for belt-drive or direct-drive layouts

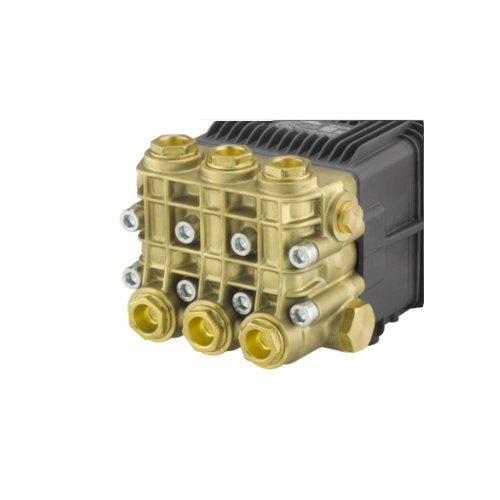

• Manifold: Forged brass for strength, pressure fatigue resistance, and corrosion protection
• Plungers: Precision-ground ceramic plungers for superior wear and heat resistance
• Bearings: Oversized crankcase and bearings designed for continuous-duty service
• Maintenance Features: Integrated oil sight glass and vented dipstick
• Warranty: 5-year commercial warranty with U.S.-based service support

What’s Included with XWF26.20N

• Factory pre-filled break-in oil for fast, safe startup
• Oil sight glass for quick visual oil-level and condition checks
• Vented dipstick to regulate crankcase pressure and protect seals
• Factory test report documenting pressure and flow verification
• Owner’s manual with installation, operation, and maintenance guidance
• Schematic documentation for parts identification and service
• Coverage under a 5-year commercial warranty supported in the U.S.

Built for Heavy-Duty Performance

• Part of AR’s commercial-duty triplex plunger series, designed for continuous-duty industrial and
  contractor use.
• Oversized crankcase and bearings help dissipate heat and reduce wear during long run times.
• Precision-ground ceramic plungers resist abrasion and maintain sealing surfaces over thousands of
  hours.
• Forged brass manifold resists pressure fatigue, cracking, and corrosion in harsh wash environments.
• Low-RPM operation minimizes vibration and noise, protecting both the pump and connected drive components.

Service-Friendly Design

• Oil sight glass allows at-a-glance crankcase inspection without removing plugs or hardware.
• Vented dipstick stabilizes internal pressure, extending seal and bearing life under thermal cycling.
• Ships pre-filled with break-in oil, reducing setup time and ensuring proper initial lubrication.
• Factory performance testing confirms each unit meets flow and pressure specs before shipping.
• Straightforward access to valves, seals, and plungers simplifies periodic service and rebuilds.

Benefits & Advantages of XWF26.20N

• High-Flow Capacity: 7.0 GPM supports multi-gun operation and rapid coverage of large areas.
• Moderate Pressure: 2,900 PSI balances aggressive cleaning with flexibility for more delicate
  surfaces.
• Durable Construction: Ceramic plungers, forged brass manifold, and oversized bearings extend pump
  life.
• Smoother Operation: Low-speed design reduces mechanical stress, vibration, and noise output.
• Reduced Downtime: Service-friendly layout and clear oil monitoring support proactive maintenance.
• Long-Term Confidence: Backed by a 5-year commercial warranty and U.S.-based service network.

Ideal Applications

• Parking garage and deck cleaning: High-volume washing of concrete ramps, decks, and structures.
• Manufacturing facilities: Washdown and sanitation for production areas and industrial equipment.
• Pressure washing contractors: Mobile trailers and high-capacity rigs needing reliable 7 GPM output.
• Food service & sanitation: Commercial kitchens, food prep zones, and sanitation lines (verify
  chemical compatibility).
• Theme parks & public spaces: Grounds, ride structures, and high-traffic areas with frequent
  cleaning cycles.
• Municipal & utility services: City maintenance, public works vehicles, and wastewater equipment.

Summary

• The XWF26.20N industrial pump delivers 7.0 GPM at 2,900 PSI with a
  24 mm solid keyed shaft and low 1,450-RPM operation, making it an excellent
  choice for high-volume, continuous-duty cleaning systems.
• With a forged brass manifold, ceramic plungers, oversized bearings, and service-friendly oil monitoring, it provides
  the durability, smooth performance, and uptime that contractors, facilities, and municipalities depend on—backed by
  a 5-year commercial warranty.
