XWA9G30N-SX | 9 GPM 3000 PSI Pump 1750 RPM Left Hand Shaft

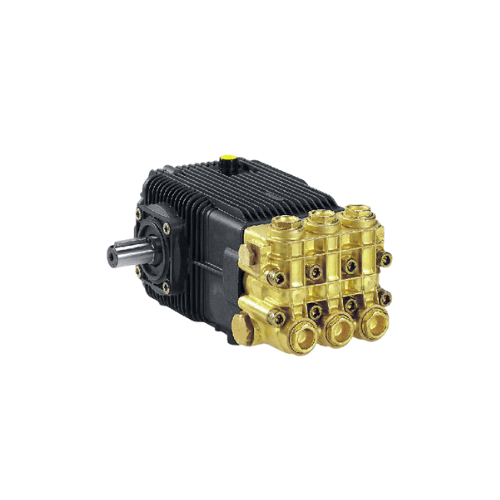

XWA9G30N-SX Annovi Reverberi Triplex Plunger Pump

The XWA9G30N-SX is a commercial-duty triplex plunger pump designed for systems requiring reverse rotation compatibility. Delivering 9.0 gallons per minute at 3,000 PSI, this model features a 24mm solid left-hand shaft, making it the ideal solution for contractors, industrial operators, and commercial cleaning rigs where shaft orientation is critical.

Operating at 1,750 RPM, the XWA9G30N-SX provides smooth, reliable performance with reduced vibration and wear. Heavy-duty seals, ceramic plungers, and stainless steel valves ensure long service life even under demanding continuous-duty operation.

Built for Reverse Rotation Systems

While most pumps use a standard right-hand shaft, many commercial cleaning rigs and motor configurations require reverse-drive setups. The XWA9G30N-SX solves this challenge with a left-hand 24mm shaft, making it perfectly suited for reverse-driven belt-drive or motor-driven systems. This flexibility is especially valuable for mobile wash systems and industrial vehicles where pump orientation determines installation compatibility.

Key Specifications

• Flow Rate: 9.0 GPM
• Pressure Rating: 3,000 PSI
• Operating Speed: 1,750 RPM

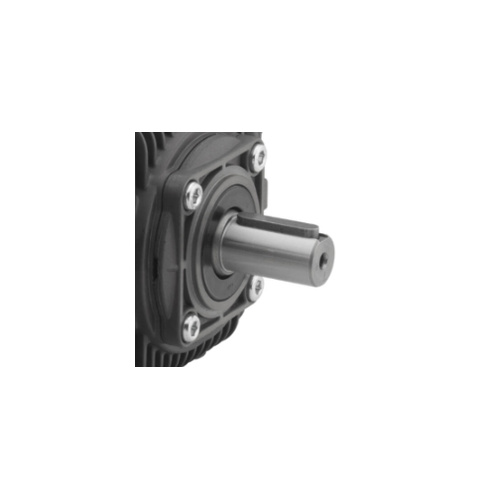

• Shaft Size: 24mm solid shaft (left-hand orientation)
• Pump Type: Triplex plunger pump for smooth, pulsation-free flow

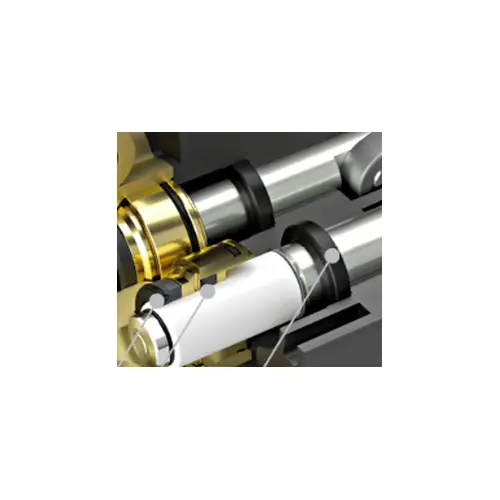

• Plungers: Ceramic for high wear and heat resistance
• Valves: Stainless steel valves for corrosion resistance
• Seals: Heavy-duty high-pressure seals for extended service life
• Crankcase: Oil-bath lubrication with sight glass and vented dipstick

What’s Included with XWA9G30N-SX

• Factory-installed break-in oil for quick installation
• Oil sight glass for easy lubrication monitoring
• Vented dipstick for simplified maintenance
• Full technical documentation with schematics and operator manual
• Factory-tested performance for pressure, flow, and reliability
• 5-year commercial warranty with U.S.-based support

How the Pump Works

The XWA9G30N-SX uses a triplex plunger design to deliver a consistent 9 GPM at 3,000 PSI. As ceramic plungers cycle water through stainless steel valves, the pump provides smooth flow with reduced pulsation — critical for cleaning efficiency and equipment longevity.

The reverse rotation configuration makes this pump compatible with installations where traditional right-hand shaft pumps cannot fit. Running at 1,750 RPM also ensures cooler operation and longer component life in continuous-duty environments.

Benefits of XWA9G30N-SX

• Reverse-Drive Compatibility: Left-hand shaft for systems requiring reverse rotation
• High Flow & Pressure: 9 GPM at 3,000 PSI supports large-scale cleaning
• Durable Internals: Ceramic plungers and stainless valves resist heat and corrosion
• Low Maintenance: Sight glass and dipstick simplify lubrication checks
• Built for Demanding Environments: Industrial seals support continuous duty
• Quality Assurance: Factory-tested and backed by a 5-year warranty
• Versatile Integration: Ideal for mobile wash trailers and industrial systems

Typical Applications

• Mobile wash trailers and truck-mounted systems
• Fleet and rental vehicle cleaning operations
• Commercial pressure cleaning contractors
• Paint stripping and surface preparation
• USDA-regulated industrial washdown operations
• Service vehicles handling large-scale cleaning projects

Why Choose the XWA9G30N-SX?

The XWA9G30N-SX is built for operators who require both high volume and compatibility with reverse rotation systems. Its 9.0 GPM flow and 3,000 PSI performance provide industrial-strength cleaning power, while the left-hand shaft configuration offers installation flexibility where standard pumps won’t fit.

Engineered with ceramic plungers, stainless valves, and reinforced seals, this pump offers long-term durability and reduced maintenance. Backed by a 5-year commercial-use warranty and U.S.-based support, the XWA9G30N-SX delivers maximum value, reliability, and performance for professional cleaning operations.
