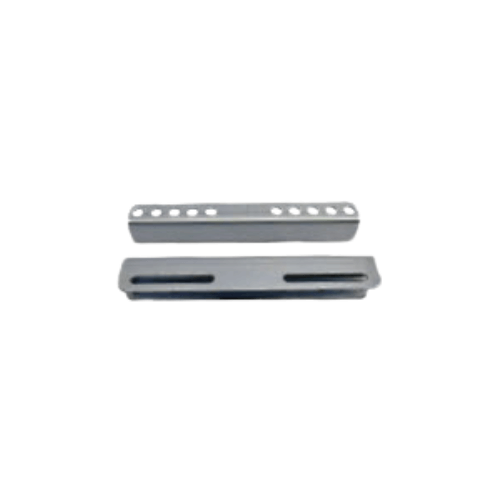

AR2748 XW Low Rail Kit | Compact Pump Mount Rails

Overview

The AR AR2748 XW Low Rail Kit is a compact, precision-engineered mounting solution from
Annovi Reverberi, designed to provide secure, stable, and vibration-resistant support for AR XW Series pumps.
Built to handle the mechanical demands of high-performance cleaning systems, this low-profile rail kit maintains
proper alignment between the pump and motor while keeping the overall footprint tight—ideal for installations
where both space and stability are critical.

Crafted from durable, corrosion-resistant materials and supplied with matching mounting hardware, the AR2748
delivers long-term reliability and smooth, quiet operation in both mobile and stationary applications such as
skid units, portable frames, and enclosed industrial pump packages.

Key Features & Applications

Low-Profile, High-Stability Mounting

• Low rail design keeps the pump close to the mounting surface for improved balance and reduced vibration transfer.
• Rigid structure resists bending, twisting, and flex under continuous high-pressure operation.
• Helps maintain accurate shaft alignment, minimizing bearing and seal wear.
• Supports smooth torque transmission for quieter, more efficient pump performance.

Precision-Machined for AR XW Series Pumps

• Rails are precision-cut and machined to match AR XW Series pump base dimensions.
• Pre-drilled mounting holes align with factory bolt patterns—no on-site drilling or modification required.
• Ensures level, repeatable positioning of the pump on skids, frames, and platforms.
• Reduces setup time while preserving factory-level alignment accuracy.

Compact Footprint for Tight Installations

• Optimized dimensions fit easily into space-limited frames, cabinets, and enclosed pump rooms.
• Ideal for portable pressure washer carts, skid-mounted units, and multi-pump systems.
• Maintains structural stability comparable to larger rail systems despite its compact size.
• Improves service accessibility around pumps and plumbing in crowded layouts.

Corrosion-Resistant Rails & Hardware

• Rails constructed from high-strength steel or aluminum alloy for long-term rigidity and durability.
• Corrosion-resistant finish stands up to water, detergents, chemicals, and outdoor exposure.
• Included mounting bolts are zinc-plated or treated to resist rust in high-moisture environments.
• Hardware provides a tight, vibration-proof hold while still allowing easy pump removal for service.

Vibration Damping & Extended Component Life

• Secure, rigid mounting reduces mechanical vibration transmitted to pumps and motors.
• Helps protect internal components such as plungers, seals, and bearings from premature wear.
• Maintains consistent coupling alignment, reducing stress on shafts and drive components.
• Contributes to quieter system operation and longer maintenance intervals.

Easy Installation & Typical Applications

• Pre-drilled rails and matched bolts allow quick installation with basic tools.
• Suitable for car washes, agricultural sprayers, industrial wash bays, and mobile cleaning rigs.
• Integrates seamlessly into new builds or retrofit projects using AR XW Series pumps.
• Provides a professional-grade mounting foundation that supports consistent flow, pressure, and overall system reliability.
