XWA9G24N | 9 GPM 2400 PSI Pump 1750 RPM Same Spec XWA9G30N

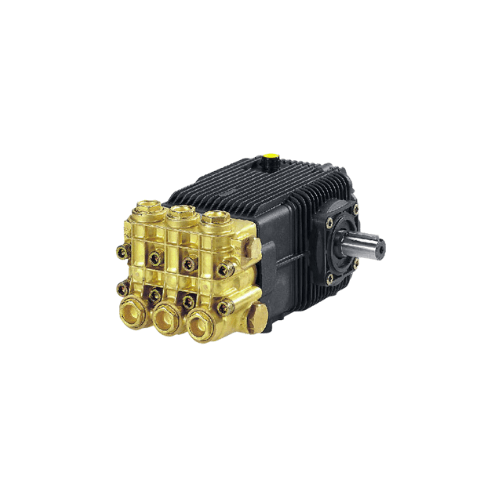

XWA9G24N Medium-Pressure High-Flow Triplex Pump

The Annovi Reverberi XWA9G24N is a professional-grade medium-pressure triplex plunger
pump built for wash systems that require sustained high flow without extreme pressure.
Delivering 9.0 GPM at 2,400 PSI at a controlled 1,750 RPM,
it provides the balanced performance needed in agricultural, commercial, and light
industrial cleaning applications where coverage, consistency, and reliability matter
more than maximum PSI. A 24mm solid keyed shaft allows straightforward
integration with standard belt-drive and direct-drive configurations.

• Medium-pressure, high-flow design rated at 9.0 GPM and 2,400 PSI.
• Slow-speed 1,750 RPM operation for reduced wear and heat generation.
• 24mm solid keyed shaft compatible with common industrial drive components.
• Suitable for tank-fed, recirculating, and centralized wash systems.
• Engineered for continuous-duty use in demanding work environments.

Performance & Duty Point

The XWA9G24N shares the same flow capacity as the higher-pressure XWA9G30N, but at
a moderated 2,400 PSI duty point. This configuration delivers ample cleaning force
without subjecting piping, fittings, and sensitive surfaces to unnecessary stress.
The result is a system that maintains strong cleaning performance, reduced spray
aggressiveness, and longer service life for downstream components.

• Flow rate: 9.0 GPM for wide-area coverage and rapid rinse-down.
• Pressure: 2,400 PSI suitable for sanitation, equipment cleaning, and facility washdown.
• Speed: 1,750 RPM for stable, low-vibration operation.
• Balanced output supports both manual wands and fixed spray manifolds.
• Optimized for frequent start/stop and recirculating duty cycles.

Flow & Pressure Balance

Rather than chasing peak pressure, the XWA9G24N is tuned to deliver strong, usable
cleaning performance across a range of surfaces and materials. High flow volume
sweeps debris, fertilizers, slurry, and residues, while moderate PSI reduces the
risk of substrate damage and piping fatigue. This makes the pump suitable for both
general cleaning and more sensitive washdown work.

• High flow improves flushing of solids, films, and light deposits.
• Moderate pressure helps protect gaskets, seals, and fittings.
• Well-suited for long hose runs and multi-outlet systems.
• Supports continuous cleaning tasks without excessive hydraulic shock.
• Provides predictable nozzle performance in medium-pressure circuits.

Pump Construction & Wet-End Components

The XWA9G24N uses a robust triplex plunger design built around ceramic plungers and
stainless-steel valves to maintain output stability over long operating hours.
The forged head and precision-machined internal passages support efficient water
movement, minimize turbulence, and protect sealing surfaces during pressure cycles.

• Triplex plunger architecture for smooth, low-pulsation flow.
• Ceramic plungers for superior wear, heat, and chemical resistance.
• Stainless-steel valves for reliable sealing in treated water environments.
• Forged manifold construction for strength and dimensional stability.
• Engineered internal geometry to support volumetric efficiency.

Triplex Plunger Assembly XWA9G24N

Three synchronized plungers draw and pressurize water through stainless-steel inlet
and discharge valves, generating a consistent 9 GPM flow at the rated pressure.
The ceramic plungers maintain a true, hard surface against sealing components,
limiting scoring and extending seal life even with frequent cycling or moderate
temperature fluctuations.

• Three-plunger design keeps pressure ripple low at the gun or manifold.
• Ceramic surfaces resist scaling and abrasive contact from contaminants.
• Valve timing optimized for consistent suction and discharge performance.
• Reduced pulsation helps protect gauges, hoses, and spray devices.
• Supports long-duty cycles common in agriculture and light industry.

Crankcase, Lubrication & Monitoring

The crankcase uses a full oil-bath lubrication system, supported by an integrated
sight glass and dipstick to simplify routine inspections. This configuration keeps
bearings, crank surfaces, and connecting rods properly lubricated during extended
operation, while giving technicians clear visual confirmation of oil level and
condition.

• Oil-bath crankcase for continuous lubrication of rotating components.
• Sight glass for quick level checks without disassembly.
• Dipstick simplifies oil service and condition evaluation.
• Pre-filled with break-in oil for controlled commissioning.
• Designed for predictable service intervals and reduced downtime.

Installation & System Integration

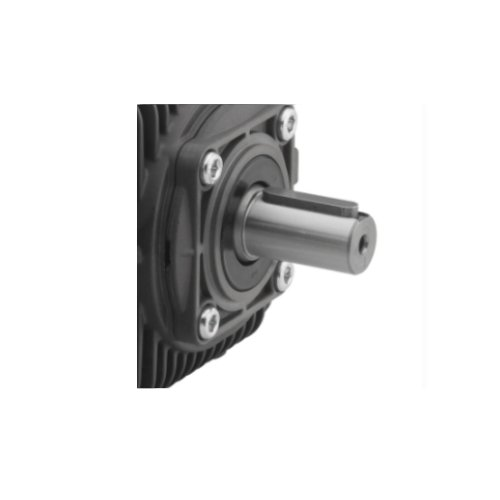

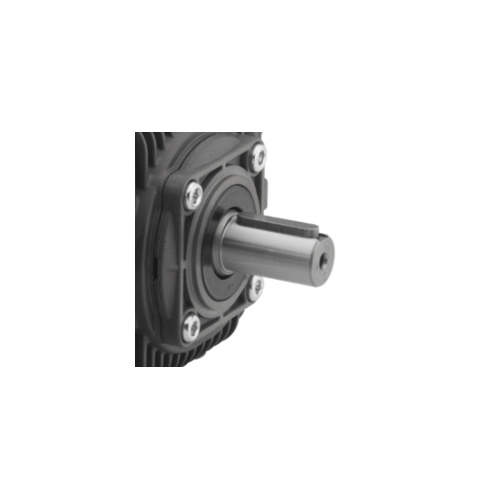

With its 24mm solid keyed shaft, the XWA9G24N ties into standard industrial drive
systems used on electric motor and engine-driven pump packages. The medium-pressure
rating and 1,750 RPM operating speed align well with tank-fed and recirculating
systems where consistent flow is more critical than peak pressure.

• 24mm keyed shaft for compatibility with common pulleys and couplings.
• Suitable for belt-drive or direct-coupled arrangements.
• Performs reliably in tank-fed, recirculating, and centralized wash setups.
• Well-suited to frame-mounted, skid, or equipment-integrated systems.
• Factory testing ensures the pump arrives ready for integration.

Tank-Fed & Recirculating Systems

The XWA9G24N’s flow profile and speed make it a strong fit for tanks, sumps, and
recirculation loops where a steady volume of water must be moved through spray bars,
manifolds, or multiple wand stations. The medium-pressure output allows system
designers to balance energy usage, component sizing, and cleaning performance.

• Supports continuous recirculation without excessive heating of the fluid.
• Compatible with filtration and reclaim systems used in wash bays.
• Flow and pressure values align with common nozzle and spray bar packages.
• Reduced risk of over-pressurizing tanks, manifolds, and piping circuits.
• Ideal for installations targeting long-term, stable hydraulic behavior.

Operational Benefits

In daily service, the XWA9G24N provides predictable cleaning performance with modest
maintenance requirements. Medium pressure minimizes damage risk to surfaces and
system hardware, while high flow ensures efficient rinsing and debris removal in
high-traffic or contamination-prone areas.

• Balanced cleaning power suitable for a wide range of surfaces.
• Lower stress on pipes, fittings, and flexible hose assemblies.
• Smooth hydraulic profile improves operator control at the gun or lance.
• Durable internals reduce frequency of seal and valve replacement.
• Backed by a 5-year commercial-use warranty and U.S.-based support.

Typical Applications

The XWA9G24N is intended for operations that require consistent washdown capability
rather than extreme cutting pressure. Its duty point and construction make it a
practical choice for agricultural, commercial, and light industrial environments
that depend on regular sanitation and equipment cleaning.

• Greenhouse and nursery washdown for floors, benches, and irrigation lines.
• Dairy and livestock barn cleaning, including stalls and milking areas.
• Light industrial sanitation for production floors and machinery.
• Food-grade washdown systems designed to meet regulatory standards.
• Tank-fed and recirculating wash bays for vehicles and equipment.
• Agricultural equipment rinse stations for tractors, sprayers, and implements.

Why Specify the XWA9G24N

The Annovi Reverberi XWA9G24N is a medium-pressure, high-flow pump for operators who
need reliable 9 GPM performance with controlled 2,400 PSI output. Its triplex plunger
design, ceramic plungers, stainless-steel valves, and oil-bath crankcase provide a
durable hydraulic core for continuous-duty systems that run day after day.

• Delivers 9.0 GPM at 2,400 PSI for efficient, controlled cleaning.
• Reduces risk of over-pressurizing sensitive components and surfaces.
• Combines industrial materials with maintenance-friendly monitoring features.
• Fits standard 24mm drive configurations used across multiple industries.
• Provides long-term value for WSHPWR.com customers building or upgrading medium-pressure systems.
