XWAM4G40N-SX | 4 GPM 4000 PSI Pump Left Hand 24mm Shaft Drive

XWAM4G40N-SX Annovi Reverberi Triplex Plunger Pump

The XWAM4G40N-SX is a high-pressure triplex plunger pump designed for commercial and industrial systems requiring reverse rotation compatibility. Delivering 4.0 gallons per minute at 4,000 PSI, this pump is optimized for maximum cleaning power in compact setups where a left-hand shaft drive is essential. With its 24mm solid left-hand shaft and 1,750 RPM operating speed, the XWAM4G40N-SX ensures seamless integration into reverse-drive systems without compromising performance.

Built for heavy-duty applications, this pump features ceramic plungers, industrial-grade seals, and stainless steel valves that provide long service life under continuous-duty cycles. Whether for contractors, mobile cleaning systems, or fleet operators, the XWAM4G40N-SSX is engineered to withstand the most demanding environments.

Built for Reverse Rotation Systems

Unlike standard right-hand shaft pumps, the XWAM4G40N-SX is specifically engineered with a left-hand solid shaft to meet the needs of reverse-drive installations. Its triplex plunger design delivers smooth, pulsation-free flow, minimizing strain on hoses and reducing wear on downstream components. Ceramic plungers, premium seals, and stainless valves ensure durability while maintaining consistent 4,000 PSI performance.

Key Specifications of XWAM4G40N-SX

• Flow Rate: 4.0 GPM
• Pressure Rating: 4,000 PSI
• Operating Speed: 1,750 RPM

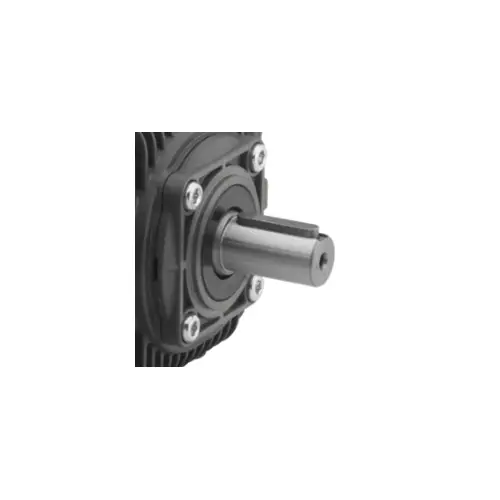

• Shaft Size: 24mm solid shaft (left-hand orientation)
• Pump Type: Triplex plunger pump

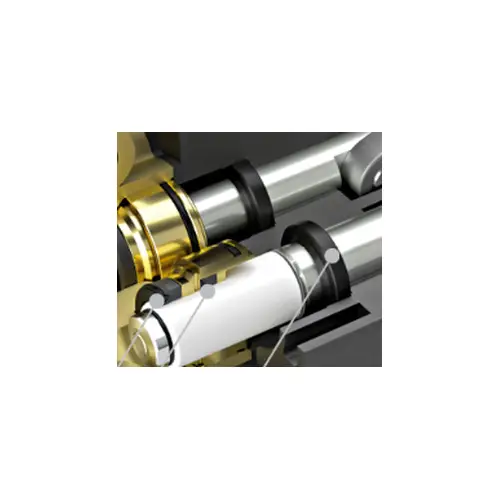

• Plungers: Ceramic plungers for abrasion and heat resistance
• Valves: Stainless steel for chemical durability
• Seals: Industrial-grade high-pressure seals
• Crankcase: Oil-bath lubrication with vented dipstick and sight glass

What’s Included with XWAM4G40N-SX

• Factory-installed break-in oil for fast startup
• Oil sight glass for quick visual lubrication checks
• Vented dipstick for simplified maintenance
• Detailed operator manual and schematic for setup and servicing
• Factory-tested for flow, pressure, and rotation compatibility
• 5-year warranty with U.S.-based service support

How the Pump Works

The XWAM4G40N-SX utilizes a triplex plunger system in which three ceramic plungers compress incoming water through stainless steel valves to produce a steady output of 4 GPM at 4,000 PSI. Its reverse rotation capability allows integration into non-standard equipment layouts, while the 1,750 RPM operating speed ensures balanced performance, reduced vibration, and minimal wear.

The oil-bath crankcase, equipped with a sight glass and a vented dipstick, keeps internal components lubricated and simplifies routine maintenance, ensuring long-term reliability in high-pressure cleaning operations.

Benefits

• Reverse Drive Compatibility: Left-hand 24mm shaft supports reverse-rotation systems
• Industrial Pressure Output: 4,000 PSI performance for tough cleaning applications
• Durable Components: Ceramic plungers and stainless steel valves resist heat and chemicals
• Easy Maintenance: Sight glass and dipstick simplify lubrication checks
• Smooth Operation: Triplex plunger design reduces pulsation
• Reliable Engineering: Factory-tested with a 5-year warranty
• Rugged Construction: Designed to handle harsh environments and heavy workloads

Typical Applications

• Mobile wash trailers and truck-mounted pressure washer systems
• Fleet washing operations
• Graffiti and coating removal
• Building and exterior surface maintenance
• Restaurant hood and duct sanitation
• Industrial washdown and high-pressure cleaning contractors

Why Choose the XWAM4G40N-SX?

The XWAM4G40N-SX is the ideal solution for operators who require extreme pressure in a reverse-drive system. With its 4.0 GPM and 4,000 PSI output, plus a left-hand shaft orientation, this pump provides the power and flexibility needed for specialized commercial installations.

Engineered with ceramic plungers, stainless valves, and industrial seals, this model delivers long-lasting durability. Its user-friendly maintenance design ensures reliable, efficient operation shift after shift — and with its 5-year warranty and U.S.-based support, you can count on dependable performance for years to come.
