RRA4G40N 4.0 GPM 4000 PSI | Belt-Drive Pressure Pump

RRA4G40N | 4.0 GPM 4000 PSI Triplex Pump, 1750 RPM, 24 mm Solid Shaft

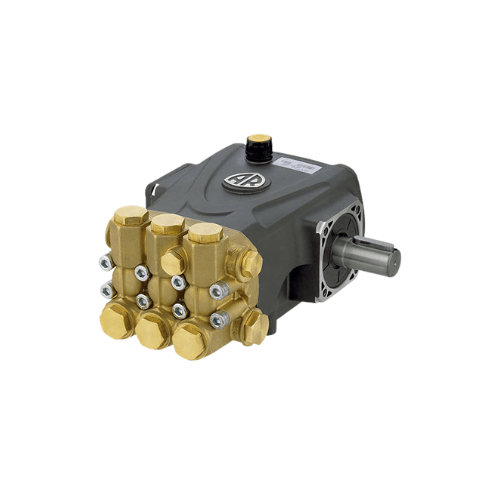

The RRA4G40N is an Annovi Reverberi triplex plunger pump rated 4.0 GPM at 4,000 PSI at 1750 RPM, with a 24 mm keyed solid shaft. Run it off a gas engine with a belt drive, or couple it straight to a standard 1750 RPM electric motor with no belts at all.

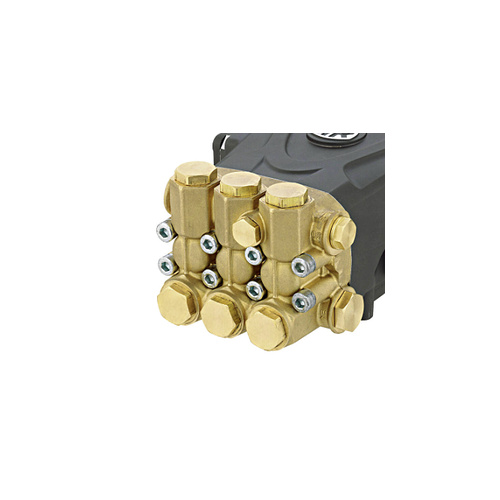

At 1750 RPM it turns half the speed of a direct-drive gas pump, so seals, valves and bearings run cooler and last longer. The ceramic plungers and crankshaft-driven triplex design are built for daily commercial work and can be rebuilt with a kit when the seals finally wear.

What’s in the Box

• RRA4G40N pump with 24 mm keyed solid shaft
• Crankcase oil, pre-filled at the factory
• Vented dipstick. The pump ships with a shipping plug in the oil port. Swap in the dipstick before the first start.
• Operation manual and parts schematic
• 5-year Annovi Reverberi warranty

Will It Fit My Machine?

• Drive: belt drive, or direct coupling to a 1750 RPM electric motor.
• Gas engine: 420cc or larger (15 HP class). A 440cc or larger engine holds full pressure all day.
• Electric motor: 15 HP for full 4,000 PSI. A 10 HP motor runs it at about 3,600 PSI.
• Belt drive: size the pulleys so the pump turns no faster than 1750 RPM.

Not sure? Text a pump specialist at (505) 226-6061 with your engine or motor details and we’ll confirm the fit.

What Else You’ll Need

The pump is sold bare. The unloader, thermal relief valve, inlet filter and mounting rails are sold separately:

• Unloader valves: choose one rated for at least 4,000 PSI and 4 GPM. The VRT3-310EZ package is a matched fit.
• Thermal relief valves, inlet filters and rail kits: the AR2633 rail kit mounts the pump to a base for belt drive.

RRA4G40N Specifications

• Model: RRA4G40N
• Flow: 4.0 GPM
• Max Pressure: 4,000 PSI
• Speed: 1750 RPM

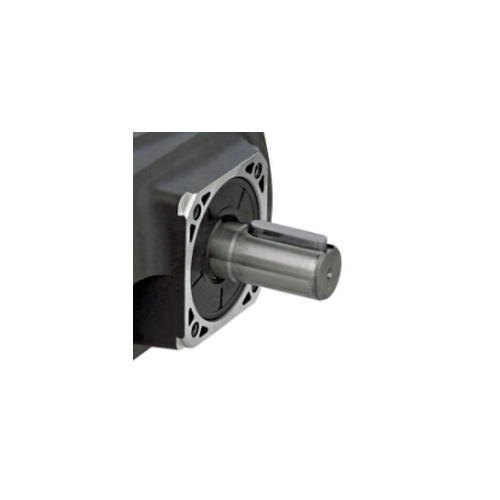

• Shaft: 24 mm solid, keyed
• Drive Size: 15 HP electric, or 420cc+ gas with belt drive
• Plungers: Ceramic
• Max Water Temperature: 140°F
• Weight: 18 lbs
• Warranty: 5 years
• Brand: Annovi Reverberi

Shipping: Usually ships via UPS in 1 to 3 days.
