XWM1530N-SX | 4 GPM 4350 PSI Pump 1450 RPM Left-Hand Shaft

Annovi Reverberi XWM1530N-SX – 4.0 GPM, 4,350 PSI Reverse-Rotation Industrial Plunger Pump

System Role

• Reverse-rotation industrial triplex plunger pump delivering 4.0 GPM at 4,350 PSI for mirrored and left-hand drive installations.
• Slow-speed 1,450 RPM operating profile supports reduced vibration and extended service life in continuous-duty environments.
• Left-hand 24 mm solid keyed shaft supports specialty layouts where standard right-hand rotation pumps will not fit.
• Compact high-PSI platform designed for dual-pump trailers, skid systems, and OEM equipment requiring mirrored placement.

Key Specifications

Ratings & Configuration

• Model: XWM1530N-SX.
• Flow: 4.0 GPM.
• Maximum Pressure: 4,350 PSI.
• Speed: 1,450 RPM.

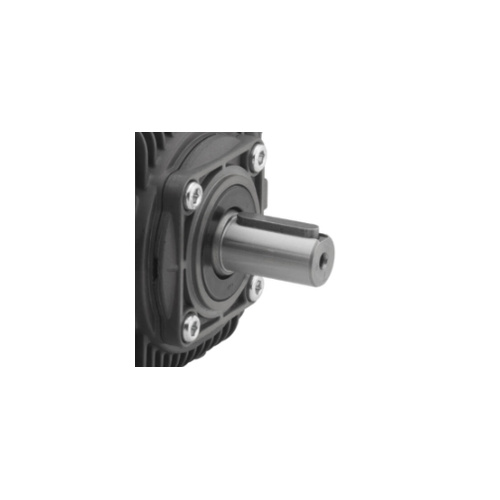

• Shaft: 24 mm solid left-hand keyed shaft.
• Manifold: Forged brass.
• Plungers: Heat-resistant ceramic.
• Valves: Stainless steel.
• Bearings: Oversized tapered roller bearings.
• Seals: Premium long-life sealing system.
• Warranty: 5-year commercial warranty.

Mirrored & Reverse-Drive Integration

Installation Scenarios of XWM1530N-SX

• Dual-pump trailer rigs requiring mirrored alignment and balanced equipment layouts.
• Enclosed or skid-mounted systems with tight spacing, reversed driveline routing, or counter-rotation requirements.
• Reverse-rotation motors and custom OEM machinery where left-hand shaft compatibility is mandatory.

Industrial-Grade Durability

Core Build Elements

• Forged brass manifold supports structural integrity and corrosion resistance under high pressure.

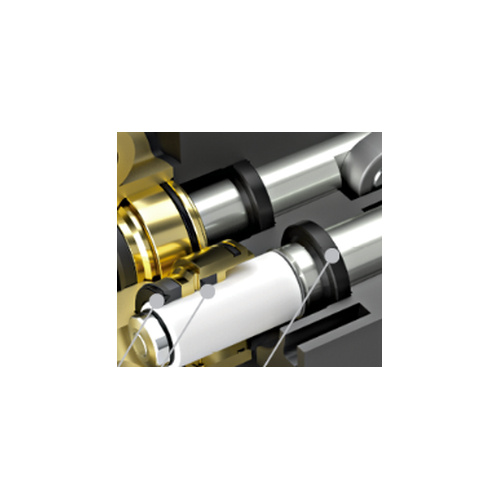

• Ceramic plungers reduce heat, friction, and packing wear for extended runtime.
• Stainless steel valves support reliable sealing and broad fluid compatibility.
• Oversized tapered roller bearings support smooth operation under extreme PSI loading.
• Premium-grade seals support consistent pressure output and reduced leakage risk.

Service & Maintenance

Operator-Focused Features

• Integrated oil sight glass supports quick oil level checks.
• Vented dipstick supports proper crankcase ventilation and pressure control.
• Factory pre-filled with break-in oil for streamlined commissioning.
• Service documentation and test certification support field maintenance planning.

Advantages of XWM1530N-SX

Operational Benefits

• Extreme pressure output supports cutting, stripping, and restoration work at up to 4,350 PSI.
• Left-hand keyed shaft supports mirrored and reverse-rotation builds without redesigning the driveline.
• Heavy-duty internals support long service life in industrial duty cycles.
• Tapered roller bearing design supports stability under high-load operating conditions.
• Service access features support efficient inspections and routine upkeep.
• Backed by a 5-year commercial warranty for long-term confidence.

Typical Applications

Common Industrial Uses

• Paint stripping and industrial surface preparation.
• Graffiti and gum removal for municipal and contractor operations.
• Concrete cleaning and etching prior to resurfacing or coating.
• Fleet and municipal vehicle wash stations.
• Custom industrial rigs requiring mirrored pump placement.
• Sanitation and facility maintenance teams needing compact high-PSI power.

What’s Included with XWM1530N-SX

Factory Provisioning

• Factory-installed break-in oil.
• Oil sight glass and vented dipstick.
• User manual, pump schematics, and test certification.
• 5-year commercial warranty with U.S.-based support.
