XTV2G15EBAF8M2I 2.0 GPM 1500 PSI Pump | 3400 RPM F8M2I

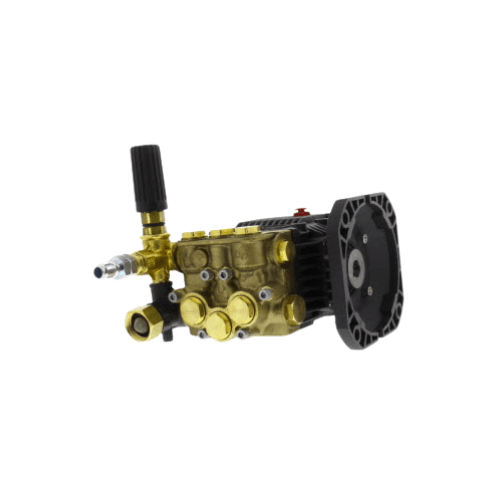

XTV2G15EBAF8M2I by Annovi Reverberi — Triplex Plunger Pump with Gymatic Unloader and Chemical Injector | 2.0 GPM | 1,500 PSI | Brass Head | NEMA 56C Electric Motor Mount

The XTV2G15EBAF8M2I by Annovi Reverberi is a compact commercial-grade triplex ceramic plunger pump engineered for electric motor-driven pressure washing systems that demand dependable output, integrated chemical application capability, and a fully rebuildable platform built to last. Rated at 2.0 GPM and 1,500 PSI at 3,400 RPM, the XTV2G15EBAF8M2I close-couples directly to NEMA 56C-frame electric motors via its F8 face flange, delivering smooth, consistent cleaning performance for indoor wash bays, detail shops, rental fleets, facility maintenance stations, and any environment where electric operation is preferred or required.

Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated AR North America technical support — the XTV2G15EBAF8M2I arrives as a complete, factory-tested assembly. Pre-filled with AR break-in oil, equipped with a Gymatic 3/B unloader and integrated downstream chemical injector, and packaged with mounting bolts and fasteners, a vented dipstick, operator’s manual, and full parts schematic, this pump is ready to install from the moment it arrives. Protected by a 5-year US limited warranty through AR North America and built to be fully rebuilt rather than replaced, the XTV2G15EBAF8M2I is a long-term investment in a pump platform capable of a decade of productive service life.

Decoding the XTV2G15EBAF8M2I Model Number

What Every Segment of This AR Pump Designation Tells You

Annovi Reverberi encodes all critical specification data — performance output, shaft type, head material, connecting rod material, flange interface, unloader family, and injector configuration — directly into the pump model number. The XTV2G15EBAF8M2I carries one additional designation segment compared to standard XTV models, and understanding it confirms both the pump’s material specification and its drive compatibility before installation:

• XTV — Pump series: XT Series triplex plunger pump
• 2G15 — Performance rating: 2.0 GPM flow rate at 1,500 PSI maximum operating pressure
• E — Shaft version: Electric motor shaft — compatible with 5/8″ or 1-1/8″ hollow shaft electric motor drives
• BA — Material specification: Forged Brass manifold head with Aluminum connecting rods — the brass head delivers corrosion resistance and pressure integrity at the wetted end while aluminum connecting rods reduce reciprocating mass in the crankcase
• F8 — Flange type: NEMA 56C close-coupling face mount for RCA, RCV, XJV, XTA, and XTV Series ‘E’ version pumps with 5/8″ I.D. shaft (AR part AR1584)
• M2 — Unloader code: Gymatic (C2 = Gymatic per AR suffix designation) — Gymatic 3/B series internal bypass unloader, brass body, adjustable pressure regulation
• I — Chemical injector: Included — a downstream soap and chemical injector is integrated into the Gymatic unloader assembly, enabling low-pressure detergent application without a separate injector fitting

The BA material callout is a specification detail that distinguishes this model from standard XTV variants. The forged brass manifold head at the wetted end — where water, pressure, and cleaning chemistry interact — provides the corrosion resistance and structural density that defines AR’s commercial pump longevity. The aluminum connecting rods in the crankcase reduce the reciprocating weight of the drivetrain, contributing to smooth operation at 3,400 RPM across extended run cycles.

The “I” suffix confirms this pump includes an integrated fixed-rate downstream venturi injector built into the Gymatic unloader body. Operators who do not require chemical feed capability should select the model variant without the “I” suffix.

Key Specifications

XTV2G15EBAF8M2I Technical Details at a Glance

• Flow Rate: 2.0 GPM (gallons per minute)
• Maximum Pressure: 1,500 PSI
• Operating Speed: 3,400 RPM
• Pump Type: Triplex ceramic plunger pump — three-piston crankshaft-driven design for smooth, consistent, low-pulsation output
• Head Material: Forged brass (B) — dense, pore-free wetted-end construction for corrosion resistance and long-cycle pressure integrity
• Connecting Rods: Aluminum (A) — reduced reciprocating mass for smooth high-RPM operation
• Plungers: Solid ceramic — exceptional hardness, wear resistance, and chemical inertness across extended commercial operating hours
• Valves: Stainless steel — precise seating geometry, scale resistance, and reliable high-cycle performance
• Shaft Compatibility: Electric motor E-version — 5/8″ or 1-1/8″ hollow shaft
• Flange: F8 — NEMA 56C close-coupling face mount for XTV Series ‘E’ version (AR part AR1584)
• Unloader System: Gymatic 3/B series (M2 / C2 code) — brass-body internal bypass unloader, adjustable pressure regulation, rated to 3,650 PSI and 3–4 GPM
• Unloader Part Reference: AR20399 — adjustable Gymatic unloader, 1.8 injector ratio, 1/2″ M inlet, 3/8″ M outlet, brass body, ID stamp 1
• Chemical Injector: Included — downstream injector integrated into Gymatic unloader assembly (“I” suffix confirmed)
• Warranty: 5-year limited warranty — US-based coverage through AR North America with domestic parts and service support

What’s Included in the Box

A Complete, Factory-Configured Assembly Ready for Installation

Every XTV2G15EBAF8M2I ships fully assembled and field-ready. No supplemental hardware sourcing, fluid filling, or pre-run preparation is required before installation:

• Factory-installed Gymatic 3/B unloader (AR20399) — pre-mounted with integrated downstream chemical injector active and ready for detergent supply line connection
• AR factory break-in oil — crankcase pre-filled to the correct operating level for first startup without modification
• Vented dipstick — enables fast, accurate crankcase oil level checks while maintaining proper crankcase pressure relief during operation
• Clear oil sight glass — at-a-glance oil level monitoring without removing the dipstick cap
• Mounting bolts and fasteners — hardware pre-selected and sized for F8 NEMA 56C face-mount installation on compatible electric motors
• Operator’s manual — complete installation, startup, operating, and maintenance procedures including oil change intervals, winterization protocol, and chemical injector care
• Parts schematic — exploded-view diagram with AR part numbers for every serviceable pump component for field and shop reference
• Factory test certification — every XTV2G15EBAF8M2I load-tested at 50%, 100%, and 150% of rated output before leaving the AR manufacturing facility

Brass Head, Aluminum Connecting Rods — What the BA Designation Means in Practice

Material Engineering at Every Stage of the Pump

The BA designation in the XTV2G15EBAF8M2I model number is not incidental — it defines the material specification at two distinct points in the pump’s mechanical architecture, each chosen for a specific engineering reason:

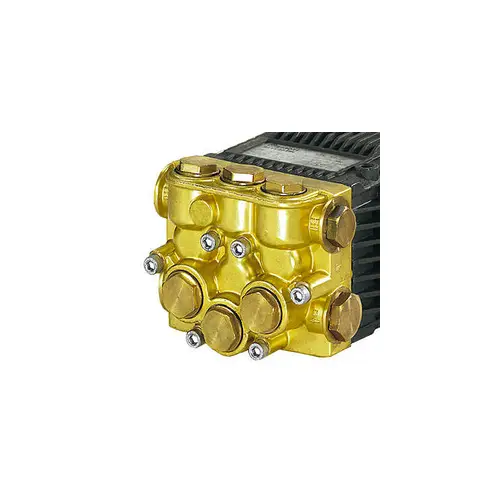

• Forged brass manifold head (B) — the manifold is where water, pressure, detergent chemistry, and heat all meet simultaneously. Forged brass provides a dense, pore-free structure that resists the corrosive attack of chlorinated water, acidic cleaning agents, and hard water mineral deposits that cause cast aluminum manifolds to pit and fail prematurely under sustained chemical exposure. The brass head is the primary factor in the XTV2G15EBAF8M2I’s long service life at the wetted end.
• Aluminum connecting rods (A) — the connecting rods link the crankshaft to the plunger assemblies. Aluminum’s lower density compared to steel or brass reduces the reciprocating mass at each stroke, contributing to smoother crankshaft rotation at 3,400 RPM, reduced vibration transmission to the motor shaft, and lower bearing load across extended operating hours.

Together, the BA material combination delivers a pump that is corrosion-resistant where chemical exposure is highest and mechanically efficient where rotational dynamics matter most — a balanced specification for a 2.0 GPM electric-driven platform running in continuous commercial wash station service.

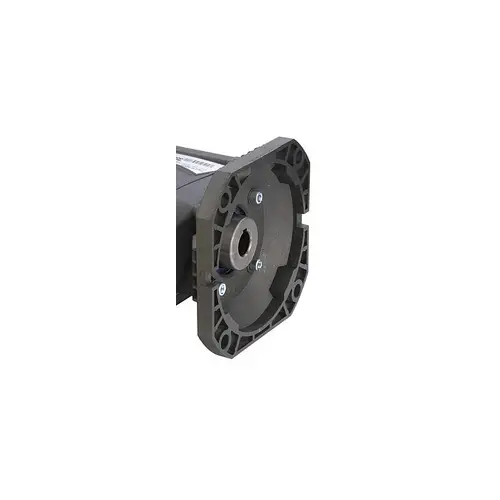

F8 NEMA 56C Face Mount — Direct Electric Motor Integration

Compact, Aligned, and Vibration-Free

The F8 flange on the XTV2G15EBAF8M2I provides a close-coupling face-mount interface for NEMA 56C-frame electric motors with a 5/8″ I.D. hollow shaft — the standard configuration across major US electric motor manufacturers:

• Precision shaft concentricity — the pump and motor share a common face-mount interface, ensuring factory-accurate shaft alignment without adjustment procedures or custom brackets
• Minimal installation footprint — the compact coupled assembly suits wall-mount frames, cabinetized wash stations, and space-constrained indoor installations where belt-drive configurations are impractical
• Broad motor compatibility — the NEMA 56C standard is used across major US electric motor manufacturers, giving builders and integrators wide motor sourcing flexibility without changing the pump specification
• Supplied mounting hardware — bolts and fasteners sized for the F8 bolt pattern are included, eliminating an additional sourcing step during assembly

The Gymatic Unloader — Tamper-Resistant Pressure Control with Integrated Chemical Feed

Set It Once. Trust It Across Every Operator and Every Cycle.

The Gymatic 3/B unloader (AR20399) on the XTV2G15EBAF8M2I is rated to 3,650 PSI — well above this pump’s 1,500 PSI operating pressure. AR unloader ratings carry an accepted 15% upside variance, and pairing a higher-rated unloader with a lower-pressure pump is deliberate engineering practice: it widens the stable pressure regulation window, reduces mechanical wear on unloader internals, and extends the rebuild interval by operating the unloader well within its design envelope throughout the pump’s service life.

Once operating pressure is set and the adjustment locked, the Gymatic’s tamper-resistant design holds that setting reliably — making the XTV2G15EBAF8M2I particularly well suited for:

• Rental equipment fleets — pressure is dealer-configured once and held consistently across every rental cycle, preventing user-induced over-pressure events and reducing service call frequency
• Managed cleaning crews — supervisors set pressure for the specific surface and application; crew members cannot inadvertently adjust settings or damage surfaces through over-pressurization
• Fixed commercial wash stations — repeatable, consistent wash results across multiple shifts and operators without pressure drift between sessions

Beyond tamper resistance, the Gymatic 3/B delivers:

• Internal bypass operation — when the spray trigger is released, water is smoothly redirected through the bypass circuit, preventing deadhead pressure spikes that accelerate seal and valve wear during idle intervals
• Integrated downstream chemical injector — the venturi-driven injector built into the unloader body draws detergent, degreaser, or soap from a supply container when the operator switches to low-pressure application mode — no separate downstream injector assembly required on the XTV2G15EBAF8M2I
• Motor load reduction in bypass — in trigger-off bypass mode, reduced back-pressure lowers motor amperage draw and heat accumulation, extending motor life in continuous-use electric wash station environments
• Brass body construction — resists corrosion from cleaning chemicals, chlorinated supply water, and sustained indoor or outdoor exposure

Why 2.0 GPM at 1,500 PSI Is the Right Output for This Application Class

Precision Over Power — Surface-Safe Performance Where It Matters

The XTV2G15EBAF8M2I is positioned at the entry point of AR’s commercial electric pump range, and its 2.0 GPM / 1,500 PSI output is a deliberate engineering choice, not a compromise:

• Surface-safe pressure — 1,500 PSI delivers effective cleaning on painted surfaces, vehicle finishes, wood decking, vinyl siding, composite materials, and delicate stonework where higher-pressure pumps risk etching, stripping, or finish damage
• Reduced water consumption — 2.0 GPM limits water use per hour, a meaningful advantage in water-restricted facilities, locations on metered supply, and wash stations where effluent containment and disposal cost are factors
• Lower motor demand — the moderate duty point requires less motor horsepower, enabling a smaller, more energy-efficient motor selection for fixed wash station builds without sacrificing cleaning effectiveness
• Rental-appropriate output — 1,500 PSI is effective cleaning pressure that gives inexperienced rental users meaningful results while substantially reducing the risk of surface damage claims from aggressive washing technique
• Quiet, low-vibration operation — the combination of lower operating pressure, aluminum connecting rods, and triplex plunger design produces one of the smoother, quieter operating profiles in the XTV range — an advantage in customer-facing environments like detail shops and facility wash stations

Typical Applications

Where the XTV2G15EBAF8M2I Delivers Best Results

The XTV2G15EBAF8M2I’s electric drive compatibility, integrated chemical injector, tamper-resistant pressure control, and 2.0 GPM / 1,500 PSI output are well matched for:

• Automotive detail shops and car wash stations — surface-safe 1,500 PSI with integrated detergent feed for pre-soak, degreasing, and rinse workflows on painted finishes and trim
• Rental equipment fleets — set-and-lock pressure, durable BA construction, and factory-tested reliability maximize rental-ready uptime and minimize damage claims
• Indoor and covered wash bays — electric operation eliminates exhaust and noise; NEMA 56C direct mount enables compact wall-frame and cabinet-style installations
• Managed commercial cleaning crews — locked pressure settings deliver consistent, repeatable results across multiple operators without drift or re-adjustment
• Facility and property maintenance — storefronts, walkways, pool decks, outdoor furniture, and building exteriors requiring regular gentle cleaning with detergent application
• Custom electric wash skid builders — OEM integrators and equipment fabricators specifying a warranted, surface-safe pump platform for light-duty commercial electric pressure washer builds
• School, municipal, and institutional facilities — common area cleaning, grounds maintenance, and equipment washdowns where electric operation, low noise, and operator safety are all requirements

5-Year US Warranty and Full Rebuildability

Domestic Support Built to Last as Long as the Pump

The XTV2G15EBAF8M2I is protected by Annovi Reverberi’s 5-year limited warranty through AR North America’s US-based warranty and service network. Every internal wear component — ceramic plungers, brass manifold seals and o-rings, stainless valve seats and springs, Gymatic unloader service parts, aluminum connecting rod assemblies, and crankcase bearings — is stocked domestically through AR’s authorized distribution channels.

With consistent maintenance — break-in oil change at 50 hours, scheduled oil changes every 500 hours or 3–5 months, annual valve and seal inspection, chemical injector circuit flushing with clean water after every detergent session, and proper winterization using RV-grade environmentally safe antifreeze — the XTV2G15EBAF8M2I is engineered for 10 or more years of productive service life. AR North America’s domestic parts depth ensures rebuild kits, plunger sets, and Gymatic unloader service components are typically available same-week, keeping your operation running rather than waiting on international shipping timelines.

The Electric Wash Pump Built for Precision, Quiet Operation, and Long-Term Value

Italian Engineering. Brass Head. US Warranty Coverage.

For operators, builders, and facility managers who need a compact electric-driven triplex pump with a forged brass head, integrated detergent capability, tamper-resistant pressure control, and a surface-safe 1,500 PSI output, the XTV2G15EBAF8M2I delivers a factory-tested, fully documented, and completely rebuildable platform from one of the global pressure pump industry’s most trusted manufacturers. Compact. Quiet. Chemical-capable. Five years of US warranty. A decade of service life. The XTV2G15EBAF8M2I is the right pump when precision, surface safety, and electric simplicity are the priority.
