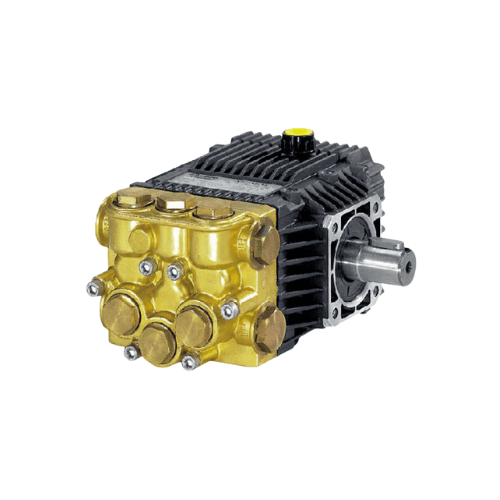

XMV28G27D-F25M 2.8 GPM 2700 PSI | 3400 RPM F25M triplex pump

Overview

The Annovi Reverberi XMV28G27D-F25M is a professional-grade triplex ceramic plunger pump designed to deliver reliable performance in the most demanding pressure washing environments. With an output of 2.8 GPM at 2,700 PSI and 3,400 RPM, this pump is built for contractor-grade cleaning, mobile wash rigs, and industrial systems that require consistent pressure and long service life.

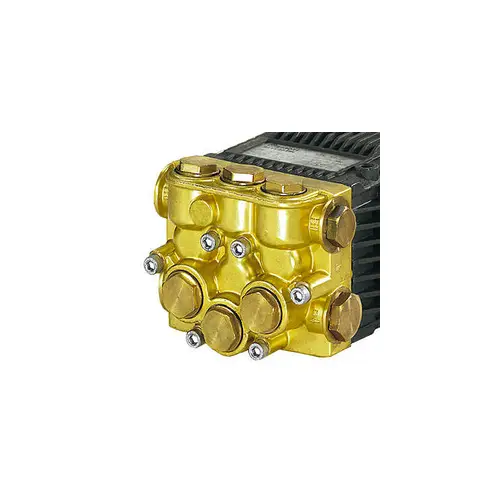

Engineered with a precision-machined brass manifold, stainless steel valves, and ceramic plungers, the XMV28G27D-F25M provides both power and durability. Its design ensures minimal wear on internal components while maintaining smooth, efficient operation under continuous duty.

Key Specifications

Performance & Design

• Flow Rate: 2.8 GPM
• Maximum Pressure: 2,700 PSI
• Speed: 3,400 RPM
• Pump Type: Triplex ceramic plunger design
• Mount: F25 J609A flange (same fit as the “D” mount version)
• Unloader: Minimatic adjustable, no chemical injector
• Warranty: 5-year manufacturer warranty

What’s Included with XMV28G27D-F25M

Factory-Supplied Components

Each XMV28G27D-F25M package comes fully equipped for convenience and long-term operation:

• Pre-filled premium break-in oil for immediate use
• Vented dipstick for easy oil checks
• Oil sight glass for monitoring crankcase levels
• Mounting bolts for secure installation
• Operator’s manual & parts schematic for maintenance and servicing
• Factory testing certification ensuring flow, pressure, and integrity

How It Works

Triplex Plunger Operation

This pump uses a triplex plunger system with three precision ceramic plungers, delivering steady pressure with reduced pulsation. At 3,400 RPM, it provides efficient power transfer for rapid cleaning applications.

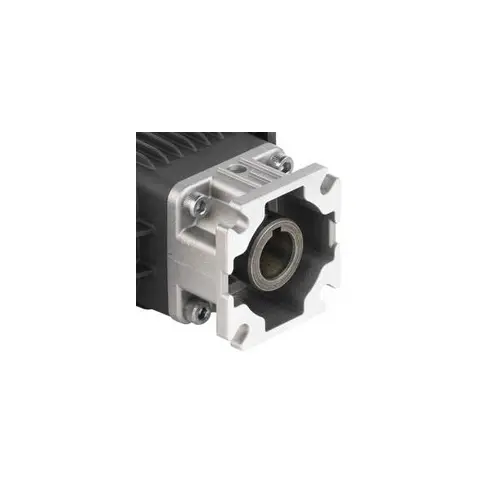

The F25 J609A flange design (equivalent to the “D” mount) allows direct connection to compatible engines or drive systems, ensuring simple setup. Unlike standard models, the XMV28G27D-F25M comes configured without a chemical injector, making it ideal for systems where detergent injection is handled separately for better control and longer injector life.

Advanced Features

Design & Reliability

• Triplex Ceramic Plunger Design: Provides long-lasting performance and smooth water flow.
• Brass Manifold: Precision-machined for strength and corrosion resistance.
• Stainless Steel Valves: Durable, precise water control for heavy-duty cycles.
• F25 J609A Flange Mount: Direct-fit connection for simple installation.
• Minimatic Adjustable Unloader: Allows fine control over system pressure.
• No Injector Configuration: Optimized for setups with independent detergent systems.
• User-Friendly Maintenance: Oil sight glass and vented dipstick make servicing simple.
• Factory-Tested: Every unit undergoes rigorous quality checks before shipping.

Applications

Professional & Commercial Use

The XMV28G27D-F25M is built to handle high-demand jobs across multiple industries:

• Contractor-Grade Pressure Washers: For tough cleaning jobs on construction sites and commercial properties.
• Mobile Wash Rigs: Ideal for fleet services and portable cleaning systems.
• Industrial Cleaning: Maintains heavy equipment, plant machinery, and large-scale facilities.
• Fleet Maintenance: Perfect for truck, bus, and transit wash systems.
• Agricultural Equipment: Cleans tractors, combines, and heavy-duty farm tools.
• Building Maintenance: Effective for large surface preparation, siding, decks, patios, and warehouse washdown.

Warranty & Support

Long-Term Protection

Backed by a 5-year limited warranty, the XMV28G27D-F25M offers peace of mind and reliable after-sales support. Annovi Reverberi’s nationwide service center network ensures quick access to repairs, spare parts, and maintenance when needed.

Why Choose the XMV28G27D-F25M?

Balanced Performance & Durability

This model combines efficiency, durability, and adaptability in a compact package. Its 2.8 GPM flow rate at 2,700 PSI delivers the perfect balance of pressure and water volume for both professional and commercial applications. The F25 flange compatibility simplifies installation, while the triplex ceramic plunger design guarantees smooth performance and a longer pump lifespan.

If you’re looking for a contractor-ready pressure washer pump that delivers consistent results in demanding environments, the Annovi Reverberi XMV28G27D-F25M is the solution.

XMV28G27D-F25M Summary

Upgrade your system with the Annovi Reverberi XMV28G27D-F25M Triplex Pump, delivering 2.8 GPM at 2,700 PSI with 3,400 RPM operation. Built with a brass manifold, stainless steel valves, and ceramic plungers, this pump is engineered for contractor-grade, industrial, and fleet cleaning applications. Featuring an F25 flange mount, Mini-matic adjustable unloader, and no injector configuration, it’s designed for professional setups requiring maximum reliability. Backed by a 5-year warranty and nationwide service network, this pump is built for long-term performance.
