SXMV4G40D-F24 4.0 GPM 4000 PSI | 3400 RPM high-output F24 pump

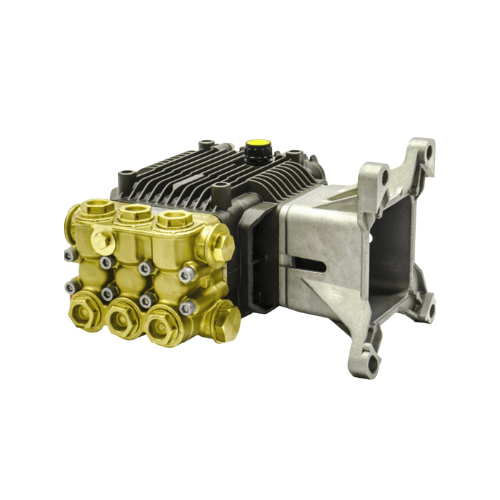

About the Annovi Reverberi SXMV4G40D-F24 Triplex Plunger Pump

High-Output Commercial and Industrial Pumping Performance

The Annovi Reverberi SXMV4G40D-F24 is a professional-grade triplex plunger pump engineered for
applications requiring dependable, high-pressure cleaning performance. Delivering
4.0 GPM at 4,000 PSI and operating at 3,400 RPM, this model is built for
contractors, industrial operators, fleet managers, and heavy-equipment facilities that rely on consistent
high-output pressure washing capabilities. Its design supports both continuous-duty cycles and demanding
daily workloads in construction sites, municipal service operations, and industrial wash bays.

Featuring a durable F24 flange mount and a 1-inch hollow keyway shaft, the
SXMV4G40D-F24 couples directly to compatible gas or diesel engines for secure, vibration-stable installation.
The pump’s forged brass manifold, stainless steel valves, and solid ceramic plungers provide long-term durability
and efficient performance under high pressure, even in harsh operating environments. Every unit is
factory-tested for flow and pressure, ensuring dependable operation as soon as it is installed.

Key Specifications for SXMV4G40D-F24

Technical Details

• Flow: 4.0 GPM
• Pressure: 4,000 PSI maximum
• Speed: 3,400 RPM
• Pump Style: Triplex plunger pump
• Mounting: F24 direct-drive engine flange
• Shaft: 1-inch hollow keyway shaft
• Manifold: Forged brass
• Plungers: Solid ceramic plungers
• Valves: Stainless steel valve assemblies
• Warranty: 5-year limited AR warranty

What’s Included

Factory-Prepared Components

• Pre-filled break-in oil for immediate commissioning
• Vented dipstick for convenient oil checks
• Oil sight glass for fast lubrication assessments
• Mounting hardware for engine attachment (as supplied)
• Operation manual with installation guidelines
• Exploded-view parts schematic for long-term maintenance planning

How the SXMV4G40D-F24 Operates

Triplex Plunger Performance

This pump utilizes a precision-machined triplex plunger system that generates smooth, consistent flow at high
pressure. The ceramic plungers reduce friction and heat, extending seal longevity and protecting internal pump
components. The forged brass manifold provides corrosion resistance and structural stability, while the stainless
steel valves deliver precise water movement, allowing the pump to maintain pressure under varying load conditions.

Equipped with an F24 direct-drive flange, the pump mounts securely to small and mid-size engines
without relying on pulley alignment or belt tension adjustments. Operating at 3,400 RPM, the pump
provides rapid cleaning performance ideal for high-throughput wash operations and mobile contractor rigs.

Premium Features of SXMV4G40D-F24

Commercial-Grade Advantages

• High-performance output: delivers 4.0 GPM at 4,000 PSI for aggressive cleaning tasks.
• Direct engine mount: F24 flange simplifies installation on gas or diesel engines.
• Corrosion-resistant manifold: forged brass ensures long-term durability.
• Ceramic plunger design: reduces heat and mechanical wear.
• User-friendly maintenance: sight glass and vented dipstick streamline service intervals.
• Factory-tested reliability: every pump is pressure- and flow-tested before shipping.
• 5-year protection: backed by Annovi Reverberi’s extensive support network.

Applications

Where This Pump Excels

• Fleet washing: trucks, buses, vans, utility vehicles.
• Construction equipment: concrete residue removal, mud, grease, and heavy debris cleaning.
• Municipal maintenance: sanitation vehicles, public works cleaning, facility washdown.
• Agriculture: tractors, sprayers, food-processing washdown, livestock area cleaning.
• Industrial wash bays: continuous-duty applications requiring dependable pressure output.
• Contractor cleaning services: mobile rigs, trailer systems, daily-use high-pressure washing.

Warranty and Service Support

Long-Term Reliability

The SXMV4G40D-F24 includes a 5-year limited manufacturer’s warranty, supported by Annovi Reverberi’s
nationwide parts and service network. Replacement seals, valves, plungers, and repair components are readily available,
ensuring that maintenance and field service can be performed quickly and efficiently.

Why Choose the SXMV4G40D-F24?

Built for Demanding Environments

Professionals choose the SXMV4G40D-F24 for its powerful output, efficient direct-drive compatibility, and rugged
construction. Its triplex plunger system, ceramic plungers, brass manifold, and stainless steel valves deliver the
reliability required for daily commercial use. Whether installed on a mobile wash rig, at an industrial facility,
or in a contractor-grade cleaning system, this pump provides consistent, high-pressure performance.

With strong cleaning capabilities, easy maintenance, and proven engineering, the Annovi Reverberi SXMV4G40D-F24 is
a dependable investment for any operation requiring durable, high-output pressure washing performance.
