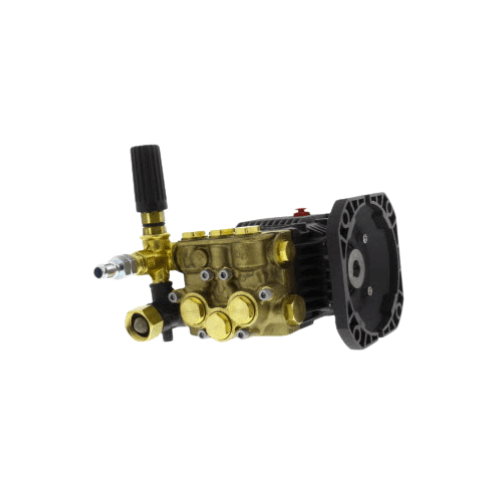

XMV2G25E-F33M2I 2.0 GPM 2500 PSI Pump | 3400 RPM F33M2I

XMV2G25E-F33M2I by Annovi Reverberi — Triplex Plunger Pump with Gymatic Unloader and Chemical Injector | 2.0 GPM | 2,500 PSI | NEMA 56C Electric Motor Mount | XM Series Commercial Platform

The XMV2G25E-F33M2I by Annovi Reverberi is a compact XM Series triplex ceramic plunger pump engineered for electric motor-driven pressure washing systems that require 2,500 PSI output, integrated downstream chemical application, and the structural durability of AR’s commercial high-pressure platform in a space-efficient, electrically driven configuration. Rated at 2.0 GPM and 2,500 PSI at 3,400 RPM, the XMV2G25E-F33M2I mounts directly to NEMA 56C-frame electric motors via its F33 face flange — delivering consistent high-pressure cleaning performance for fixed indoor wash stations, fleet maintenance bays, food processing facilities, rental operations, and any installation where a compact XM Series electric-drive pump with integrated chemical feed is the correct specification.

The XMV2G25E-F33M2I carries the “E” shaft designation — a native electric motor shaft configuration for 5/8″ hollow shaft engagement — distinct from the “D” shaft variants that use the same F33 NEMA 56C flange with a different crankshaft bore geometry. The E+F33 pairing on the XMV2G25E-F33M2I is a clean, purpose-matched electric-only configuration: no adapters, no dual-drive compromise, direct 5/8″ electric motor shaft engagement through the XM Series-specific NEMA 56C interface.

Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated AR North America technical support — the XMV2G25E-F33M2I arrives as a complete, factory-tested assembly. Pre-filled with AR break-in oil, equipped with a Gymatic unloader and active downstream chemical injector, and packaged with mounting bolts and fasteners, a vented dipstick, operator’s manual, and full parts schematic, this pump is ready to install from the moment it arrives. Protected by a 5-year US limited warranty through AR North America and built to be fully rebuilt rather than replaced, the XMV2G25E-F33M2I is a long-term investment in a commercial pump platform capable of a decade of productive service life.

Decoding the XMV2G25E-F33M2I Model Number

What Every Segment of This AR Pump Designation Tells You

Annovi Reverberi encodes all critical specification data — pump series, performance output, shaft type, flange interface, unloader family, and injector configuration — directly into the model number. Reading the XMV2G25E-F33M2I correctly before specifying confirms motor compatibility, shaft engagement type, and chemical feed configuration:

• XMV — Pump series: XM Series triplex plunger pump — AR’s commercial high-pressure platform with forged brass manifold construction, engineered for sustained 2,500 PSI commercial-duty operation
• 2G25 — Performance rating: 2.0 GPM flow rate at 2,500 PSI maximum operating pressure
• E — Shaft version: Electric motor shaft — native 5/8″ hollow shaft configuration for direct engagement with NEMA 56C electric motor output shafts. This is a purpose-matched electric-only shaft designation, distinct from the “D” shaft variants that use the F33 flange with a different crankshaft bore for dual-drive compatibility.
• F33 — Flange type: NEMA 56C close-coupling flange for XMA(SS) and XMV Series pumps — the XM Series-specific NEMA 56C interface (AR part AR1780910), distinct from the F8 flange used on XTV Series electric-drive pumps
• M2 — Unloader code: Gymatic (M2 = C2 = Gymatic per AR suffix designation) — Gymatic series internal bypass unloader, brass body, adjustable pressure regulation, factory-fitted
• I — Chemical injector: Included — a downstream soap and chemical injector is integrated into the Gymatic unloader assembly, enabling low-pressure detergent application without a separate injector fitting

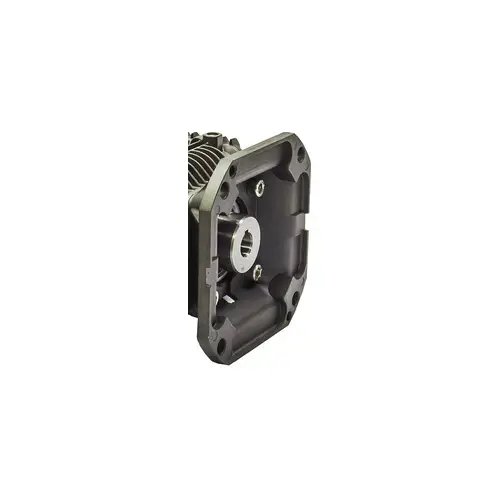

E Shaft vs D Shaft on the F33 NEMA 56C Flange — An Important XMV Distinction

Both the E and D shaft variants of the XMV Series can use the F33 NEMA 56C flange, but their crankshaft bore geometries serve different drive scenarios:

• XMV2G25E-F33M2I (E shaft) — native 5/8″ electric motor shaft configuration. Purpose-matched for NEMA 56C electric motor direct drive with no adaptation required. The correct selection for dedicated electric wash station installations.
• XMV D shaft + F33 variants — hollow crankshaft bore accommodating NEMA 56C electric motor shaft directly or a gas engine shaft via a 56C flange adapter. The correct selection when the same pump platform needs to serve both electric and gas-engine drive configurations.

For fixed electric wash stations where gas engine drive is never required, the E shaft XMV2G25E-F33M2I is the cleaner, purpose-matched specification.

Key Specifications

XMV2G25E-F33M2I Technical Details at a Glance

• Flow Rate: 2.0 GPM (gallons per minute)
• Maximum Pressure: 2,500 PSI
• Operating Speed: 3,400 RPM
• Pump Type: Triplex ceramic plunger pump — three-piston crankshaft-driven design for smooth, consistent, high-pressure output
• Shaft: E version — 5/8″ hollow electric motor shaft, native electric-only configuration
• Manifold Material: Forged brass — dense, pore-free construction for corrosion resistance and sustained 2,500 PSI cycle integrity
• Plungers: Solid ceramic — exceptional hardness, wear resistance, and chemical inertness across extended commercial operating hours
• Valves: Stainless steel — precise seating geometry, scale resistance, and reliable performance under continuous 2,500 PSI cycling
• Flange: F33 — NEMA 56C close-coupling flange for XMV Series ‘E’ version, 5/8″ I.D. shaft (AR part AR1780910)
• Unloader System: Gymatic series (M2 / C2 code) — brass-body internal bypass unloader, adjustable pressure regulation, rated above 2,500 PSI operating range within AR’s accepted 15% variance
• Chemical Injector: Included — downstream venturi injector integrated into Gymatic unloader assembly (“I” suffix confirmed)
• Warranty: 5-year limited warranty — US-based coverage through AR North America with domestic parts and service support

What’s Included in the Box

A Complete, Factory-Configured XMV2G25E-F33M2I Assembly Ready for Installation

Every XMV2G25E-F33M2I ships fully assembled and field-ready. No supplemental hardware sourcing, fluid filling, or pre-run preparation is required before installation:

• Factory-installed Gymatic unloader (M2) with active chemical injector — pre-mounted with integrated downstream injector ready for detergent supply line connection
• AR factory break-in oil — crankcase pre-filled to the correct operating level for first startup without modification
• Vented dipstick — enables fast, accurate crankcase oil level checks while maintaining proper crankcase pressure relief during operation
• Clear oil sight glass — at-a-glance oil level monitoring without removing the dipstick cap
• Mounting bolts and fasteners — hardware pre-selected and sized for F33 NEMA 56C face-mount installation on compatible electric motors
• Operator’s manual — complete installation, startup, operating, and maintenance procedures including oil change intervals, winterization protocol, and chemical injector care
• Parts schematic — exploded-view diagram with AR part numbers for every serviceable XMV2G25E-F33M2I component for field and shop reference
• Factory test certification — every XMV2G25E-F33M2I load-tested at 50%, 100%, and 150% of rated output before leaving the AR manufacturing facility

Why XM Series Construction at 2,500 PSI Electric Drive

The Commercial Platform Advantage for Continuous-Duty Electric Installations

The XMV2G25E-F33M2I brings XM Series commercial platform construction to the 2,500 PSI electric-drive application — a meaningful specification upgrade over standard XTV Series electric pumps at similar output ratings for operations where duty cycle intensity justifies the platform choice:

• Continuous-duty fixed wash stations — facilities running electric wash points across multiple daily shifts accumulate pump cycle counts that stress manifold seals, valve seats, and plunger surfaces more aggressively than standard commercial-duty XTV platforms are engineered to absorb over the same period. The XMV2G25E-F33M2I’s XM Series construction provides the additional structural margin these environments demand.
• High-utilization rental installations — rental units serving commercial accounts with high daily use cycles benefit from the XM Series rebuild interval advantage. Longer time between service events means higher fleet availability and lower maintenance cost per rental hour.
• 2,500 PSI near the upper limit of standard electric platforms — at the upper end of the pressure range where standard electric-drive XTV platforms operate, the XMV2G25E-F33M2I’s XM Series construction headroom reduces accelerated wear at seals, valves, and manifold that occurs when standard platforms sustain operation near their rated ceiling.

Integrated Chemical Injection — Complete Two-Mode Electric Wash Platform

Pre-Soak and Rinse From a Single Factory-Assembled XMV2G25E-F33M2I Assembly

The integrated downstream chemical injector on the XMV2G25E-F33M2I delivers full two-mode capability without additional hardware in a compact electric wash station footprint:

• Venturi-driven downstream injection — the injector built into the Gymatic unloader body draws detergent, degreaser, sanitizer, or pre-soak solution from a supply container when the operator switches to low-pressure application mode on the XMV2G25E-F33M2I. No chemical pump or electrical dosing supply is required.
• Two-mode workflow — low-pressure chemical pre-soak followed by full 2,500 PSI rinse at 2.0 GPM reduces total wash cycle time and chemical consumption compared to pressure-only washing on fleet vehicles, equipment surfaces, and facility areas where contamination benefits from chemical dwell time before rinsing.
• No separate injector hardware required — the XMV2G25E-F33M2I delivers the complete two-mode system factory-assembled. One assembly. Two operating modes. No additional plumbing fittings needed for basic detergent application.
• Injector maintenance — flush the XMV2G25E-F33M2I injector circuit with clean water after every detergent session to prevent chemical residue buildup in the venturi passage, preserving long-term function as detailed in the included operator’s manual.

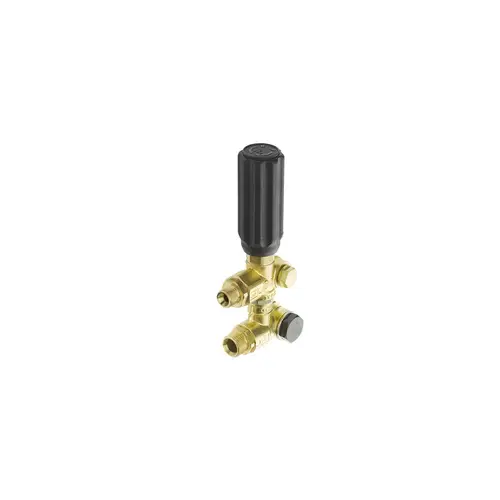

The Gymatic Unloader — Tamper-Resistant 2,500 PSI Control with Chemical Feed

Set It Once. Run the XMV2G25E-F33M2I All Day.

The Gymatic unloader (M2) on the XMV2G25E-F33M2I is rated above the pump’s 2,500 PSI operating pressure — within AR’s accepted 15% upside variance. Once pressure is set and locked, the Gymatic holds that setting reliably across every operator and every shift:

• Tamper-resistant once set — consistent pressure maintained across shifts, rental cycles, and crew rotations without re-adjustment or drift
• Internal bypass operation — trigger-off bypass smoothly redirects flow, preventing deadhead pressure spikes that accelerate seal and valve wear during idle intervals in continuous-run installations
• Motor load reduction in bypass — reduced back-pressure in trigger-off bypass mode lowers motor amperage draw and heat accumulation, protecting motor windings in continuous-use electric wash station environments
• Integrated chemical injector — active downstream venturi injector enables two-mode operation without additional hardware on the XMV2G25E-F33M2I
• Brass body construction — resists corrosion from cleaning chemicals, sanitizers, chlorinated supply water, and sustained indoor or outdoor exposure

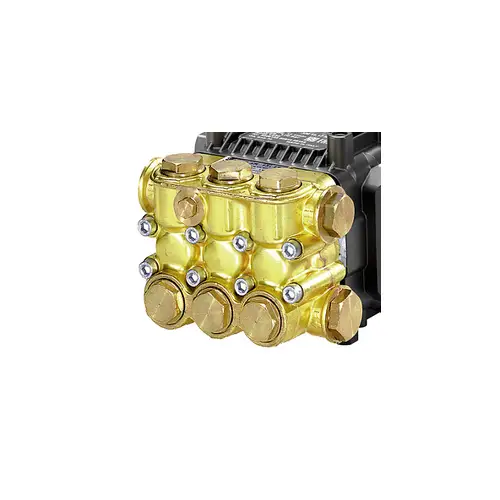

XM Series Material Construction — Solid Ceramic, Forged Brass, Stainless Steel

Every XMV2G25E-F33M2I Wear Component Individually Rebuildable

• Solid ceramic plungers — machined from solid ceramic throughout, not ceramic-coated. The hardness and dimensional stability of solid ceramic far exceed surface-coated alternatives in the XMV2G25E-F33M2I’s 2,500 PSI continuous electric-drive duty cycle. When plungers approach service limits they are replaced individually — all other XMV2G25E-F33M2I components remain in productive service.
• Forged brass manifold provides a dense, pore-free pressure vessel that withstands cyclic mechanical stress, chemical exposure from detergent solutions drawn through the downstream injector, and thermal cycling of continuous electric motor-driven wash station operation without the structural degradation that limits cast aluminum manifolds under comparable conditions.
• Stainless steel valves maintain precise seating geometry through hundreds of thousands of 2,500 PSI pressure cycles, resisting calcium scale accumulation and pitting that cause pressure loss in lesser materials.
• Triplex three-plunger design produces smooth, overlapping pressure pulses that reduce pulsation-induced fatigue stress on hoses, spray guns, and fittings throughout the wash station system connected to the XMV2G25E-F33M2I.

Typical Applications

Where the XMV2G25E-F33M2I Delivers Best Results

• Continuous-duty commercial electric wash stations — fixed wash points in fleet yards, manufacturing facilities, and commercial properties running multiple shifts where the XMV2G25E-F33M2I’s XM Series construction reduces service frequency and maximizes uptime
• Food and beverage facility sanitation — where electric operation eliminates exhaust, XM Series chemical-resistant construction handles food-grade sanitizers, and the integrated injector delivers on-demand chemical application through the XMV2G25E-F33M2I without additional hardware
• Indoor commercial wash bays — electric operation eliminates exhaust and noise; compact XMV2G25E-F33M2I footprint enables wall-mount frames and space-constrained indoor installations
• High-utilization rental installations — rental units in commercial accounts where the XMV2G25E-F33M2I’s XM Series rebuild interval advantage reduces maintenance cost per rental hour
• Fleet and vehicle washing facilities — fixed electric wash bays for cars, trucks, vans, and service equipment where 2,500 PSI and integrated detergent pre-soak provide efficient two-mode wash cycles
• Light industrial facility maintenance — production floor equipment, machinery surfaces, and facility washdowns where sustained 2,500 PSI output and chemical injection capability are both required in an electrically driven system
• Custom OEM electric wash skid builders — system integrators specifying XM Series commercial construction with E shaft native electric configuration for dedicated electric-drive wash equipment

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

Domestic Support for the XMV2G25E-F33M2I — Built to Last as Long as the Pump

The XMV2G25E-F33M2I is protected by Annovi Reverberi’s 5-year limited warranty through AR North America’s US-based warranty and service network. Every internal wear component of the XMV2G25E-F33M2I — solid ceramic plungers, brass manifold seals and o-rings, stainless valve seats and springs, Gymatic unloader service parts, and crankcase bearings — is stocked domestically through AR’s authorized distribution channels.

With consistent maintenance — break-in oil change at 50 hours, scheduled oil changes every 500 hours or 3–5 months, regular valve and seal inspection, chemical injector circuit flushing with clean water after every detergent session, and proper winterization using RV-grade environmentally safe antifreeze — the XMV2G25E-F33M2I is engineered for 10 or more years of productive commercial service life. AR North America’s domestic parts depth ensures rebuild kits, plunger sets, and Gymatic unloader service components for the XMV2G25E-F33M2I are typically available same-week, keeping electric wash operations running rather than waiting on international shipping timelines.

Contractors, rental fleet operators, facility managers, resellers, and volume buyers are invited to contact wholesale@wshpwr.com for wholesale and special pricing on the XMV2G25E-F33M2I and the full Annovi Reverberi pump and unloader assembly line. WSHPWR stocks more than 1,900 AR North America products — one of the most complete AR inventories available through any US web store.

XM Series Commercial Construction. Native Electric Drive. Integrated Chemical Feed. 2,500 PSI.

Italian Engineering. NEMA 56C E Shaft Precision. US Warranty Coverage.

For facility managers, fleet operators, food processing operations, and OEM system builders who need the durability and structural margin of AR’s XM Series commercial platform in a native E shaft electric motor-driven configuration with integrated chemical injection capability at 2,500 PSI, the XMV2G25E-F33M2I delivers a factory-tested, fully documented, and completely rebuildable assembly from one of the global pressure pump industry’s most trusted manufacturers. Two thousand five hundred PSI. Native electric drive. NEMA 56C E shaft. Solid ceramic construction. Gymatic bypass with integrated injector. Five years of US warranty. A decade of service life.

Volume buyers, resellers, and rental fleet operators can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing for quantity purchases across the complete Annovi Reverberi lineup — including pumps, unloader assemblies, and service parts.
