SXMV35G40D24VRG 3.5 GPM 4000 PSI | 3400 RPM GHA-coated triplex pump

About the Annovi Reverberi SXMV35G40D24VRG Triplex Ceramic Plunger Pump

High-Pressure Industrial Cleaning with GHA Protective Coating

The Annovi Reverberi SXMV35G40D24VRG is a heavy-duty triplex ceramic plunger pump engineered for
industrial cleaning operations, municipal service fleets, equipment washdown, and contractor-grade pressure washing.
Delivering 3.5 GPM at 4,000 PSI and operating at 3,400 RPM, this pump provides the
strength, durability, and continuous-use capability required for high-demand environments.

A defining feature of this model is its GHA (Graphite Hydrophobic Armor) protective coating, a
specialized treatment that enhances resistance to corrosion, chemical attack, abrasion, and mineral-rich water. This
coating dramatically extends service life in environments where detergents, sanitation chemicals, or harsh wash
conditions are present. With a 24mm solid keyed shaft and precision-engineered triplex design, the
SXMV35G40D24VRG offers smooth flow, stable pressure, and long-term reliability.

Key Specifications

Technical Details

• Flow Rate: 3.5 GPM
• Pressure Rating: 4,000 PSI
• Operating Speed: 3,400 RPM
• Shaft Type: 24mm solid keyed shaft
• Pump Type: Triplex ceramic plunger pump
• Protective Coating: GHA (Graphite Hydrophobic Armor)
• Construction: Brass manifold, ceramic plungers, stainless steel valves
• Warranty: 5-year nationwide coverage

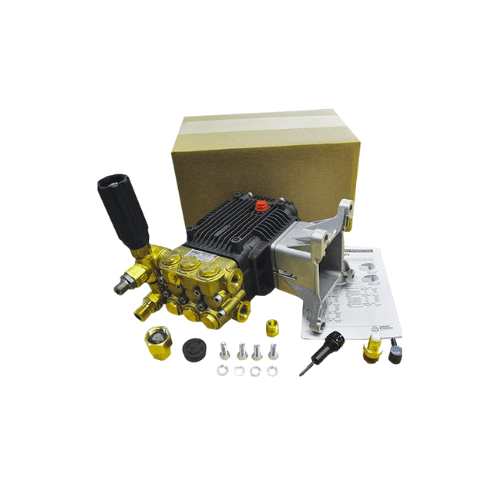

What’s Included

Factory-Prepared Components

• Break-in oil pre-filled for immediate startup
• Vented dipstick for proper crankcase ventilation and easy maintenance
• Oil sight glass for quick lubrication checks
• Pre-installed stainless steel valves and seal set
• Mounting bolts and hardware
• Operator’s manual with setup guidelines
• Illustrated parts schematic for servicing and repairs
• Shock-resistant packaging for safe shipment

How the Pump Works

Triplex Plunger Operation with Advanced Protection

This pump uses a three-plunger triplex system to deliver low-pulsation, high-pressure water flow.
Ceramic plungers reduce friction, resist heat, and extend seal life, while the stainless steel valves ensure precise
control of intake and discharge cycles for consistent performance under heavy loads.

The GHA protective coating enhances durability by shielding key components from chemical exposure,
hard-water scaling, and abrasive wear. This makes the SXMV35G40D24VRG especially well suited for sanitation
environments, detergent-based cleaning, and mineral-rich water sources. Combined with a 24mm solid shaft,
the pump maintains stable power transfer and long service life in commercial and industrial wash systems.

Benefits of the SXMV35G40D24VRG

Performance, Durability, and Reliability

• 4,000 PSI at 3.5 GPM: delivers strong cleaning power for demanding jobs.
• GHA protective coating: exceptional resistance to corrosion, chemicals, and abrasion.
• Ceramic plungers: reduce heat and extend the life of seals and packings.
• Stainless steel valves: ensure precise water regulation and long-term durability.
• Triplex design: reduces pulsation for smoother operation and stable output.
• 24mm keyed shaft: compatible with a wide range of direct-drive and belt-drive systems.
• Easy servicing: oil sight glass and dipstick simplify lubrication checks.
• Factory-tested: verified for proper performance before shipping.
• 5-year warranty: backed by AR’s national support network.

Typical Applications

Where the Pump Excels

• Construction and heavy equipment washing
• Fleet and municipal vehicle maintenance
• Agricultural equipment and sanitation cleaning
• Industrial wash bays and manufacturing facilities
• City service rigs and public works vehicles
• Rental equipment cleaning and contractor systems

Why Choose Annovi Reverberi?

Trusted Engineering, Proven Durability

Annovi Reverberi is recognized globally for building high-performance pumps designed for professional cleaning
industries. Known for durability, precision, and innovation, AR pumps are used by contractors, municipalities,
equipment rental companies, and industrial operators worldwide. The SXMV35G40D24VRG continues this legacy with its
rugged construction, high-pressure output, and industry-leading GHA coating technology.

Final Thoughts

High-Pressure Power with Advanced Protection

The SXMV35G40D24VRG is engineered for professionals who require maximum pressure, long service life,
and extreme corrosion resistance. With its 3.5 GPM output, 4,000 PSI operating pressure,
GHA protective coating, and durable ceramic-plunger construction, this pump excels in harsh chemical,
industrial, and outdoor environments.

Pre-filled with oil, factory-tested, and backed by a 5-year warranty, the SXMV35G40D24VRG is an
industrial-grade solution built for continuous-use cleaning applications where reliability is critical.
