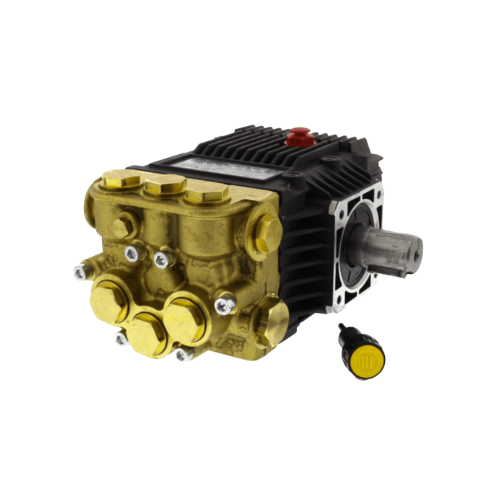

SXMV4G35N 4.0 GPM 3500 PSI | 24mm shaft 3400 RPM pump

Overview

The Annovi Reverberi SXMV4G35N is a commercial-grade triplex plunger pump engineered for
continuous-duty, high-pressure cleaning applications. Delivering 4.0 GPM at 3,500 PSI while
running at 3,400 RPM, this pump provides the power and efficiency needed for industrial and
contractor-level cleaning jobs. With its 24 mm solid keyed shaft, it mounts directly to
compatible gasoline or diesel engines, making it a top choice for custom-built pressure washer systems, fleet
wash rigs, and OEM replacements.

Constructed with industrial-strength ceramic plungers, a heavy-duty
forged brass manifold, and stainless steel valves, the SXMV4G35N is designed
to endure harsh environments, extended use, and aggressive cleaning demands. Its triplex plunger design ensures
smooth water flow, reduced vibration, and extended service life for both the pump and the engine it’s connected to.
Every unit undergoes rigorous factory testing at half-load, full-load, and 150% rated pressure, guaranteeing
dependable performance right out of the box.

Key Specifications

• Model: SXMV4G35N
• Flow Rate: 4.0 GPM (gallons per minute)
• Maximum Pressure: 3,500 PSI
• Operating Speed: 3,400 RPM
• Pump Type: Triplex plunger, continuous-duty design
• Shaft Size: 24 mm solid keyed shaft for direct-drive coupling
• Manifold Material: Precision-machined forged brass for strength and corrosion resistance
• Plungers: Solid ceramic for maximum wear protection and longer seal life
• Valves: Stainless steel for precise, long-lasting operation
• Warranty: 5-year limited manufacturer’s warranty

What’s Included with SXMV4G35N

• Pre-filled break-in oil in the crankcase for optimal startup performance
• Vented dipstick for fast and accurate oil level checks
• Oil sight glass for quick visual reference of pump lubrication
• Mounting bolts for secure engine or frame installation
• Operator’s manual and parts schematic with full installation, use, and maintenance details
• Each pump is fully factory-tested for pressure integrity and flow stability before shipping

How the SXMV4G35N Works

• Uses a triplex plunger system to deliver steady water flow and consistent pressure output,
  reducing pulsation and improving cleaning efficiency.
• Ceramic plungers minimize heat buildup, reduce friction, and extend seal and packing life even
  under heavy-duty use.
• The forged brass manifold and stainless steel valves maintain smooth operation
  in demanding environments with high pressure and frequent cycling.
• The 24 mm solid keyed shaft allows direct-drive coupling to compatible engines, ensuring secure
  installation and efficient power transfer at 3,400 RPM.
• Sight glass and dipstick make oil checks simple, helping operators keep the
  pump properly lubricated with minimal downtime.

Premium Features & Benefits of SXMV4G35N

• Commercial cleaning power: 4.0 GPM at 3,500 PSI for professional-grade results.
• Continuous-duty design: Built for contractors, fleet operators, and industrial facilities.
• Ceramic plunger technology: Extends seal life and reduces maintenance costs.
• Brass manifold construction: Provides durability and corrosion resistance in harsh environments.
• Stainless steel valves: Deliver precise operation and long service reliability.
• User-friendly maintenance: Dipstick and sight glass make routine oil checks fast and easy.
• Factory pre-tested: Verified at multiple load points for performance assurance.

Typical Applications

• Fleet vehicle maintenance: Quickly wash trucks, trailers, and buses.
• Heavy equipment cleaning: Ideal for excavators, tractors, bulldozers, and loaders.
• Construction site washdown: Removes mud, cement residue, and jobsite debris.
• Municipal & facility cleaning: Perfect for industrial wash bays, maintenance vehicles, and public works equipment.
• Agricultural use: Wash tractors, livestock enclosures, sprayers, and farm machinery.
• Contract cleaning services: Reliable pump for commercial cleaning contractors handling tough daily jobs.

Warranty & Support

• 5-year limited warranty provides long-term protection and peace of mind.
• Supported by Annovi Reverberi’s nationwide service and parts network, making it easy to maintain
  and repair the pump over its service life.
• Factory-backed testing and quality control help ensure consistent performance in the field.

Why Choose the Annovi Reverberi SXMV4G35N?

• Built for professionals who demand maximum power, reliable performance, and long service life
  from their pressure washer equipment.
• Combines a 3,500 PSI rating, 4.0 GPM flow, ceramic plunger system, forged
  brass manifold, and stainless steel valves to handle the toughest cleaning environments.
• Ideal for contractors, fleet managers, and facility operators who need dependable, continuous-duty operation
  with straightforward maintenance.

SXMV4G35N Summary

• The Annovi Reverberi SXMV4G35N triplex plunger pump delivers
  4.0 GPM at 3,500 PSI and 3,400 RPM with a 24 mm solid keyed shaft, making it
  a powerful choice for high-pressure commercial and industrial cleaning.
• Engineered with ceramic plungers, stainless steel valves, a
  brass manifold, and user-friendly maintenance features, it is ideal for fleet washing,
  industrial cleaning, agricultural wash-down, and contractor-grade applications.
• Backed by a 5-year warranty and supported by nationwide service centers, the SXMV4G35N offers
  the power, efficiency, and durability needed for high-pressure cleaning in the most demanding environments.
