XMV3G30D-F25C2 3.0 GPM 3000 PSI Pump | F25C2 Mount

XMV3G30D-F25C2 by Annovi Reverberi — XMV Series Triplex Plunger Pump with Gymatic C2 Unloader | 3.0 GPM | 3,000 PSI | Forged Brass Manifold | 3/4″ Shaft | SAE J609a F25 Gas and Diesel Engine Drive | 3,400 RPM

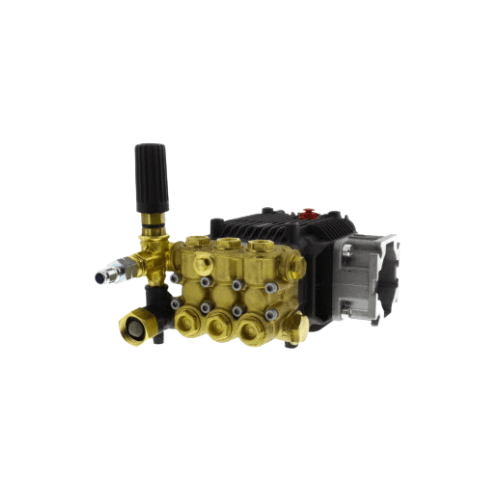

The XMV3G30D-F25C2 by Annovi Reverberi is a heavy-duty XMV Series triplex ceramic plunger pump engineered for gas and diesel engine-driven pressure washing systems requiring 3.0 GPM at 3,000 PSI with factory-matched Gymatic C2 pressure regulation. Rated at 3.0 GPM and 3,000 PSI at 3,400 RPM, the XMV3G30D-F25C2 delivers 9,000 cleaning units — combining 3.0 GPM output with 3,000 PSI cleaning force for contractor pressure wash systems, fleet maintenance, municipal and utility vehicles, construction equipment, agricultural cleaning, and industrial facility maintenance — through a forged brass manifold, solid ceramic plungers, stainless steel valves, and an F25 SAE J609a flange with 3/4″ shaft for direct coupling to compatible gasoline or diesel engines. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the XMV3G30D-F25C2 arrives factory-configured and factory-tested, ready to deliver from the first startup.

The XMV3G30D-F25C2 carries the factory-installed Gymatic C2 adjustable unloader — delivering smooth, precise pressure regulation and refined bypass operation that reduces stress on the pump, prevents damaging pressure spikes at trigger release, and extends long-term service life. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated technical support — this pump arrives pre-filled with factory break-in oil, factory-tested, and ready for installation. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, the XMV3G30D-F25C2 is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The XMV3G30D-F25C2 Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every XMV3G30D-F25C2 ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched C2 for 3,000 PSI — the Gymatic C2 adjustable unloader is factory-calibrated for this pump’s 3.0 GPM / 3,000 PSI duty point. Pressure regulation and bypass characteristics are factory-set as a complete system.
• Factory-approved configuration — the complete assembly is Annovi Reverberi’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every XMV3G30D-F25C2 exits the manufacturing facility with the C2 assembly mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader specification — the most common source of pump system returns — before the pump leaves the box.
• Stress-free installation — mount to the engine via the F25 SAE J609a flange, connect system hoses, add fuel, and start. The XMV3G30D-F25C2 arrives engineered, assembled, and ready.

Decoding the XMV3G30D-F25C2 Model Number

What Every Segment of This Annovi Reverberi Pump Designation Tells You

• XMV — Pump series: XMV Series heavy-duty triplex plunger pump — Annovi Reverberi’s commercial gas and diesel engine platform
• 3G — Pump series identifier for this XMV configuration
• 30 — Maximum pressure: 3,000 PSI — 3.0 × 3,000 = 9,000 cleaning units
• D — Shaft version: Direct Drive — 3,400 RPM operating speed for direct gas or diesel engine coupling per Annovi Reverberi model designation convention

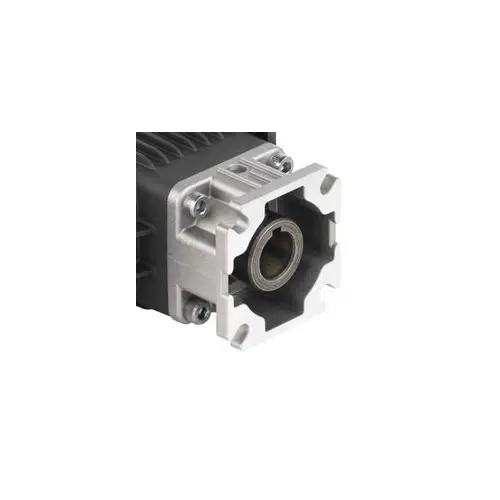

• F25 — Flange type: SAE J609a flange — XM Series ‘D’ version, 3/4″ cylindrical shaft for direct coupling to compatible horizontal shaft gasoline and diesel engines (Annovi Reverberi part AR1780580)
• C2 — Unloader family: Gymatic 3/B adjustable unloader — smooth pressure regulation and refined bypass operation; factory-installed and factory-calibrated for 3.0 GPM / 3,000 PSI
• No trailing I suffix — no factory-installed downstream chemical injector; straight 3,000 PSI water output

Key Specifications

XMV3G30D-F25C2 Technical Details at a Glance

• Flow Rate: 3.0 GPM (gallons per minute)
• Maximum Pressure: 3,000 PSI
• Cleaning Units: 9,000 (GPM × PSI)
• Operating Speed: 3,400 RPM
• Pump Type: XMV Series triplex ceramic plunger pump — smooth, low-pulsation positive displacement output
• Flange: F25 — SAE J609a, 3/4″ cylindrical shaft, gas and diesel engine compatible (Annovi Reverberi part AR1780580)
• Manifold Material: Forged brass — high-strength corrosion resistance for continuous-duty operation in harsh environments
• Plungers: Solid ceramic — reduced friction and heat, extended seal life
• Valves: Stainless steel — durability and chemical resistance under high-pressure continuous cycling
• Serviceability: Oil sight glass and vented dipstick for simplified routine maintenance
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Unloader System: Gymatic C2 — factory-installed adjustable unloader with smooth bypass; banjo bolts and sealing O-rings included
• Chemical Injector: Not included — straight 3,000 PSI water output
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

What’s Included in the Box

A Complete, Factory-Configured XMV3G30D-F25C2 Assembly Ready for Installation

• Factory-matched Gymatic C2 adjustable unloader — installed and calibrated for the 3.0 GPM / 3,000 PSI operating point; smooth pressure regulation and refined bypass
• Banjo bolts and sealing O-rings — standard C2 family hardware for secure, leak-resistant unloader connections
• Factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting bolts — for quick, secure F25 SAE J609a flange installation on compatible gas and diesel engines
• Operator’s manual — complete installation, startup, operating, and maintenance procedures including oil change intervals and winterization protocol
• Parts schematic — exploded-view diagram with Annovi Reverberi part numbers for every serviceable component

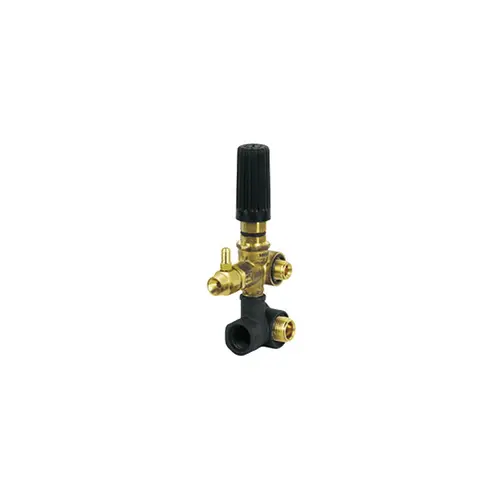

Gymatic C2 Unloader — Smooth Pressure Regulation at 3,000 PSI

Factory-Calibrated. Adjustable. Refined Bypass. Gas and Diesel Engine Ready.

• Smooth, precise pressure regulation — the Gymatic C2 on the XMV3G30D-F25C2 is engineered for smooth, consistent pressure output at 3,000 PSI with manual adjustment available for fine-tuning to match nozzle size, surface type, and cleaning requirements
• Refined bypass operation — the C2 unloader diverts flow smoothly when the trigger gun is released on the XMV3G30D-F25C2, reducing mechanical stress on the pump and preventing damaging pressure spikes that shorten pump service life
• Bypass protection at 3,400 RPM — smooth bypass at continuous gas or diesel engine speed protects ceramic plungers, manifold seals, and crankcase components during the frequent start-stop cycles of commercial and industrial cleaning operations
• Straight 3,000 PSI water output — no factory-installed injector on the XMV3G30D-F25C2. Chemical delivery managed externally when detergent application is required, providing a clean system integration point for operators who use dedicated chemical delivery equipment.
• Banjo bolt connections — standard C2 family hardware ensures secure, leak-resistant unloader installation with simplified field service

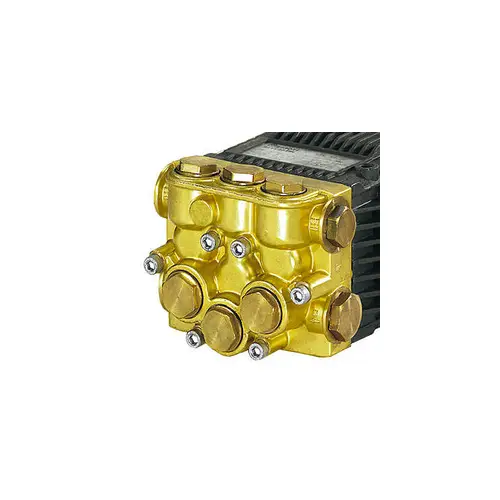

Forged Brass Manifold — Commercial-Grade Construction at 3,000 PSI

Forged Brass. Ceramic Plungers. Stainless Valves. Continuous-Duty Ready.

• Forged brass manifold — the XMV3G30D-F25C2’s forged brass construction delivers superior structural integrity and corrosion resistance compared to standard cast alternatives, engineered for sustained 3,000 PSI operation across contractor, municipal, industrial, and agricultural cleaning environments with varied water quality and detergent chemistry
• Ceramic plungers for reduced heat and friction — solid ceramic plungers on the XMV3G30D-F25C2 minimize heat buildup and friction under continuous 3,400 RPM operation, extending seal life and reducing maintenance frequency in demanding commercial cleaning applications
• Stainless steel valves for chemical resistance — engineered for dependable high-pressure sealing and long-term resistance to the chemical environments typical of contractor, agricultural, and industrial pressure washing applications on the XMV3G30D-F25C2

Typical Applications

Where the XMV3G30D-F25C2 Delivers Best Results

• Contractor pressure wash systems — the XMV3G30D-F25C2’s 3,000 PSI output, forged brass construction, and F25 direct-drive gas and diesel engine compatibility make it a practical specification for mobile contractor rigs and job-site cleaning systems
• Fleet maintenance — cleaning trucks, trailers, buses, and service vehicles where 3.0 GPM output and 3,000 PSI cleaning force handle fleet vehicle contamination efficiently on gas or diesel engine-powered portable systems
• Municipal and utility vehicles — sanitation trucks, utility vehicles, and public works fleets where the XMV3G30D-F25C2’s commercial-duty construction and refined C2 bypass deliver reliable scheduled cleaning performance
• Construction equipment cleaning — excavators, bulldozers, loaders, and heavy machinery where 9,000 cleaning unit output handles the heavy contamination typical of active construction environments
• Agricultural cleaning — tractors, harvesters, barns, and animal enclosures where the XMV3G30D-F25C2’s gas and diesel engine compatibility and forged brass durability support demanding agricultural washing programs
• Industrial facility maintenance — plants, warehouses, and commercial buildings where the XMV3G30D-F25C2’s continuous-duty design and straight water output integrate cleanly with existing industrial chemical delivery systems

For operators who prefer a fully configured engine-driven system rather than a bare pump assembly, WSHPWR also carries complete gas and diesel engine pump packages ready to mount on a frame or trailer.

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

XMV Series Commercial Performance Backed by Domestic Support

The XMV3G30D-F25C2 is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network. Every internal wear component — solid ceramic plungers, forged brass manifold seals and o-rings, stainless valve seats and springs, Gymatic C2 unloader service parts, piston packing kits, and crankcase bearings — is stocked domestically through authorized distribution channels. Contractors, fleet operators, municipal maintenance teams, facility managers, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the XMV3G30D-F25C2 and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

9,000 Cleaning Units. 3,000 PSI. 3.0 GPM. F25 SAE J609a. Gymatic C2. Forged Brass. Gas and Diesel Engine.

Italian Engineering. Direct Engine Drive. Factory-Approved Gymatic C2 Assembly. US Warranty Coverage.

For contractors, fleet operators, municipal maintenance teams, agricultural operations, and industrial facility managers who need 3.0 GPM at 3,000 PSI on a gas or diesel engine platform — with F25 SAE J609a direct-drive flange for 3/4″ shaft engine coupling, factory-matched Gymatic C2 adjustable unloader for smooth pressure regulation and refined bypass protection, forged brass manifold construction for continuous-duty commercial service, and a completely rebuildable platform backed by a 5-year US warranty — the XMV3G30D-F25C2 delivers a purpose-engineered commercial cleaning solution from one of the global pressure pump industry’s most trusted manufacturers. Nine thousand cleaning units. Direct gas and diesel engine drive. Factory-approved Gymatic C2 assembly. Five years of US warranty. A decade of service life.

Volume buyers can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing for quantity purchases across the complete Annovi Reverberi lineup.
