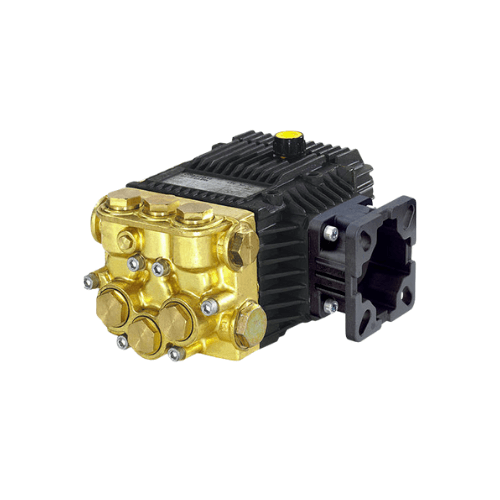

XMV35G25D 3.5 GPM 2500 PSI | 3400 RPM high-output pump

Overview

The Annovi Reverberi XMV35G25D is a commercial-grade triplex ceramic plunger pump engineered for high-output cleaning applications. Delivering 3.5 GPM at 2,500 PSI and 3,400 RPM, this pump is designed to meet the demands of contractors, fleet operators, and industrial facilities that require both efficiency and long-lasting reliability.

Built for direct drive mounting to standard 3/4-inch gas engine shafts, the XMV35G25D provides a compact and efficient solution for pressure washer builds and replacements. Its robust design, paired with precision-machined brass components and solid ceramic plungers, ensures smooth performance even under continuous-duty cycles.

Key Specifications

Technical Details

• Flow Rate: 3.5 GPM
• Maximum Pressure: 2,500 PSI
• Operating Speed: 3,400 RPM
• Drive Type: Direct drive, mounts to 3/4-inch gas engine shaft
• Pump Type: Triplex ceramic plunger pump
• Warranty: 5-year limited manufacturer warranty

What’s Included with XMV35G25D

Factory-Supplied Components

Every XMV35G25D pump comes pre-configured for quick setup and long-term use:

• Pre-filled with premium break-in oil for immediate operation
• Vented dipstick for easy oil checks
• Oil sight glass for monitoring crankcase levels
• Mounting bolts for secure installation
• Operator’s manual & full parts schematic for maintenance and servicing
• Factory test certification verifying flow, pressure, and mechanical integrity

How It Works

Triplex Plunger Operation

The XMV35G25D uses a triplex plunger design, which employs three precision ceramic plungers to provide consistent flow and steady operating pressure. This design minimizes pulsation and vibration, delivering smoother water output that enhances cleaning performance while extending component life.

At 3,400 RPM, the pump is tailored for direct-drive applications, coupling seamlessly to 3/4-inch horizontal gas engine shafts. The combination of high RPM and triplex engineering results in powerful, high-volume water delivery—ideal for contractors and professionals who need results fast.

Advanced Features

Design & Reliability

• Triplex Ceramic Plungers: Provide maximum durability and reduce wear.
• Brass Manifold: Precision-machined for superior corrosion resistance.
• Stainless Steel Check Valves: Handle both water and chemicals with precision.
• Direct Drive Mounting: Fits standard 3/4-inch gas engine shafts without modification.
• Factory-Tested Performance: Each pump is tested at half load, full load, and 150% rated load.
• User-Friendly Maintenance: Features include an oil sight glass and vented dipstick.
• Pre-Oiled & Ready to Use: Ships with break-in oil installed for convenience.
• 5-Year Warranty: Backed by nationwide service and support.

Applications

Professional & Industrial Use

The XMV35G25D is suited for heavy-duty tasks across multiple industries, including:

• Mobile Wash Rigs: Ideal for portable contractor cleaning setups.
• Fleet Vehicle Cleaning: Keeps trucks, buses, and service vehicles spotless.
• Construction Equipment Washdown: Removes dirt, grease, and debris from machinery.
• Agricultural Machinery Cleaning: Perfect for tractors, harvesters, and farm equipment.
• Industrial Service Stations: Built for long-term operation in high-traffic environments.
• Contractor-Grade Pressure Washers: Provides reliable performance for commercial cleaning crews.

Warranty & Support

Long-Term Protection

The XMV35G25D is backed by a 5-year limited warranty, offering confidence in durability and performance. In addition, Annovi Reverberi provides access to a nationwide service center network, ensuring parts availability, technical assistance, and long-term support for your investment.

Why Choose the XMV35G25D?

High-Output Commercial Performance

• High-Output Power: 3.5 GPM at 2,500 PSI delivers professional cleaning performance.
• Direct Drive Efficiency: Mounts directly to gas engines for compact installation.
• Durable Engineering: Brass manifold, ceramic plungers, and stainless valves extend pump life.
• Fully Tested & Ready: Every unit undergoes rigorous performance verification before shipping.
• Peace of Mind: Covered by a 5-year warranty with full service support.

When you need a commercial-grade pressure washer pump that balances power, efficiency, and reliability, the Annovi Reverberi XMV35G25D is the proven choice.

XMV35G25D Summary

Upgrade your system with the Annovi Reverberi XMV35G25D Triplex Plunger Pump, delivering 3.5 GPM at 2,500 PSI with 3,400 RPM direct drive power. Built with a brass manifold, ceramic plungers, and stainless steel valves, this pump is designed for contractors, fleet operators, and industrial cleaning applications. Pre-tested and pre-oiled for reliability, it includes an oil sight glass, vented dipstick, mounting hardware, and documentation. Backed by a 5-year warranty and nationwide service, the XMV35G25D is the professional solution for heavy-duty pressure washing needs.
