XMASS0.5G30EF33 | 0.5 GPM 3000 PSI Pump 1750 RPM SS Head Duty

XMASS0.5G30EF33 — Ultra-Low Flow Stainless Pump, 0.5 GPM, 3,000 PSI, 1,750 RPM (56C Direct-Drive)

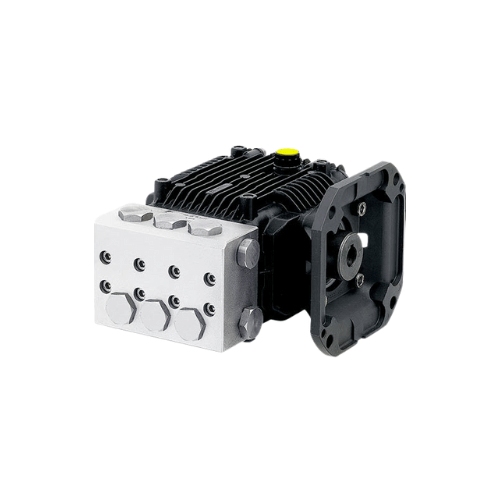

The XMASS0.5G30EF33 is a precision stainless-steel triplex plunger pump engineered for specialty cleaning and process systems that demand extremely low flow with maximum pressure. Delivering a tightly controlled 0.5 GPM at 3,000 PSI at a standard 1,750 RPM, it excels at fine-detail rinsing, metered chemical application, and hygienic environments where accuracy, cleanliness, and repeatability are critical. A compact crankcase and balanced wet end produce smooth output with reduced pulsation, helping operators maintain consistent pressure at tiny nozzle sizes without overspray or waste.

Built for chemical resistance and long service life, the pump features an AISI 316 stainless-steel manifold that resists corrosion and pitting in caustic or high-moisture areas. Viton® seals provide durable compatibility with aggressive detergents, solvents, and elevated temperatures, while ceramic plungers withstand abrasion and thermal cycling. Integration is simple using the F-33 (NEMA 56C) face and 5/8″ hollow shaft for direct motor coupling. Service checks are fast and visual with an oil sight glass and vented dipstick. Each pump ships pre-filled with break-in oil, is factory-tested, and backed by a 5-year commercial warranty.

Where Ultra-Low Flow Adds Value

• Electronics & optics: Fine-parts cleaning with low-volume, high-precision delivery.
• Biotech & laboratory: Instrument rinse cycles and sanitation with controlled exposure time.
• Cleanroom & semiconductor: Ultra-clean, metered rinse applications.
• Precision fuel & chemical systems: Dosing, flushing, and proof-pressure steps.
• Food & pharmaceutical: Small-area washdown and post-CIP touch-up cleaning.*
• Specialty OEM rigs: Compact carts, enclosures, and precision cleaning systems.

*Confirm detergent/sanitizer compatibility, concentration, and temperature limits for stainless and Viton components.

Key Features & Specifications of XMASS0.5G30EF33

• Output: 0.5 GPM at 3,000 PSI — ultra-low flow with maximum stability
• Speed: 1,750 RPM — optimized for direct-drive electric motors

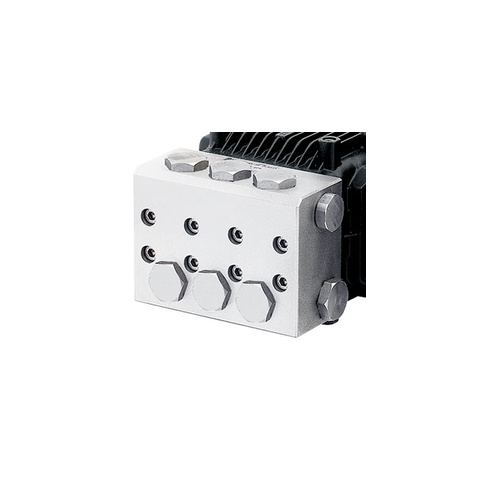

• Construction: AISI 316 stainless-steel manifold for superior corrosion resistance
• Seals: Viton® seals for aggressive detergents, solvents, and elevated temperatures

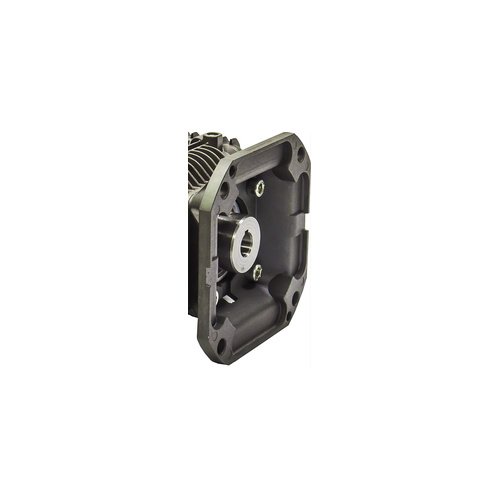

• Drive: F-33 / NEMA 56C face with 5/8″ hollow shaft for direct coupling
• Durability: Ceramic plungers and stainless valves for long wear life
• Serviceability: Oil sight glass and vented dipstick for quick maintenance checks
• Assurance: Factory-tested; ships pre-oiled; 5-year commercial warranty

Integration & Maintenance Best Practices for XMASS0.5G30EF33

• Protect the inlet: Oversized filtration and short, unrestricted suction runs minimize cavitation.
• Nozzle/orifice sizing: Match nozzle to PSI/GPM; add a gauge at the tool for verification.
• Unloader & bypass: Avoid long bypass cycles—low water volume heats rapidly; use thermal protection when needed.
• Pulsation control: Add a dampener when feeding instruments, dosing lines, or precision rinse systems.
• Chemical handling: Rinse the pump with clean water after chemical service to extend seal life.
• Oil maintenance: Monitor via sight glass; change oil on schedule; winterize during freezing conditions.

Summary

XMASS0.5G30EF33 stainless-steel pump — 0.5 GPM, 3,000 PSI, 1,750 RPM, 56C (F-33) direct-drive, Viton seals, and an AISI 316 manifold — delivers high-pressure accuracy and ultra-low-flow stability for electronics, biotech, laboratory, semiconductor, fuel/chemical, food/pharma, and specialty OEM applications. Factory-tested, pre-oiled, and supported by a 5-year commercial warranty.
