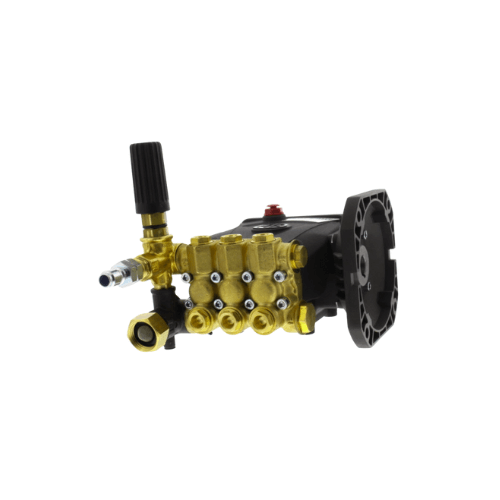

RCA2G22E-F8M2I | Triplex Pump, 2.0 GPM 2200 PSI, F8 56C, M2 Unloader

RCA2G22E-F8M2I by Annovi Reverberi — Electric Triplex Plunger Pump with Mini-Matic M2I Unloader and Chemical Injector | 2.0 GPM | 2,200 PSI | Brass Manifold | 5/8″ Hollow Shaft | NEMA 56C F8 Electric Motor Mount | 1,750 RPM

The RCA2G22E-F8M2I by Annovi Reverberi is a professional-grade electric triplex ceramic plunger pump engineered for NEMA 56C electric motor-driven pressure washing systems requiring 2.0 GPM at 2,200 PSI with factory-integrated downstream chemical injection capability. Rated at 2.0 GPM and 2,200 PSI at 1,750 RPM, the RCA2G22E-F8M2I delivers 4,400 cleaning units — combining 2.0 GPM focused output with 2,200 PSI cleaning force for residential and commercial cleaning, vehicle wash bays, fleet touch-up, industrial machinery washdown, and OEM replacement installations — through a precision-machined brass manifold, solid ceramic plungers, stainless steel valves, heavy-duty bearings, and an F8 NEMA 56C flange with 5/8″ hollow shaft for direct coupling to compatible electric motors. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RCA2G22E-F8M2I arrives factory-configured and factory-tested, ready to deliver from the first startup.

The RCA2G22E-F8M2I carries the factory-installed Mini-Matic M2I integrated unloader with pressure control knob and downstream chemical injection — delivering factory-configured pressure regulation with on-board chemical application capability from a single compact, factory-approved assembly. Operating at 1,750 RPM, the RCA2G22E-F8M2I delivers the thermal efficiency and extended component life of low-speed electric operation — running cooler, quieter, and with less cumulative wear than high-speed alternatives. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated technical support — this pump arrives pre-filled with factory break-in oil, factory-tested, and ready for installation. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, the RCA2G22E-F8M2I is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The RCA2G22E-F8M2I Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every RCA2G22E-F8M2I ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched M2I for 2,200 PSI — the Mini-Matic M2I integrated unloader and chemical injector are factory-calibrated for this pump’s 2.0 GPM / 2,200 PSI duty point. Pressure regulation and chemical draw characteristics are factory-set as a complete system.
• Factory-approved configuration — the complete assembly is Annovi Reverberi’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every RCA2G22E-F8M2I exits the manufacturing facility with the M2I assembly mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader or injector specification — the most common source of pump system returns — before the pump leaves the box.
• Installation-ready — confirm NEMA 56C motor compatibility, mount via the F8 flange, connect system hoses, connect the detergent supply line to the injector port, and start. The RCA2G22E-F8M2I arrives engineered, assembled, and ready.

Decoding the RCA2G22E-F8M2I Model Number

What Every Segment of This Annovi Reverberi Pump Designation Tells You

• RCA — Pump series: Annovi Reverberi electric triplex plunger pump platform
• 2G — Flow rate: 2.0 GPM
• 22 — Maximum pressure: 2,200 PSI — 2.0 × 2,200 = 4,400 cleaning units
• E — Shaft type: Electric shaft — hollow shaft configuration for direct electric motor coupling per Annovi Reverberi model designation convention

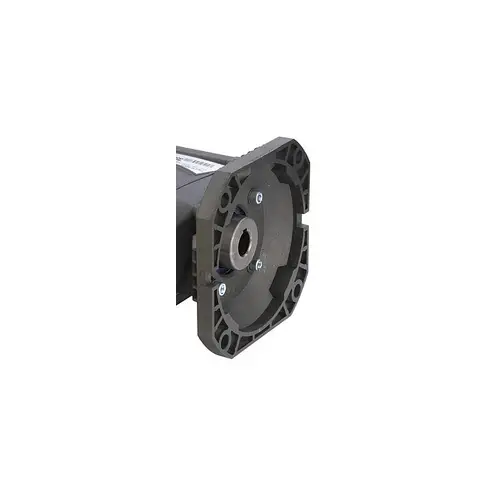

• F8 — Flange type: NEMA 56C flange — direct coupling to NEMA 56C electric motors with 5/8″ hollow shaft (Annovi Reverberi part AR1584)
• M2 — Unloader family: Mini-Matic — factory-installed integrated unloader assembly with pressure control knob for manual adjustment
• I — Chemical injector: Included — downstream soap injector factory-integrated into the Mini-Matic M2 assembly for chemical application and rinse capability

RCA2G F8M2I Family — 2,000 PSI vs 2,200 PSI

Both models share the same electric platform, F8 NEMA 56C flange, 5/8″ hollow shaft, Mini-Matic M2I assembly, and 2.0 GPM output:

• RCA2G22E-F8M2I (this model) — 2,200 PSI / 4,400 CU. Additional 200 PSI for more demanding residential and light commercial cleaning where greater impact force drives cleaning results.
• RCA2G20E-F8M2I — 2,000 PSI / 4,000 CU. Same compact electric platform at slightly lower pressure for general facility washdown, janitorial stations, and space-constrained OEM installations.

Key Specifications

RCA2G22E-F8M2I Technical Details at a Glance

• Flow Rate: 2.0 GPM (gallons per minute)
• Maximum Pressure: 2,200 PSI
• Cleaning Units: 4,400 (GPM × PSI)
• Operating Speed: 1,750 RPM — low-speed electric motor platform for reduced heat, vibration, and component wear
• Pump Type: Triplex ceramic plunger pump — smooth, low-pulsation output
• Flange: F8 — NEMA 56C electric motor flange, 5/8″ hollow shaft (Annovi Reverberi part AR1584)

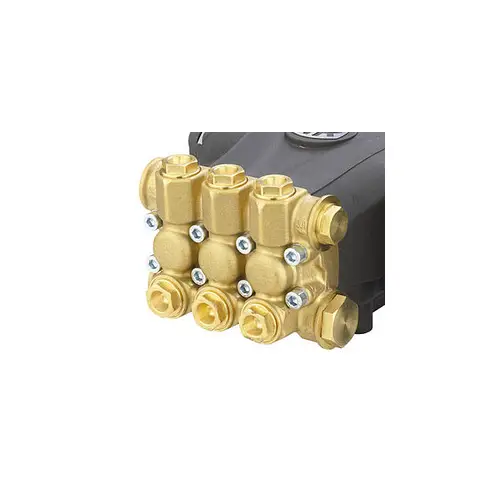

• Manifold Material: Precision-machined brass — pressure stability and corrosion resistance
• Plungers: Solid ceramic — wear resistance and consistent sealing performance
• Valves: Stainless steel — durability under frequent pressure cycling
• Bearings: Heavy-duty — extended service intervals at 1,750 RPM low-speed operation
• Serviceability: Oil sight glass and vented dipstick for simplified routine maintenance
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Unloader System: Mini-Matic M2I — pressure control knob; integrated downstream chemical injector; factory-matched and factory-installed
• Connections: Banjo bolts and sealing O-rings — standard M2 family hardware supplied for secure, leak-resistant installation
• Chemical Injector: Included — downstream venturi injector factory-integrated into M2I Mini-Matic assembly
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

What’s Included in the Box

A Complete, Factory-Configured RCA2G22E-F8M2I Assembly Ready for Installation

• Factory-matched Mini-Matic M2I integrated unloader with active chemical injector — factory-set and installed for the 2.0 GPM / 2,200 PSI operating point; pressure control knob for manual adjustment; injector port ready for detergent supply line connection
• Banjo bolts and sealing O-rings — standard M2 family hardware for secure, leak-resistant unloader connections
• Factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting hardware — for F8 NEMA 56C electric motor installation
• Operator’s manual and parts diagram — complete installation, startup, operating, and maintenance procedures with Annovi Reverberi part numbers for every serviceable component

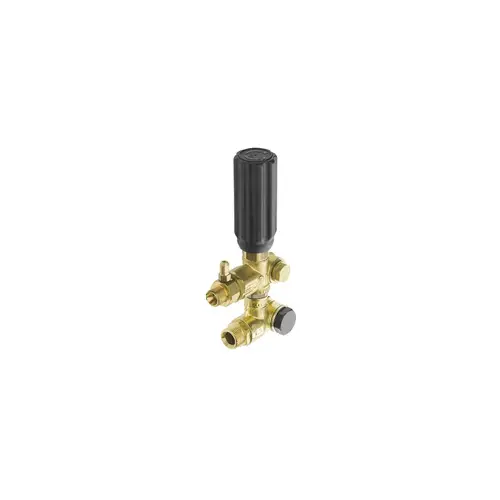

Mini-Matic M2I Unloader — Chemical Application and Rinse at 2,200 PSI

Pressure Control Knob. Integrated Chemical Feed. Low-Speed Electric Platform.

• Manual pressure adjustment with control knob — the Mini-Matic M2I on the RCA2G22E-F8M2I includes a pressure control knob for setting system working pressure before placing the unit into continuous service, with fine adjustment available for different nozzle sizes and surface requirements
• Integrated downstream injection — draws detergent or pre-soak solution when the operator switches to low-pressure application mode. No separate injector hardware or additional plumbing required on the RCA2G22E-F8M2I.
• Chemical application and rinse at 2.0 GPM / 2,200 PSI — chemical pre-soak breaks down contamination; full 2,200 PSI / 2.0 GPM rinse removes loosened material at 4,400 cleaning units. Switch between application and rinse without changing tools.
• Over-pressurization protection — the M2I unloader guards against pressure spikes on the RCA2G22E-F8M2I during trigger cycling, protecting ceramic plungers, seals, and downstream system components from overload conditions
• Reduced external plumbing complexity — integrated unloader and injector on the RCA2G22E-F8M2I reduce external fittings, simplifying plumbing layout and maintenance access in compact portable carts, cabinet builds, and small wash stations
• Injector maintenance — flush the M2I injector circuit with clean water after every detergent session to preserve long-term venturi function on the RCA2G22E-F8M2I

1,750 RPM Low-Speed Electric Operation — Extended Service Life at 2,200 PSI

Cooler. Quieter. Less Wear. Built for Long-Duty Electric Cleaning Systems.

• 1,750 RPM reduces heat and mechanical wear — the RCA2G22E-F8M2I’s low-speed operation reduces heat buildup, vibration, and cumulative wear on ceramic plungers, seals, and heavy-duty bearings across extended residential and commercial cleaning cycles
• Quieter operation for enclosed environments — 1,750 RPM electric output produces substantially lower noise than high-speed alternatives, suited for vehicle wash bays, indoor maintenance facilities, and residential settings where quiet operation is a priority
• Consistent voltage-regulated output — electric motor power delivers stable, predictable 2.0 GPM / 2,200 PSI performance unaffected by fuel quality or ambient temperature on the RCA2G22E-F8M2I
• Direct F8 NEMA 56C mount — the RCA2G22E-F8M2I mounts directly to compatible NEMA 56C motors, eliminating belt alignment and reducing overall package length for compact frame and skid builds

Typical Applications

Where the RCA2G22E-F8M2I Delivers Best Results

• Residential and commercial cleaning — driveways, siding, decks, patios, and outdoor furniture where the RCA2G22E-F8M2I’s 2,200 PSI output and factory-integrated chemical capability deliver thorough cleaning with quiet 1,750 RPM electric operation
• Vehicle wash bays, fleet touch-up, and rental equipment cleaning — the RCA2G22E-F8M2I’s 2,200 PSI cleaning force and on-board chemical injection handle vehicle surface contamination efficiently in enclosed electric wash environments
• Industrial washdown of machinery, tools, work areas, and maintenance bays — compact NEMA 56C direct-drive mounting and quiet electric operation support clean indoor industrial washdown programs where gas engine alternatives are not suitable
• OEM replacement for 56C electric motor systems needing on-board unloader and injector capability — the RCA2G22E-F8M2I’s F8 NEMA 56C interface and factory-matched M2I assembly provide direct-fit replacement for existing electric pressure washer systems at 2.0 GPM / 2,200 PSI

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

Electric Triplex Performance Backed by Domestic Support

The RCA2G22E-F8M2I is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network. Every internal wear component — solid ceramic plungers, brass manifold seals and o-rings, stainless valve seats and springs, Mini-Matic M2I unloader service parts, piston packing kits, and crankcase bearings — is stocked domestically through authorized distribution channels. Contractors, facility managers, fleet operators, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RCA2G22E-F8M2I and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

4,400 Cleaning Units. 2,200 PSI. 2.0 GPM. F8 NEMA 56C. 1,750 RPM. Mini-Matic M2I. Integrated Chemical Injection.

Italian Engineering. Low-Speed Electric Platform. Factory-Approved Mini-Matic Assembly. US Warranty Coverage.

For residential users, commercial operators, facility managers, and OEM equipment builders who need 2.0 GPM at 2,200 PSI on a NEMA 56C electric motor platform — with F8 flange direct coupling for compact cabinet washers, portable carts, and small wash stations, 1,750 RPM low-speed operation for extended component life and quiet performance, factory-matched Mini-Matic M2I integrated unloader with downstream chemical injection, and a completely rebuildable platform backed by a 5-year US warranty — the RCA2G22E-F8M2I delivers a purpose-engineered compact electric cleaning solution from one of the global pressure pump industry’s most trusted manufacturers. Four thousand four hundred cleaning units. NEMA 56C direct couple. Integrated chemical injection. Five years of US warranty. A decade of service life.

Volume buyers can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing for quantity purchases across the complete Annovi Reverberi lineup.
