RCA2G20E-F8M2I | Triplex Pump, 2.0 GPM 2000 PSI, F8 56C, M2 Unloader

RCA2G20E-F8M2I by Annovi Reverberi — Electric Triplex Plunger Pump with Mini-Matic M2I Unloader and Chemical Injector | 2.0 GPM | 2,000 PSI | Brass Manifold | 5/8″ Hollow Shaft | NEMA 56C F8 Electric Motor Mount

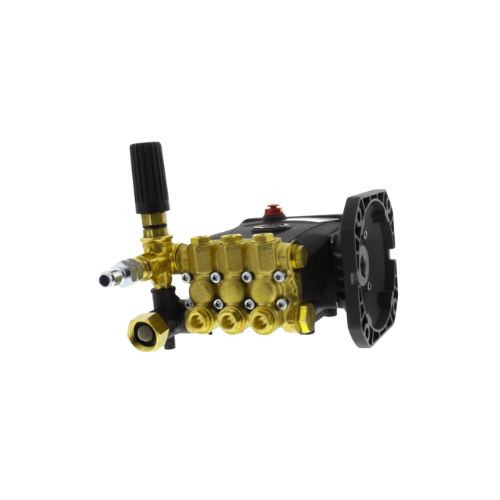

The RCA2G20E-F8M2I by Annovi Reverberi is a compact electric triplex ceramic plunger pump engineered for NEMA 56C electric motor-driven pressure washing systems requiring 2.0 GPM at 2,000 PSI with factory-integrated downstream chemical injection capability. Rated at 2.0 GPM and 2,000 PSI, the RCA2G20E-F8M2I delivers 4,000 cleaning units — combining 2.0 GPM focused output with 2,000 PSI cleaning force for driveways, patios, siding, facility washdown stations, mobile detailing setups, and industrial support cleaning — through a precision-machined brass manifold, solid ceramic plungers, stainless steel valves, heavy-duty bearings, and an F8 NEMA 56C flange with 5/8″ hollow shaft for direct coupling to compatible electric motors. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RCA2G20E-F8M2I arrives factory-configured and factory-tested, ready to deliver from the first startup.

The RCA2G20E-F8M2I carries the factory-installed Mini-Matic M2I integrated unloader with manual pressure adjustment and downstream chemical injection — delivering factory-configured pressure regulation with chemical application capability from a single compact assembly. Its direct-coupled NEMA 56C mounting mates cleanly to 56C motor faces for fast, repeatable installs on compact frames, cabinet builds, wall-mount electric systems, and OEM assemblies where footprint and service access matter. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated technical support — the RCA2G20E-F8M2I arrives pre-filled with factory break-in oil, factory-tested, and ready for installation. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, this pump is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The RCA2G20E-F8M2I Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every RCA2G20E-F8M2I ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched M2I for 2,000 PSI — the Mini-Matic M2I integrated unloader and chemical injector are factory-calibrated for this pump’s 2.0 GPM / 2,000 PSI duty point. Pressure regulation and chemical draw characteristics are factory-set as a complete system.
• Factory-approved configuration — the complete assembly is Annovi Reverberi’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every RCA2G20E-F8M2I exits the manufacturing facility with the M2I assembly mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — the factory-matched assembly eliminates incorrect unloader or injector specification — the most common source of pump system returns — before the pump leaves the box.
• Installation-ready — confirm NEMA 56C motor compatibility, mount via the F8 flange, connect system hoses, connect the detergent supply line to the injector port, and start. The RCA2G20E-F8M2I arrives engineered, assembled, and ready.

Decoding the RCA2G20E-F8M2I Model Number

What Every Segment of This Annovi Reverberi Pump Designation Tells You

• RCA — Pump series: Annovi Reverberi electric triplex plunger pump platform
• 2G — Flow rate: 2.0 GPM
• 20 — Maximum pressure: 2,000 PSI — 2.0 × 2,000 = 4,000 cleaning units
• E — Shaft type: Electric shaft — hollow shaft configuration for direct electric motor coupling per Annovi Reverberi model designation convention
• F8 — Flange type: NEMA 56C flange — direct coupling to NEMA 56C electric motors with 5/8″ hollow shaft (Annovi Reverberi part AR1584)
• M2 — Unloader family: Mini-Matic — factory-installed integrated unloader assembly with manual pressure adjustment
• I — Chemical injector: Included — downstream soap injector factory-integrated into the Mini-Matic M2 assembly for chemical application and rinse capability

Key Specifications

RCA2G20E-F8M2I Technical Details at a Glance

• Flow Rate: 2.0 GPM (gallons per minute)
• Maximum Pressure: 2,000 PSI
• Cleaning Units: 4,000 (GPM × PSI)
• Pump Type: Triplex ceramic plunger pump — smooth, low-pulsation output
• Drive Type: Electric motor driven, direct-coupled
• Flange: F8 — NEMA 56C electric motor flange, 5/8″ hollow shaft (Annovi Reverberi part AR1584)

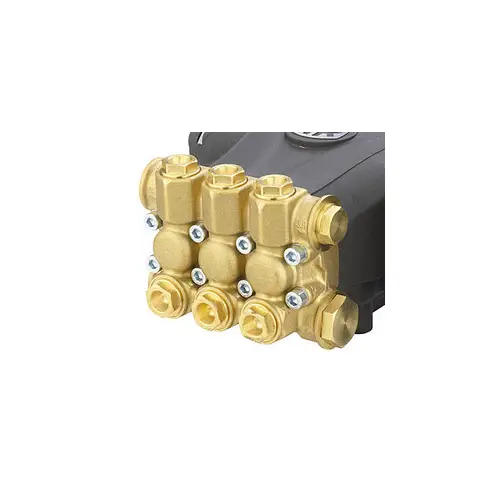

• Manifold Material: Precision-machined brass — pressure stability and corrosion resistance
• Plungers: Solid ceramic — wear resistance and consistent sealing performance
• Valves: Stainless steel — durability in continuous-duty cleaning environments
• Bearings: Heavy-duty — extended service intervals under repeated load cycling
• Serviceability: Oil sight glass and vented dipstick for simplified routine maintenance
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Unloader System: Mini-Matic M2I — manual pressure adjustment; integrated downstream chemical injector; factory-matched and factory-installed
• Connections: Banjo bolts and sealing O-rings — standard M2 family hardware supplied for secure, leak-resistant installation
• Chemical Injector: Included — downstream venturi injector factory-integrated into M2I Mini-Matic assembly
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

What’s Included in the Box

A Complete, Factory-Configured RCA2G20E-F8M2I Assembly Ready for Installation

• Factory-matched Mini-Matic M2I integrated unloader with active chemical injector — factory-set and installed for the 2.0 GPM / 2,000 PSI operating point; manual pressure adjustment; injector port ready for detergent supply line connection
• Banjo bolts and sealing O-rings — standard M2 family hardware for secure, leak-resistant unloader connections
• Factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Motor mounting fasteners — for secure F8 NEMA 56C electric motor attachment
• Instruction manual and exploded parts diagram — complete installation, startup, operating, and maintenance procedures with Annovi Reverberi part numbers for every serviceable component

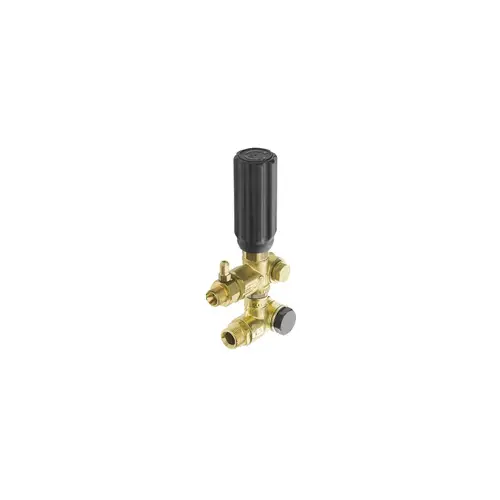

Mini-Matic M2I Unloader — Chemical Application and Rinse at 2,000 PSI

Factory-Set. Manual Adjustment. Integrated Chemical Feed. Compact Electric Platform.

• Manual pressure adjustment for precise system tuning — the Mini-Matic M2I on the RCA2G20E-F8M2I includes a manual adjustment valve for setting working pressure to the specific system requirement before placing the unit into continuous service
• Integrated downstream injection — draws detergent or pre-soak solution when the operator switches to low-pressure application mode. No separate injector hardware required on the RCA2G20E-F8M2I.
• Chemical application and rinse at 2.0 GPM / 2,000 PSI — chemical pre-soak breaks down contamination; full 2,000 PSI / 2.0 GPM rinse removes loosened material at 4,000 cleaning units. Switch between application and rinse without changing tools.
• Bypass protection at trigger release — the M2I unloader diverts flow when the trigger is released on the RCA2G20E-F8M2I, protecting the pump from pressure spikes and limiting heat buildup during pause-and-resume cleaning cycles
• Compact integrated assembly for tight installations — the M2I’s direct-mount design reduces external plumbing components on the RCA2G20E-F8M2I, supporting compact frame layouts, cabinet builds, and wall-mount electric systems where space is at a premium
• Injector maintenance — flush the M2I injector circuit with clean water after every detergent session to preserve long-term venturi function on the RCA2G20E-F8M2I

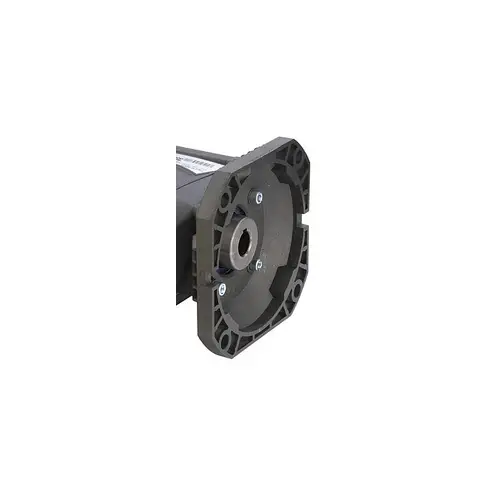

Compact NEMA 56C Direct-Drive Design

Fast Installs. Repeatable OEM Assembly. Compact Footprint.

• Direct-coupled 56C mounting for fast, repeatable installs — the RCA2G20E-F8M2I mounts directly to compatible NEMA 56C electric motors, eliminating belt alignment and reducing overall package length for compact frame and cabinet pressure washer builds
• Fits portable carts, enclosed cabinets, and tight equipment layouts — the RCA2G20E-F8M2I’s compact footprint supports a wide range of electric pressure washer frame configurations including wall-mount installations, skid units, and OEM assemblies where footprint and service access are design constraints
• OEM replacement compatibility — the RCA2G20E-F8M2I’s F8 NEMA 56C interface supports direct-fit replacement of worn 56C electric pump assemblies in existing compact frames without motor or frame modification
• Quiet, exhaust-free electric operation — suitable for indoor facility wash stations, janitorial cleaning programs, and enclosed service environments where gas engine noise and exhaust are not acceptable

Typical Applications

Where the RCA2G20E-F8M2I Delivers Best Results

• Electric pressure washers for driveways, patios, siding, and general property maintenance — the RCA2G20E-F8M2I’s 2,000 PSI output and factory-integrated chemical capability handle general residential and commercial surface cleaning from a compact electric assembly
• Facility and janitorial wash stations — floors, dumpsters, loading docks, and equipment rinse-down in enclosed environments where the RCA2G20E-F8M2I’s quiet electric operation supports clean indoor cleaning programs
• Mobile detailing setups and small service rigs — the RCA2G20E-F8M2I’s compact NEMA 56C direct-drive design and factory-matched M2I assembly support efficient integration into mobile electric detailing and service cleaning systems
• OEM replacement for worn 56C electric pump assemblies — the RCA2G20E-F8M2I is a direct-fit replacement for existing electric pressure washer systems requiring 2.0 GPM / 2,000 PSI output in compact 56C face mount frames
• Industrial support cleaning for maintenance teams — reliable, space-efficient 2,000 PSI electric output supports maintenance team cleaning operations in industrial facilities where compact, low-noise cleaning equipment is required

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

Electric Triplex Performance Backed by Domestic Support

The RCA2G20E-F8M2I is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network. Every internal wear component — solid ceramic plungers, brass manifold seals and o-rings, stainless valve seats and springs, Mini-Matic M2I unloader service parts, piston packing kits, and crankcase bearings — is stocked domestically through authorized distribution channels. Contractors, facility managers, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RCA2G20E-F8M2I and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

4,000 Cleaning Units. 2,000 PSI. 2.0 GPM. F8 NEMA 56C. Mini-Matic M2I. Integrated Chemical Injection.

Italian Engineering. Compact Electric Platform. Factory-Approved Mini-Matic Assembly. US Warranty Coverage.

For residential users, facility managers, mobile service operators, and OEM equipment builders who need 2.0 GPM at 2,000 PSI on a NEMA 56C electric motor platform — with F8 flange direct coupling for compact cabinet washers, wall-mount systems, and space-constrained OEM builds, factory-matched Mini-Matic M2I integrated unloader with downstream chemical injection, quiet exhaust-free electric operation for indoor applications, and a completely rebuildable platform backed by a 5-year US warranty — the RCA2G20E-F8M2I delivers a purpose-engineered compact electric solution from one of the global pressure pump industry’s most trusted manufacturers. Four thousand cleaning units. NEMA 56C direct couple. Integrated chemical injection. Five years of US warranty. A decade of service life.

Volume buyers can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing for quantity purchases across the complete Annovi Reverberi lineup.
