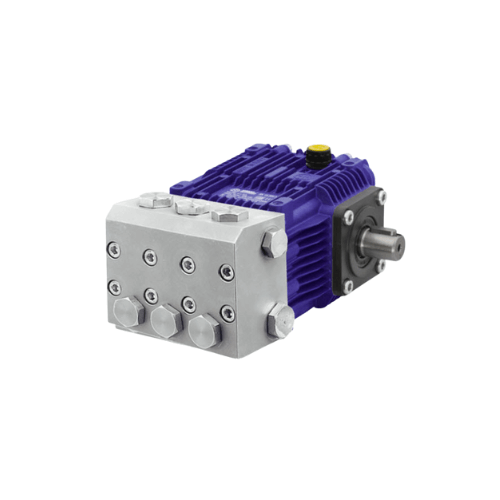

JK-SS2115N | Stainless Triplex Pump, 5.5 GPM 2200 PSI, 1450 RPM

Overview

• The JK-SS2115N Stainless Steel Plunger Pump is engineered for demanding washdown, chemical, and sanitation environments where durability and corrosion resistance are critical.
• Delivers 5.5 GPM at 2,200 PSI with a smooth, low-speed operating speed of 1,450 RPM for cooler, longer-lasting performance.
• Ideal for food production, chemical processing, pharmaceutical sanitation, and other high-demand industrial applications.
• Combines an AISI 316 stainless steel pump head, ceramic plungers, premium seals, and an oil bath crankcase to maximize service life while minimizing maintenance.

Performance at a Glance

• Flow Output: 5.5 GPM for medium- to large-scale washdown and sanitation systems.
• Working Pressure: 2,200 PSI to remove fats, proteins, chemicals, and stubborn residues.
• Operating Speed: 1,450 RPM belt-drive speed for reduced vibration, noise, and heat.
• Duty Profile: Built for continuous or frequent-use industrial sanitation and chemical washdown.

Key Specifications for JK-SS2115N

• Flow Rate: 5.5 GPM (gallons per minute).
• Pressure Rating: 2,200 PSI (pounds per square inch).
• Pump Speed: 1,450 RPM (low-speed belt-drive operation).
• Pump Head Material: AISI 316 stainless steel for superior corrosion resistance in chemical and food environments.

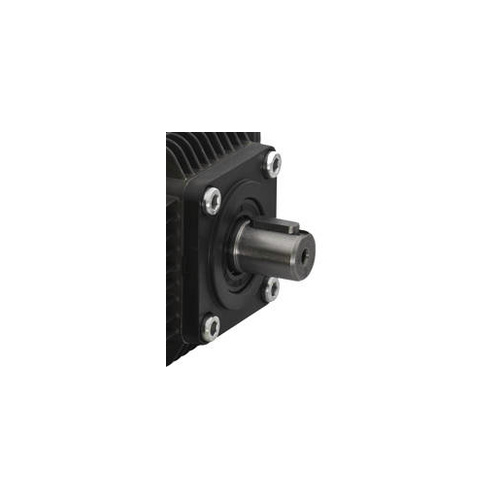

• Shaft Size: 24 mm solid shaft for compatibility with common pulleys, couplers, and gearboxes.
• Plungers: Precision ceramic plungers for reduced wear and long-term durability.
• Lubrication: Oil bath crankcase with sight glass and vented dipstick.
• Warranty: 5-year commercial warranty with U.S.-based service support.

Construction Details

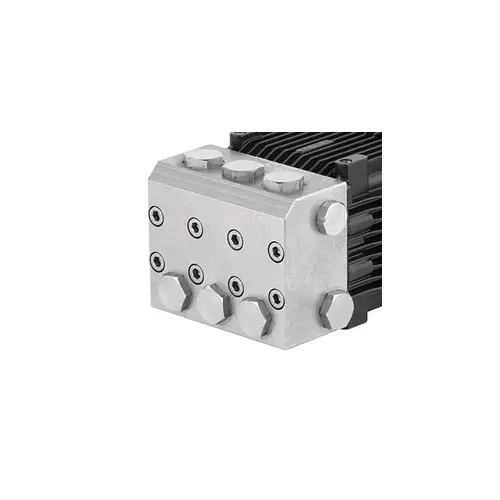

• AISI 316 Stainless Steel Head: Provides exceptional resistance to caustic chemicals, brine, and aggressive sanitation agents.
• Ceramic Plungers: Maintain dimensional stability under heat and abrasion, protecting seals and boosting pump life.
• Premium Seals: Factory-fitted to help prevent leaks and support continuous-duty operation in harsh environments.
• Oil Bath Crankcase: Keeps moving parts fully lubricated for smoother running and reduced wear.

What’s Included with JK-SS2115N

• JK-SS2115N triplex plunger pump, factory-assembled and performance-tested.
• Pre-installed break-in oil for immediate protection during startup.
• Oil sight glass for quick and accurate lubrication checks.
• Vented dipstick to maintain proper crankcase pressure balance and simplify servicing.
• Ceramic plungers and premium seals pre-fitted for maximum reliability out of the box.
• Factory schematic and operator’s documentation for installation, plumbing, and maintenance reference.
• 5-year factory warranty covering commercial-duty use when operated within specifications.

Installation Notes

• Mount the pump on a rigid, flat base to maintain shaft alignment and minimize vibration in belt-drive systems.
• Use chemically compatible hoses, fittings, and thread sealants rated for 2,200 PSI and your chosen cleaning agents.
• Provide adequate inlet flow with a properly sized supply line and strainer to prevent cavitation and premature seal wear.
• Pair with a correctly sized unloader, safety relief, and pressure gauge to stay within the pump’s rated pressure range.

How the Pump Works

• The triplex plunger design uses three ceramic plungers cycling in sequence to pressurize water through stainless or chemically compatible valves.
• This configuration delivers steady flow and consistent pressure with reduced pulsation compared to single-piston designs.
• Running at 1,450 RPM, the pump stays cooler and experiences less mechanical stress, extending the life of bearings, seals, and crank components.
• The oil bath crankcase provides constant lubrication to internal parts, while the sight glass and vented dipstick simplify routine checks.

Maintenance & Service

• Monitor oil level through the sight glass and follow the manufacturer’s oil change intervals.
• Inspect and replace inlet strainers and any system filters regularly to keep abrasives and debris out of the pump head.
• Check belts, pulleys, and couplings for alignment and wear in belt-drive installations.
• Periodically verify system pressure with a glycerin-filled gauge and adjust the unloader valve as needed.
• Use cleaning agents and sanitizers that are compatible with AISI 316 stainless steel and the pump’s seal materials.

Benefits of the JK-SS2115N

• High Flow Capacity: 5.5 GPM supports multi-point washdown and larger sanitation zones.
• Superior Chemical Resistance: Stainless steel head and wetted components stand up to caustic cleaners, brine, and harsh washdown chemicals.
• Extended Component Life: Ceramic plungers and premium seals reduce wear and extend service intervals.
• Low-Speed Operation: 1,450 RPM reduces heat, vibration, and noise for a more stable system.
• Easy Serviceability: Oil sight glass, vented dipstick, and accessible components simplify maintenance routines.
• Warranty & Support: 5-year commercial warranty and U.S.-based service network provide long-term peace of mind.

Operator Advantages

• Consistent Cleaning Results: Stable 2,200 PSI output helps maintain uniform sanitation standards shift after shift.
• Reduced Downtime: Durable construction and easy maintenance minimize unexpected stoppages.
• Quiet, Smooth Operation: Low-speed design and triplex configuration reduce vibration and noise in production areas.
• Chemical Compatibility: Ideal for facilities using aggressive detergents, sanitizers, and brine solutions.

Typical Applications for JK-SS2115N

• Food Production Facilities: USDA-style washdowns of conveyors, mixers, fillers, and packaging lines.
• Chemical Processing Plants: CIP and washdown systems exposed to caustic or acidic cleaning agents.
• Pharmaceutical & Biotech: Sanitary cleaning of process equipment and production spaces.
• Brine & Biofuel Systems: Environments with high salinity or aggressive process fluids.
• Agricultural Operations: Barn, dairy, and processing-plant washdown where corrosion resistance is critical.
• Marine & Coastal Facilities: Rinse and cleaning systems exposed to salt spray and humid conditions.

System Design Ideas

• Integrate into centralized plant washdown manifolds feeding multiple hose stations.
• Use in skid-mounted sanitation units for food plants, beverage facilities, or chemical production lines.
• Pair with stainless steel spray lances and nozzles for fully corrosion-resistant washdown systems.
• Combine with hot water systems (within published temperature limits) for enhanced degreasing and sanitation.

Why Choose the JK-SS2115N?

• Delivers the ideal blend of 5.5 GPM flow, 2,200 PSI pressure, and stainless steel durability for harsh industrial environments.
• Designed specifically for chemical, food-grade, and sanitation applications where standard brass-head pumps fall short.
• Backed by a 5-year commercial warranty and Annovi Reverberi’s reputation for professional pump engineering.
• Reduces total cost of ownership through longer component life, reduced downtime, and straightforward maintenance.

Highlights & Call to Action

• Model: JK-SS2115N Stainless Steel Triplex Plunger Pump.
• Core Specs: 5.5 GPM, 2,200 PSI, 1,450 RPM, AISI 316 stainless steel head, ceramic plungers.
• Best For: food production washdown, chemical plant sanitation, pharmaceutical CIP, brine and marine environments.
• Upgrade Path: Replace standard brass or aluminum-head pumps with the JK-SS2115N for superior chemical resistance and service life.
• Next Step: Specify the JK-SS2115N in your washdown or sanitation system design to gain long-term reliability in the harshest environments.
