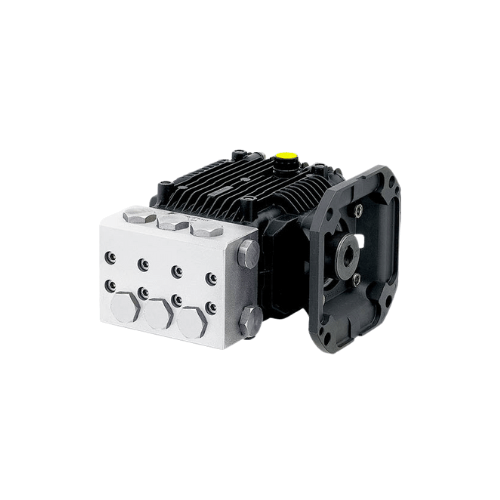

RKASS42G15E-F33 | 4.2 GPM 1500 PSI Triplex Pump, SS Head, 56C

RKASS42G15E-F33 — 4.2 GPM 1500 PSI Stainless Head 56C Direct-Drive Pump, 1750 RPM

• The RKASS42G15E-F33 is a heavy-duty industrial triplex plunger pump designed for electric motor-driven wash systems that require dependable 4.2 GPM performance at 1500 PSI.
• Operating at 1750 RPM, it aligns with standard 4-pole NEMA 56C electric motors, delivering smooth, predictable output with reduced noise and mechanical stress compared to high-speed direct-drive pumps.
• A 5/8″ hollow direct-drive shaft and integral 56C face-mount pattern allow the pump to bolt directly to compatible motors, eliminating separate couplers and complex alignment work.
• The stainless head, forged brass manifold, ceramic plungers, and stainless valves are configured to withstand daily washdown, moderate chemistries, and continuous-duty operation in demanding commercial and industrial environments.

Performance and Operating Profile

• Rated at 4.2 GPM and 1500 PSI, the pump provides a balanced combination of flow and pressure suitable for routine washdown, vehicle cleaning, and facility maintenance work.
• The 1750 RPM operating speed supports lower crankcase temperatures and reduced vibration, extending seal, valve, and bearing life when compared with higher-speed direct-drive options.
• Triplex plunger geometry delivers low-pulsation output, which improves gun control, accessory performance, and operator comfort over extended cleaning sessions.
• The performance window is ideal for single-gun systems, light degreasing, and sanitation tasks where reliable, repeatable output is more important than extreme pressure.

Flow, Pressure, and Duty Range

• 4.2 GPM provides enough volume to rapidly rinse vehicles, floors, and equipment while remaining compatible with common hose diameters and header manifolds.
• 1500 PSI offers effective cleaning energy for dirt, light oils, and production residues without the risk of frequent surface damage or accelerated accessory wear.
• The pump is well suited to daily or multi-shift operation when supported by proper inlet conditions, correctly sized unloaders, and stable electrical supply to the drive motor.
• System designers can fine-tune performance with nozzle selection, chemical mix, and accessory choice to cover everything from routine housekeeping to moderate-duty surface preparation.

56C Direct-Drive Integration with RKASS42G15E-F33

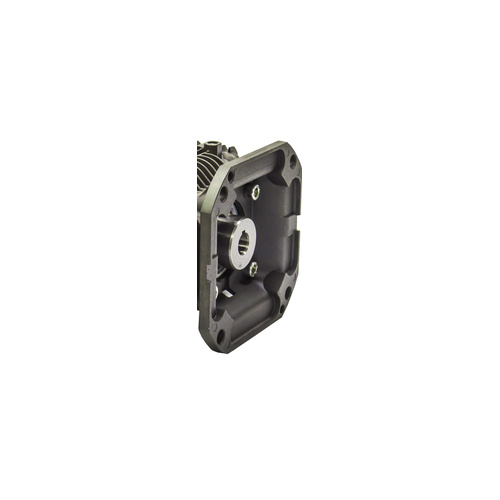

• The 5/8″ hollow direct-drive shaft is engineered for NEMA 56C face-mount electric motors, providing a compact, integrated pump-and-motor assembly.
• Direct mounting eliminates separate couplers and flexible mounts, reducing installation time and potential misalignment that can shorten bearing life.
• With the pump bolted to the motor face, shaft concentricity is defined by factory machining, improving long-term reliability in both fixed and portable systems.
• The compact direct-drive layout is ideal for electric skids, wall-mounted wash stations, janitorial carts, and indoor equipment where footprint and simplicity matter.

System Layout and Controls

• The integrated 56C arrangement simplifies framing; the motor and pump can be mounted as a single unit on a plate, cart, or bracket with minimal floor or wall space.
• Electrical controls, hose reels, and chemical injection hardware can be grouped around the assembly to create a clean, self-contained wash module.
• The 1750 RPM base speed is compatible with across-the-line starters, soft starters, or VFD controls, allowing soft starts, ramped pressure, or variable output where required.
• Properly sized breakers, overloads, and motor protection devices should be selected in parallel with unloader, hose, and nozzle sizing to maintain overall system reliability.

Construction and Wet-End Components

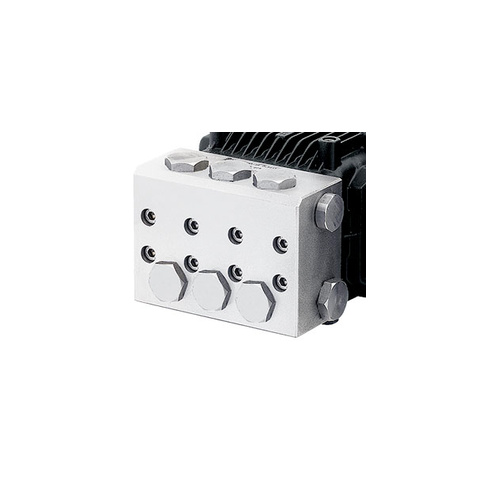

• The stainless steel head RKASS42G15E-F33 provides corrosion resistance in environments where detergents, sanitizers, and frequent rinse cycles are part of daily operation.
• A forged brass manifold supports pressure containment and structural stability under continuous-duty use, maintaining sealing surfaces over time.
• Solid ceramic plungers create a hard, dimensionally stable sliding surface for packings, reducing wear and limiting heat transfer into the seals.
• Stainless steel valves maintain consistent seating and flow control in moisture-rich and chemically active wash areas, preserving volumetric efficiency between service intervals.

Seals, Valves, and Serviceability for RKASS42G15E-F33

• High-pressure seals are specified for 1500 PSI operation with clean water and compatible chemical solutions used within recommended temperature ranges.
• Valve and seal kits are available for planned wet-end rebuilds, allowing technicians to restore performance without replacing the entire pump.
• The head and manifold are designed for straightforward access, so seal and valve replacement can be completed with common shop tools.
• Proper inlet filtration and chemical selection further extend seal and valve life, stabilizing maintenance requirements across multiple service cycles.

Maintenance, Inspection, and Reliability

• The pump RKASS42G15E-F33 is factory-tested and shipped with pre-filled break-in oil, simplifying initial startup and helping protect internal components during early service hours.
• An integrated oil sight glass allows quick visual confirmation of oil level and basic condition during daily or pre-shift inspections.
• The vented dipstick regulates crankcase pressure and provides a clean access point for draining and refilling oil at scheduled intervals.
• When operated within design limits and supported by routine lubrication, inlet checks, and unloader inspection, the RKASS42G15E-F33 is engineered for long, predictable service life in demanding environments.

Preventive Maintenance RKASS42G15E-F33 Practices

• Regular checks should verify oil level and clarity, inspect for leaks at the head and fittings, and confirm stable operating pressure under typical load.
• Seal and valve replacement intervals can be scheduled based on run hours, water quality, and chemical exposure, aligning with facility maintenance programs.
• Monitoring inlet strainers, hose condition, and unloader function helps prevent cavitation, pressure spikes, and unnecessary mechanical stress on the pump.
• Documented service history and consistent rebuild practices allow the pump to remain in service across multiple overhaul cycles, maximizing the value of the installed system.

Applications and Use Cases of RKASS42G15E-F33

• Commercial pressure systems for car washes, auto detailing operations, and fleet maintenance bays.
• Industrial equipment cleaning, wash bays, and parts-washing stations that rely on electric-drive pressure systems.
• Portable electric pressure washer skids and rental equipment where compact size and direct-drive simplicity are important.
• Food preparation and sanitary environments that specify stainless steel wetted components for washdown and hygiene control.
• Maintenance washdown in warehouses, plants, and processing facilities that require continuous-duty performance and high uptime.
• Indoor or low-emission cleaning applications where electric drive is preferred over engine-driven equipment for safety and air quality reasons.
