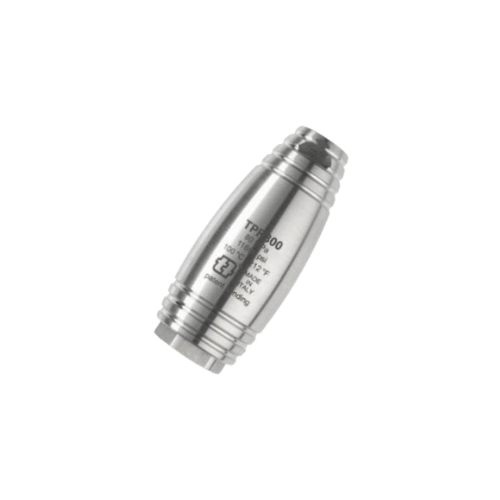

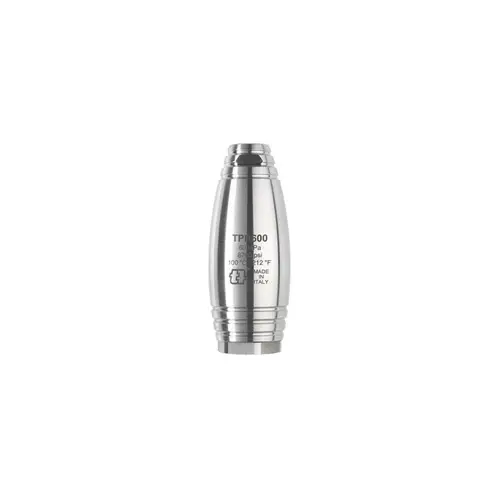

TPR800-055 SS Rotating Nozzle | 11600 PSI Extreme Duty

TPR800-055 Stainless Steel Rotating Nozzle – 11,600 PSI Extreme Duty

The AR North America TPR800-055 Rotating Nozzle is a high-flow,
ultra-high-pressure stainless steel turbo nozzle engineered for extreme-duty
800-bar (11,600 PSI) cleaning systems. Featuring a
5.5 orifice size and a 20° rotating spray cone,
the TPR800-055 is purpose-built for large-area cleaning jobs that demand maximum
coverage, aggressive impact, and fast material removal. This nozzle is an
excellent solution for industrial, marine, refinery, tank-cleaning,
infrastructure maintenance, and heavy-duty washdown applications where
productivity and cutting performance directly affect job time and operating
costs.

At its core, the TPR800-055 uses Annovi Reverberi’s precision-engineered internal
rotor system to convert a concentrated 0° jet into a high-speed rotating cone.
This spinning action multiplies the number of high-energy water impacts striking
the surface every second, delivering dramatically higher cleaning efficiency
than fixed spray tips. The result is faster removal of stubborn deposits such as
scale, coatings, grease, concrete residue, and industrial buildup while
maintaining consistent surface coverage.

The nozzle body is manufactured from high-grade stainless steel,
with hardened internal components designed to withstand extreme pressure,
high-velocity water flow, and abrasive contaminants commonly found in industrial
environments. Rated for operating temperatures up to
212°F (100°C), the TPR800-055 is fully compatible with hot-water
systems, further enhancing its ability to cut through oils, grease, heavy soils,
and baked-on residues in demanding washdown and surface-preparation tasks.

TPR800-055 Key Features

• Maximum working pressure of 11,600 PSI (800 bar): Designed
  specifically for ultra-high-pressure systems operating in the most demanding
  industrial, marine, and infrastructure environments.
• 5.5 orifice size: High-flow configuration optimized for large
  surface areas where maximum throughput and coverage are critical to
  productivity.
• 20° rotating spray cone: Transforms a narrow jet into a
  rotating cone, multiplying impact points and delivering faster, more uniform
  cleaning.
• Stainless steel body with hardened internals: Provides
  excellent resistance to corrosion, abrasion, and wear caused by high-velocity
  water, debris, and harsh operating conditions.
• Hot-water compatible: Rated up to 212°F, allowing use with
  heated water systems to improve degreasing and removal of heavy contaminants.
• Standard 1/4″ female inlet: Compatible with professional
  800-bar lances, guns, and fittings for easy integration into existing UHP
  systems.
• Vertical-start rotor design: Promotes smooth rotor engagement
  and consistent spray performance, reducing internal shock and extending
  service life.

Construction & Design Advantages

• High-flow, high-impact performance: The 5.5 orifice combined
  with the rotating spray cone delivers broad coverage while maintaining strong
  mechanical cutting force, making it ideal for heavy buildup, rust, scale,
  coatings, and industrial grime.
• Built for harsh environments: Stainless steel construction
  and hardened internals resist saltwater exposure, chemicals, abrasive
  particles, and thermal stress, ensuring reliable performance in marine,
  refinery, and outdoor applications.
• Efficient large-area cleaning: The rotating 20° spray pattern
  cleans more surface area per pass than fixed jets, significantly reducing
  cleaning time on decks, tanks, slabs, hulls, and structural steel.
• Hot-water and chemical compatibility: Supports a wide range
  of industrial cleaning methods, including degreasing, oil removal, and heavy
  washdowns where heat and detergents improve results.
• Easy system integration: Standard inlet threading allows
  quick installation without special adapters, minimizing downtime when
  swapping or upgrading nozzles.

TPR800-055 Typical Applications

• Shipyards and marine maintenance: Removing barnacles, marine
  growth, rust, scale, and coatings from hulls, decks, tanks, and structural
  steel in saltwater environments.
• Refinery, petrochemical, and plant cleaning: Effective
  removal of hydrocarbons, soot, chemical buildup, scale, and heavy deposits
  from vessels, piping, platforms, and containment areas.
• Tank and vessel cleaning: Internal and external cleaning of
  large tanks, silos, and storage vessels where sludge, scale, or residue
  require high-flow, high-impact water-jetting.
• Concrete and infrastructure maintenance: Cleaning bridge
  decks, piers, industrial floors, precast panels, and slabs contaminated with
  oil, grime, concrete residue, or industrial waste.
• Heavy equipment and fleet washing: Rapid removal of mud,
  grease, hydraulic oil, road film, and industrial buildup from trucks,
  trailers, heavy machinery, and specialty equipment.
• Industrial wash bays and surface preparation: Ideal for
  coating removal, degreasing, and surface prep prior to blasting, inspection,
  repair, or recoating.

Performance & Sizing Guidelines

• Flow and pressure matching: The 5.5 orifice is optimized for
  800-bar operation; verify that pump output matches the nozzle rating to avoid
  underperformance or system overload.
• Minimum operating pressure: Ultra-high-pressure rotating
  nozzles require sufficient pressure to maintain stable rotor motion and a
  consistent spray pattern.
• System component ratings: All hoses, lances, guns, swivels,
  fittings, and safety devices must be rated for the full 11,600 PSI working
  pressure and appropriate operating temperature.
• Operator technique: Maintain proper stand-off distance and
  use smooth, overlapping passes to achieve uniform cleaning while minimizing
  the risk of surface damage.

TPR800-055 Best Practices for Use & Maintenance

• Flush the system before use: Remove debris, rust, or scale
  from hoses and plumbing before installing the rotating nozzle to protect the
  rotor assembly.
• Increase pressure gradually: Bring the system up to pressure
  smoothly to reduce shock loading and extend internal component life.
• Monitor spray performance: Changes in spray pattern,
  vibration, or noise may indicate wear or blockage and should be addressed
  promptly.
• Rinse after hot-water or chemical use: Flush thoroughly with
  clean water to prevent residue buildup and long-term component degradation.
• Follow strict safety practices: Ultra-high-pressure
  waterjetting requires appropriate PPE, including protective clothing,
  eye/face protection, and reinforced footwear.
• Store properly when idle: Protect the nozzle from impact and
  contamination by storing it in a clean, covered location.
