TPR600-065-P SS Rotating Nozzle With Plug | 8700 PSI

TPR600-065-P Stainless Steel Rotating Nozzle With Plug 8700 PSI

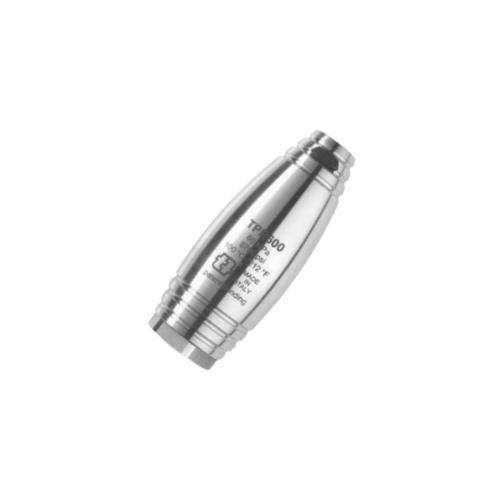

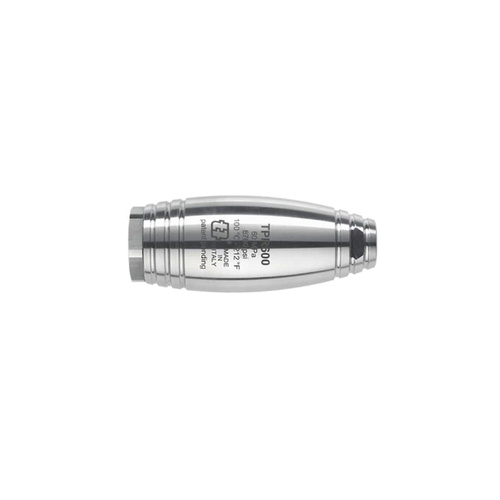

The Annovi Reverberi TPR600-065-P Rotating Nozzle is a high-flow, heavy-impact turbo nozzle
engineered for the most demanding 600-bar (8,700 PSI) industrial cleaning environments. Featuring a large
6.5 orifice size and a fully shrouded protective rubber cover, this “-P”
variant is designed to deliver maximum water volume, productive surface coverage, and enhanced safety when
working close to equipment, painted surfaces, tanks, and structural steel. Rated for water temperatures up to
212°F (100°C), the TPR600-065-P is ideal for operators who require extreme cleaning
force and fast throughput in sectors such as marine shipyards, refineries, concrete plants, steel fabrication
yards, hydro-excavation fleets, and industrial wash bays.

At the core of the nozzle is AR’s precision rotating jet assembly, which converts a concentrated 0° stream
into a fast-spinning 20° rotating cone. The high-energy impact pattern strikes the surface
repeatedly and rapidly, dramatically increasing cleaning efficiency and reducing the time required for
large-area work. With its larger 6.5 orifice, the TPR600-065-P excels at high-flow duty points, delivering
aggressive removal capability for rust, scale, marine growth, coatings, petroleum residues, and concrete
build-up. The impact-absorbing rubber cover protects both equipment and surrounding surfaces, while also
improving grip and control in wet, high-fatigue working conditions.

Key Features TPR600-065-P

• 600-bar (8,700 PSI) maximum rating: Built for extreme-duty industrial operations requiring continuous high-pressure performance.
• 6.5 orifice size: Large orifice designed for high-flow 600-bar systems, delivering maximum surface area coverage and high-impact cleaning.
• 20° rotating spray cone: Converts a single 0° jet into a high-speed rotating cone for rapid cleaning and reduced striping.
• Protective rubber cover (“-P” version): Cushions accidental impacts, protects delicate or painted surfaces, and improves operator handling.
• Stainless-steel core body: Corrosion-resistant, impact-resistant design suited for harsh industrial and marine environments.
• Hardened nozzle & seat: Wear-resistant internal components maintain spray quality and rotation consistency under high-velocity use.
• 212°F (100°C) temperature rating: Hot-water compatibility improves removal of grease, oils, and organic buildup.
• Standard 1/4″ female inlet: Universal professional connection ensures compatibility with 600-bar lances, guns, and adapters.

Construction & Design Advantages

• High-flow cleaning power: The large 6.5 orifice supports higher GPM, making this nozzle ideal for covering wide surfaces quickly without sacrificing impact.
• Impact-absorbing rubber shroud: Protects tanks, truck bodies, decks, grates, and structural steel from accidental contact during close-up work.
• Enhanced operator control: Rubberized exterior provides a firm grip, reducing slippage and fatigue during long-duty cycles.
• Precision-balanced rotor assembly: Ensures smooth rotation, consistent spray shape, and reduced vibration at full operating pressure.
• Compact and maneuverable: Short body length allows operators to reach tight spaces around frames, brackets, walkways, and machinery.
• High durability: Stainless-steel internals and rubber-protected housing resist corrosion, abrasion, and mechanical damage.

TPR600-065-P Typical Applications

• Shipyards & marine service: Removing heavy marine growth, scale, coatings, rust, and fouling from hulls, dry dock platforms, steel plating, and ballast tanks.
• Industrial plant washdown: Cleaning tanks, mixers, production floors, containment areas, and equipment frames exposed to chemical or particulate buildup.
• Concrete & construction operations: Removing concrete residue, mud, paint, and hardened contaminants from forms, tilt panels, slabs, and jobsite equipment.
• Hydro-excavation & vacuum trucks: Cleaning debris tanks, suction booms, tools, reels, and spill aprons; rubber shroud minimizes damage to painted truck surfaces.
• Fleet & heavy equipment washing: Stripping mud, grease, hydraulic oil, and road film from loaders, dump trucks, excavators, sweepers, and waste-management vehicles.
• Refineries & petrochemical plants: Removing hydrocarbons, soot, scale, and corrosion deposits from structural steel, pipe racks, vessels, and process equipment.

Performance & Sizing Guidelines

• Flow pairing: The 6.5 orifice is engineered for high-GPM 600-bar pumps—verify PSI/GPM pairing using nozzle charts for precise system matching.
• Minimum operating pressure: Typically requires 2,000–2,200 PSI to initiate proper rotation; insufficient pressure may result in a straight, non-rotating jet.
• Coverage vs. impact: Larger nozzle size provides a significantly wider cleaning path, improving productivity on large surfaces while maintaining strong mechanical cutting ability.
• System compatibility: All hoses, guns, fittings, quick-connects, and lances must be rated for 600 bar (8,700 PSI) and 212°F.
• Operator efficiency: Maintain steady, overlapping passes for even cleaning results and optimal impact distribution across wide areas.

Best Practices for Use & Maintenance

TPR600-065-P SS Rotating Nozzle 8700 PSI

• Flush lines before use: Remove debris, scale, or rust particles with a fan nozzle before installing the rotating nozzle.
• Ramp pressure gradually: Avoid rapid trigger pulls; smooth pressurization reduces stress on internal rotor and seat components.
• Monitor spray pattern & behavior: Variations in sound, rotation speed, cone shape, or vibration indicate wear or blockage requiring inspection.
• Rinse after chemical exposure: Flush thoroughly to prevent chemical residues from damaging stainless or rubber components.
• Store carefully: Use a protective cap or storage compartment to prevent orifice damage and contamination inside the rubber shroud.
