TPR800-05 Stainless Steel Rotating Nozzle | 11,600 PSI Extreme Duty

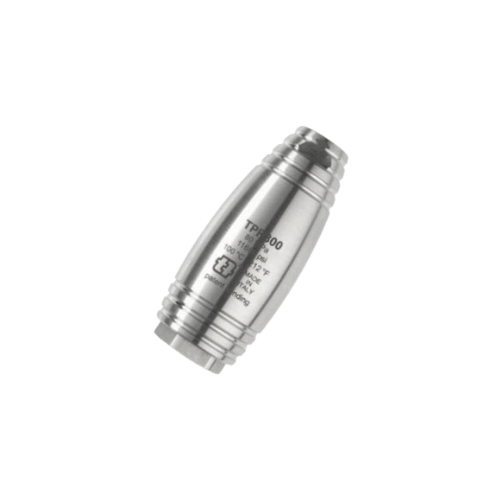

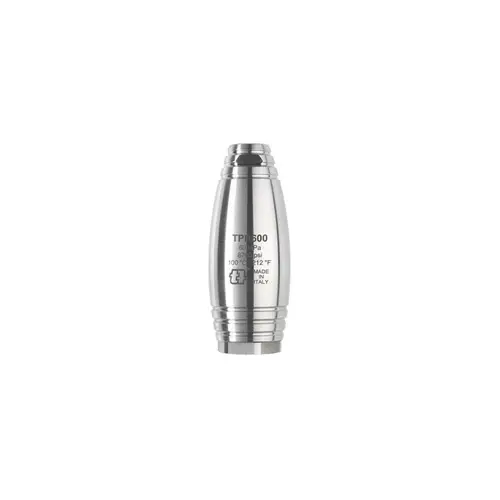

The AR North America TPR800-05 Rotating Nozzle is a professional,
ultra-high-pressure turbo nozzle engineered for demanding industrial and marine
cleaning applications. Part of AR’s 800-bar nozzle series, it is rated for up to
11,600 PSI and supports water temperatures up to
212°F (100°C), making it well suited for aggressive cleaning,
degreasing, and surface preparation in harsh operating environments.

With a 5.0 orifice size, the TPR800-05 delivers a balanced
combination of flow and impact. It provides sufficient water volume for efficient
surface coverage while maintaining concentrated cutting force for removing heavy
deposits. Internally, a precision-engineered rotor converts a focused 0° jet into
a fast-spinning 20° rotating spray cone, producing thousands of
high-energy impacts per minute. This rotating action dramatically improves
cleaning speed and efficiency compared to fixed spray tips, making it ideal for
rust, coatings, scale, concrete residue, oil film, and other stubborn industrial
contaminants.

TPR800-05 Key Features

• 800-bar / 11,600 PSI rating: Designed for ultra-high-pressure
  systems used in refineries, shipyards, tank cleaning, infrastructure
  maintenance, and heavy equipment washdown.
• 5.0 orifice size: Provides an effective balance between
  high-flow coverage and concentrated impact pressure for aggressive material
  removal.
• 20° rotating spray cone: Transforms a narrow jet into a
  rotating cone, multiplying impact frequency and improving cleaning speed and
  surface uniformity.
• Stainless steel construction: Highly resistant to corrosion,
  saltwater exposure, chemicals, and abrasive particulates commonly encountered
  in industrial environments.
• Hardened nozzle and seat internals: Built for long service
  life under extreme pressure and flow conditions, even with contaminated or
  abrasive water.
• Hot-water capable: Rated up to 212°F (100°C) to improve
  effectiveness against grease, oil, and organic residues when used with heated
  wash systems.
• 1/4″ female inlet: Standard industrial thread compatible with
  professional 800-bar lances, guns, and fittings.
• Vertical-start rotor design: Ensures smooth startup,
  consistent rotation, and reliable spray performance across repeated duty
  cycles.

Construction & Design Advantages

• Balanced flow-to-impact performance: The 5.0 orifice delivers
  strong mechanical cleaning force while maintaining efficient coverage,
  providing versatility across a wide range of heavy-duty applications.
• High-efficiency rotating jet: Repeated, high-frequency
  impacts concentrate energy on the surface, accelerating removal of thick
  coatings, rust, scale, concrete residue, and industrial buildup.
• Durability in harsh environments: Stainless steel body and
  hardened internals withstand saltwater, chemicals, thermal stress, and
  mechanical wear common in shipyards, refineries, and outdoor industrial sites.
• Hot-water and chemical compatibility: Supports a wide range
  of industrial cleaning methods, including degreasing, oil removal, and heavy
  chemical washdowns.
• Compact professional form factor: Standard inlet size and
  nozzle profile allow easy integration into existing ultra-high-pressure
  systems without special adapters.

Typical Applications

• Shipyards and marine maintenance: Removal of rust, coatings,
  marine growth, and scale from hulls, decks, tanks, piers, and structural steel
  exposed to saltwater environments.
• Industrial plant and refinery cleaning: Cleaning vessels,
  pipe racks, platforms, and containment areas contaminated with oil, soot,
  chemical deposits, and scale.
• Steel fabrication and surface preparation: Removing mill
  scale, weld slag, rust, and old coatings from fabricated steel prior to
  inspection, coating, or assembly.
• Tank and vessel cleaning: Internal and external cleaning of
  storage tanks, silos, process vessels, and clarifiers with heavy sludge or
  residue buildup.
• Concrete and infrastructure maintenance: Cleaning bridge
  decks, slabs, precast panels, piers, and industrial floors before repair,
  resurfacing, or recoating.
• Heavy equipment and fleet washing: Removing compacted mud,
  grease, hydraulic fluids, and industrial grime from trucks, trailers,
  excavators, loaders, and specialty equipment.
• General industrial washdown and surface prep: High-pressure
  cleaning and degreasing in fabrication shops, maintenance yards, chemical
  plants, and wash bays.

Performance & Sizing Guidelines

• Flow and pressure matching: Verify pump output matches the
  5.0 orifice size at 800 bar to achieve optimal cleaning performance without
  overloading the system.
• Minimum rotation pressure: Adequate system pressure is
  required to initiate and maintain stable rotor motion for consistent spray
  performance.
• Coverage versus cutting force: The 5.0 orifice offers a wide
  cleaning path with strong impact, making it a practical choice for
  medium-to-large surface areas.
• System compatibility: All hoses, lances, guns, fittings, and
  safety components must be rated for the full 11,600 PSI and appropriate
  operating temperatures.
• Operator technique: Use smooth, overlapping passes and
  maintain consistent stand-off distance to achieve uniform results and reduce
  wear.

Best Practices for Use & Maintenance

• Flush the system before use: Remove debris, rust, or scale
  from lines before installing the nozzle to protect the rotor and nozzle seat.
• Increase pressure gradually: Bringing pressure up smoothly
  reduces mechanical shock and extends nozzle and system life.
• Monitor spray performance: Changes in spray pattern, noise,
  or vibration may indicate wear or blockage and should be addressed promptly.
• Rinse after chemical or hot-water use: Flush thoroughly with
  clean water to prevent residue buildup and long-term component degradation.
• Follow proper safety procedures: Ultra-high-pressure
  water-jetting requires full PPE, including protective clothing, eye and face
  protection, and reinforced footwear.
• Store properly when not in use: Protect the nozzle from
  impact, contamination, and damage by storing it in a clean, covered location.
